Bellima

Fixed bale chamber

Bellima

Round balers

Buying a Bellima means tapping into KRONE's vast experience and expertise gained in decades of baler manufacturing. Our round balers operate around the world and have proven excellently in a wide variety of conditions. In addition to producing high-density bales, Bellima is extremely robust, simple by design and perfectly specified for great reliability.

  • The fixed chamber baler with simple design
  • Low dead weight
  • Net and/or twine wrapping
  • Chain-and-slat elevator for smooth & efficient operation
  • The enclosed bale chamber minimizes fragmentation

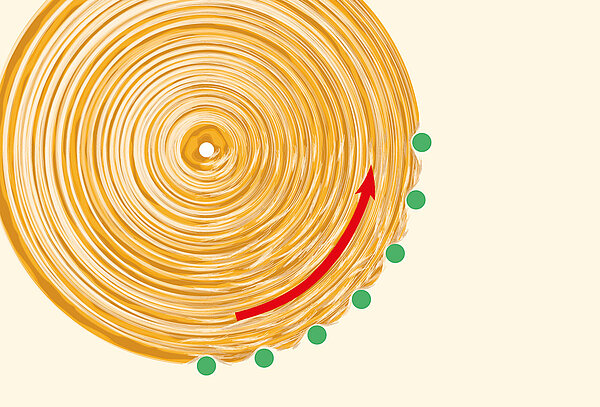

  • Elevator slats mesh with the crop for effective bale roll

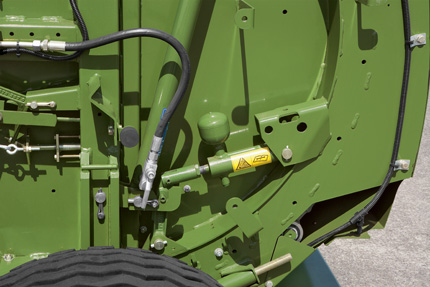

  • The mechanical rear door saves the hydraulic system

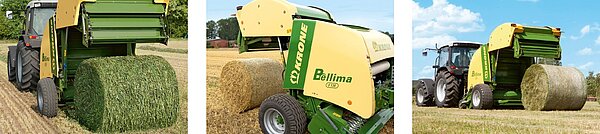

  • Versatile machine for all types of crop
  • Simple, low-maintenance design
Please accept marketing-cookies to see this content.

Product video

KRONE Bellima

Buying a Bellima means tapping into KRONE's vast experience and expertise gained in decades of baler manufacturing. Our round balers operate around the world and have proven excellently in a wide variety of conditions. In addition to producing high-density bales, Bellima is extremely robust, simple by design and perfectly specified for great reliability.

Product features

Bellima - KRONE round balers
Bellima - KRONE round balers
  • KRONE pick-up for a perfect forage flow and smooth running
  • KRONE pick-up with packer for ideal filling of the bale chamber
  • KRONE slat and chain conveyor for every application
  • KRONE twine tying or net wrapping the correct wrapping material for every customer

Buying a Bellima means tapping into KRONE's vast experience and expertise gained in decades of baler manufacturing. Our round balers operate around the world and have proven excellently in a wide variety of conditions. In addition to producing high-density bales, Bellima is extremely robust, simple by design and perfectly specified for great reliability.

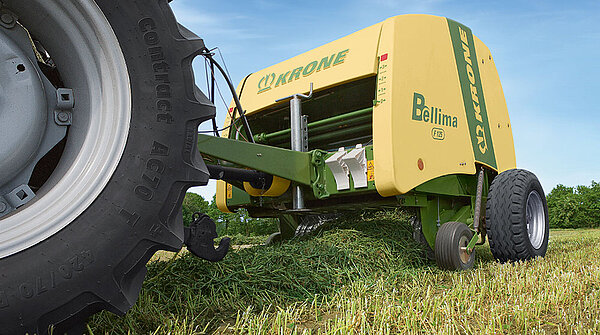

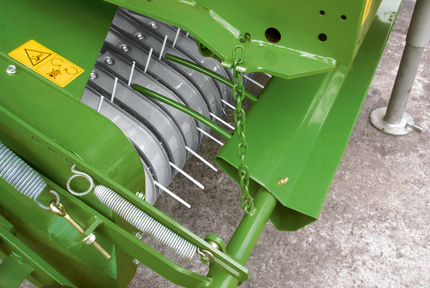

The KRONE pick-up on Bellima F 125
The KRONE pick-up on Bellima F 125
  • Clean gathering of the material
  • Precise working height adjustment
  • Continuous crop flow
  • Quieter running
  • Heavy-duty design

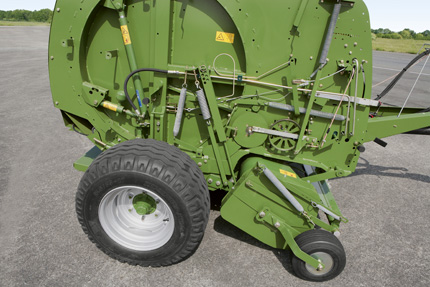

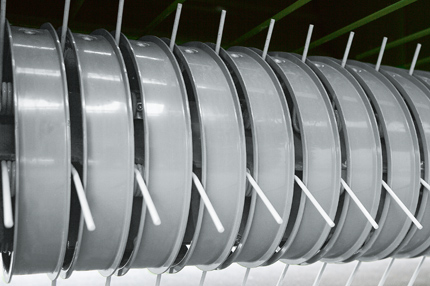

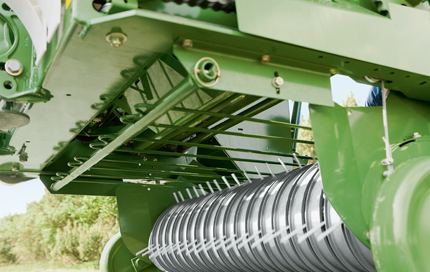

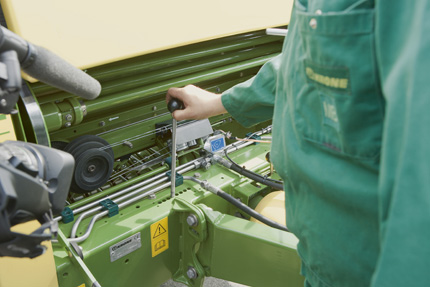

The KRONE round baler Bellima has a compact pick-up. Small in diameter and operating near the bale chamber, the pick-up has four rows of tines and an adjustable crop press roller for high-efficiency operation, feeding even short and wet crops in a consistent flow into the chamber, which is the first step in the production of  uniform bales. The work depth is set by refitting a pin. Contouring is provided by height-adjustable gauge wheels.

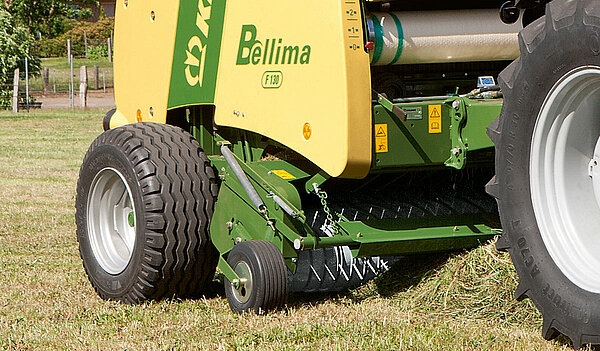

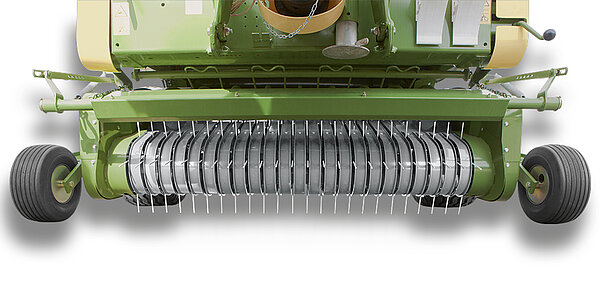

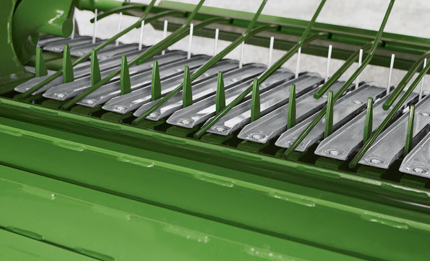

The KRONE pick-up with packers on Bellima F 130
The KRONE pick-up with packers on Bellima F 130
  • Ideal 1.80 m (5'11") work width for biggest swaths
  • Packers ensure a consistent crop flow

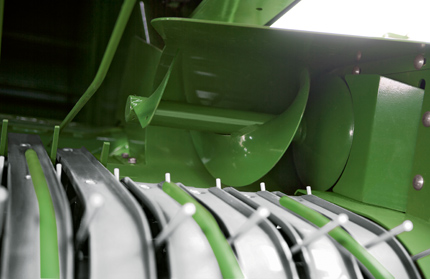

  • Augers on the sides optimize the material flow
  • Pneumatic gauge wheels provide quiet running

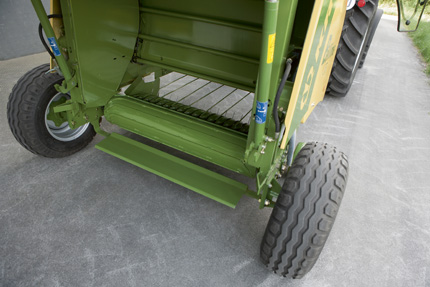

The extra wide pick-up with packer is standard specification on Bellima F 130. Arranged close to the tines and to the starter roller inside the bale chamber, the packer tines ensure  a consistent flow of the crop even in short chops, boosting intake capacity and productivity.

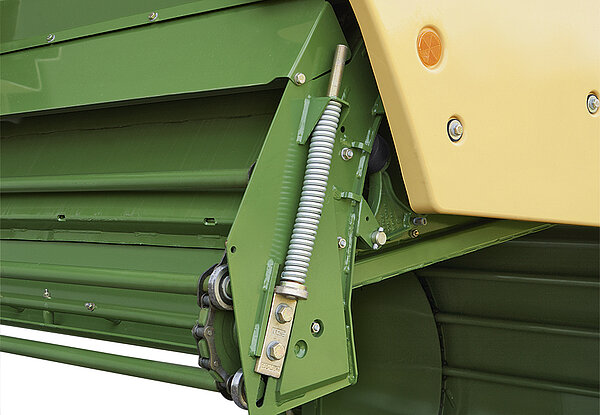

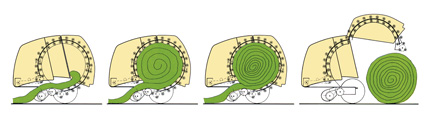

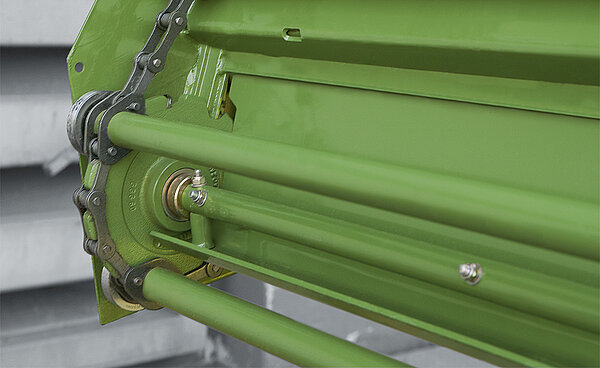

The KRONE chain-and-slat elevator
The KRONE chain-and-slat elevator
  • Constant bale diameter of of 1.20 m
  • Safe bale drive, no bale stood still, fewer rolling losses
  • Low power requirement

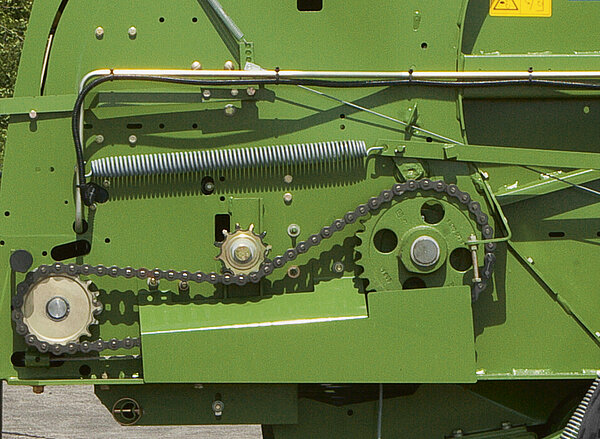

  • Simple design, only one drive chain

The concept of the slat and chain conveyor has proven extremely well in silage, hay and straw harvesting around the world. The endless slat and chain conveyor forms bales of extremely high densities, exerting a firm grip on the bale and ensuring a constant roll – even in short and dry material. In addition, there are fewer rolling losses and last but not least the low power requirement.

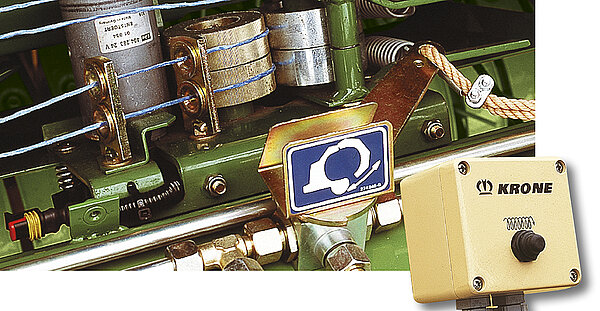

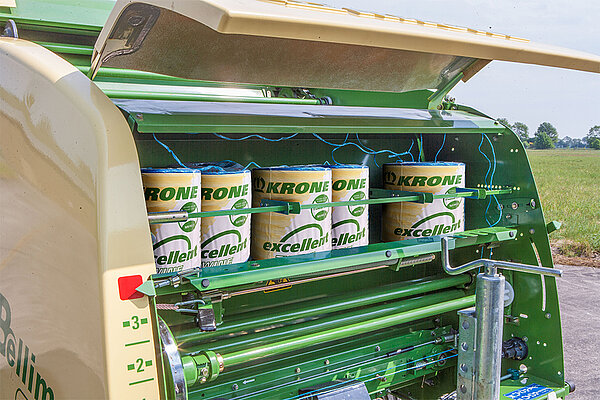

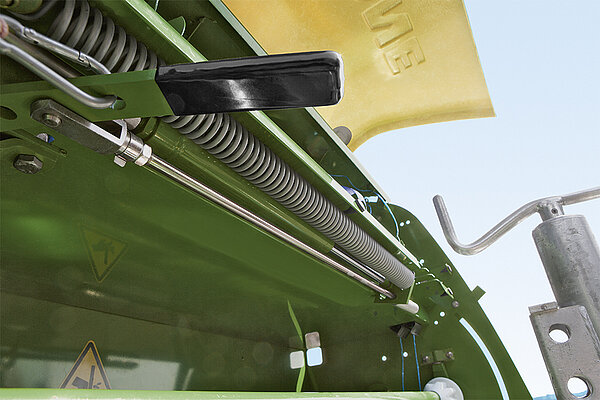

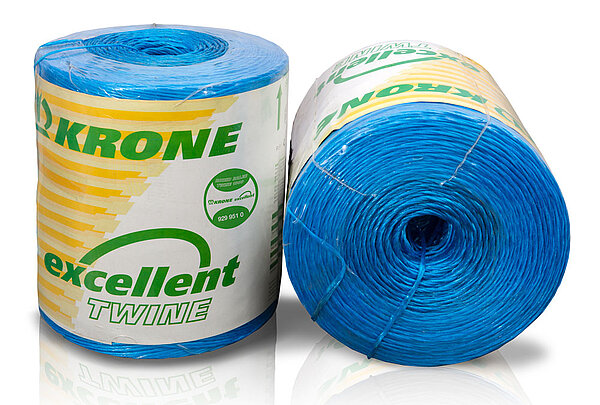

The KRONE double twine tying system
The KRONE double twine tying system
  • Two threads cut down on the wrapping cycle
  • Well-shaped bales as tying starts / ends in the middle of the bale
  • Selectable thread spacing
  • Very easy-to-use system

A twin twine tying system cuts down on machine downtime, increases output per hour, saves on fuel and labour cost and increases your output and productivity. The KRONE twin twine tying system places the twine ends in the middle of the bale and not on the edges. So the bales will not lose shape as they are handled several times over.

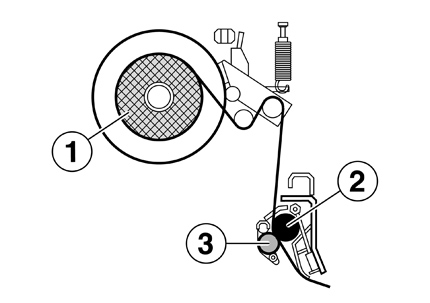

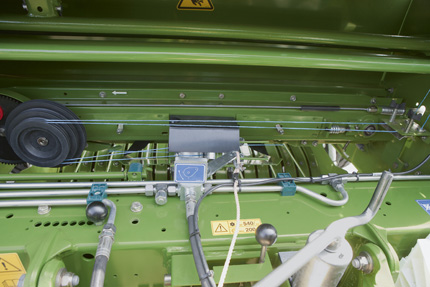

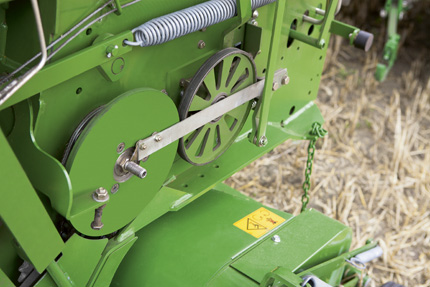

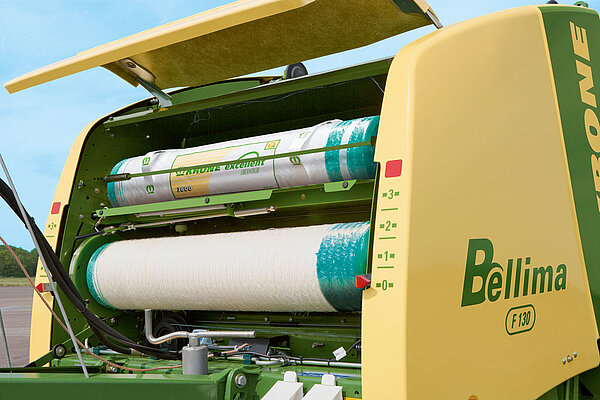

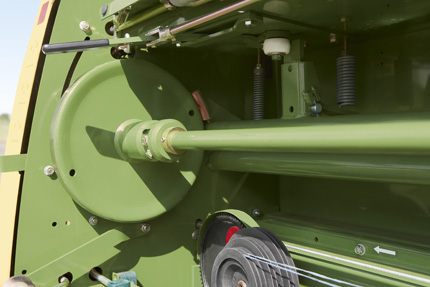

KRONE net wrapping
KRONE net wrapping
  • Short baling cycles for more bales per hour
  • Bales break up quickly and easily in animal buildings

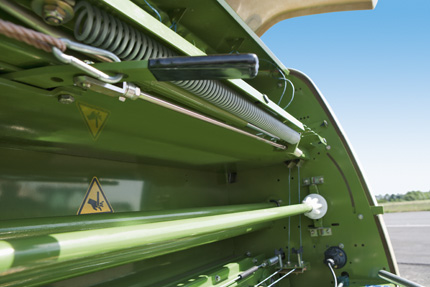

  • Effective start of the wrapping cycle, short feed distances

The net wrapping system is straightforward by design and offers superior functionality. Net wrapping is faster than twine tying so boosting your hourly throughputs. Higher throughputs free up time for other jobs and cut fuel consumption per bale.

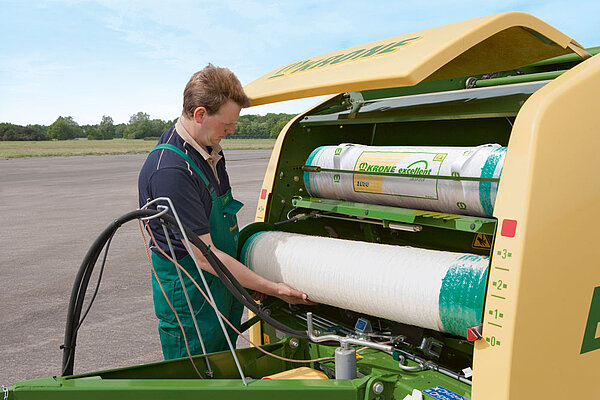

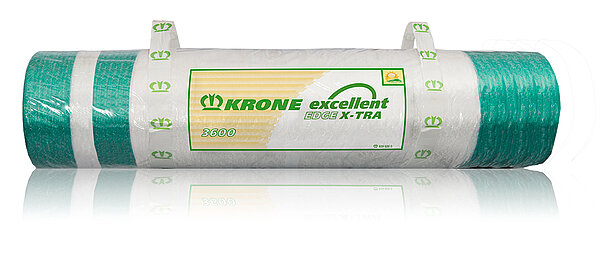

The net wrap system accepts KRONE excellent net rolls with a total net length of up to 3,000 m (11,811').

Models

Bellima
Bellima F 125 Bellima F 130
Bale size (m, Ø x width) 1.20 x 1.20 1.20 x 1.20 configure
Bale chamber fixed fixed configure
Machine dimensions (m, L x W x H) 3.70 x 2.25 x 1.97 3.70 x 2.25 x 1.98 configure
Pick-up working width (m) 1.40 1.80 configure
Power requirement (kW/hp) 25 / 34 25 / 34 configure
configure configure

Extremely robust, simple by design and perfectly specified for great reliability
