EasyCut F

Front-mounted disc mowers

EasyCut F

Disc mowers

The EasyCut F model range is a line-up of innovative front mowers with or without tine or roller conditioner and work widths of 2.71 m to 4.04 m. At the same time, the range comprises particularly compact and light-weight front mowers for mountain fields and applications. Top hats are available for some models. These form narrow swaths that the tractor can straddle.

  • 2.71 m-4.04 m work widths
  • Push-type or Pull-type cutterbar
  • Available with or without conditioner
  • Compact M models
  • Models with powered top hats

Product video

KRONE EasyCut F – Front-mounted disc mowers

The EasyCut F series includes innovative front mowers with working widths from 2.71 m to 3.60 m, with optional tine or roller conditioner. The EasyCut M front mowers are our lightweight machines designed for operation on steep slopes and for spreading material across the work width. Their hitch points are configured to attach as well to small tractors for special applications.

Product features

Rugged and easy use, tried and tested around the world
  • Quick-change blades
  • SafeCut: Individually protected discs
  • SmartCut: Stripeless cuts from optimum blade overlaps
  • Available conditioner versions: CV version with V steel tines or CR version with polyurethane rollers or M-Rolls
  • Compact M models
  • Models with powered top hats

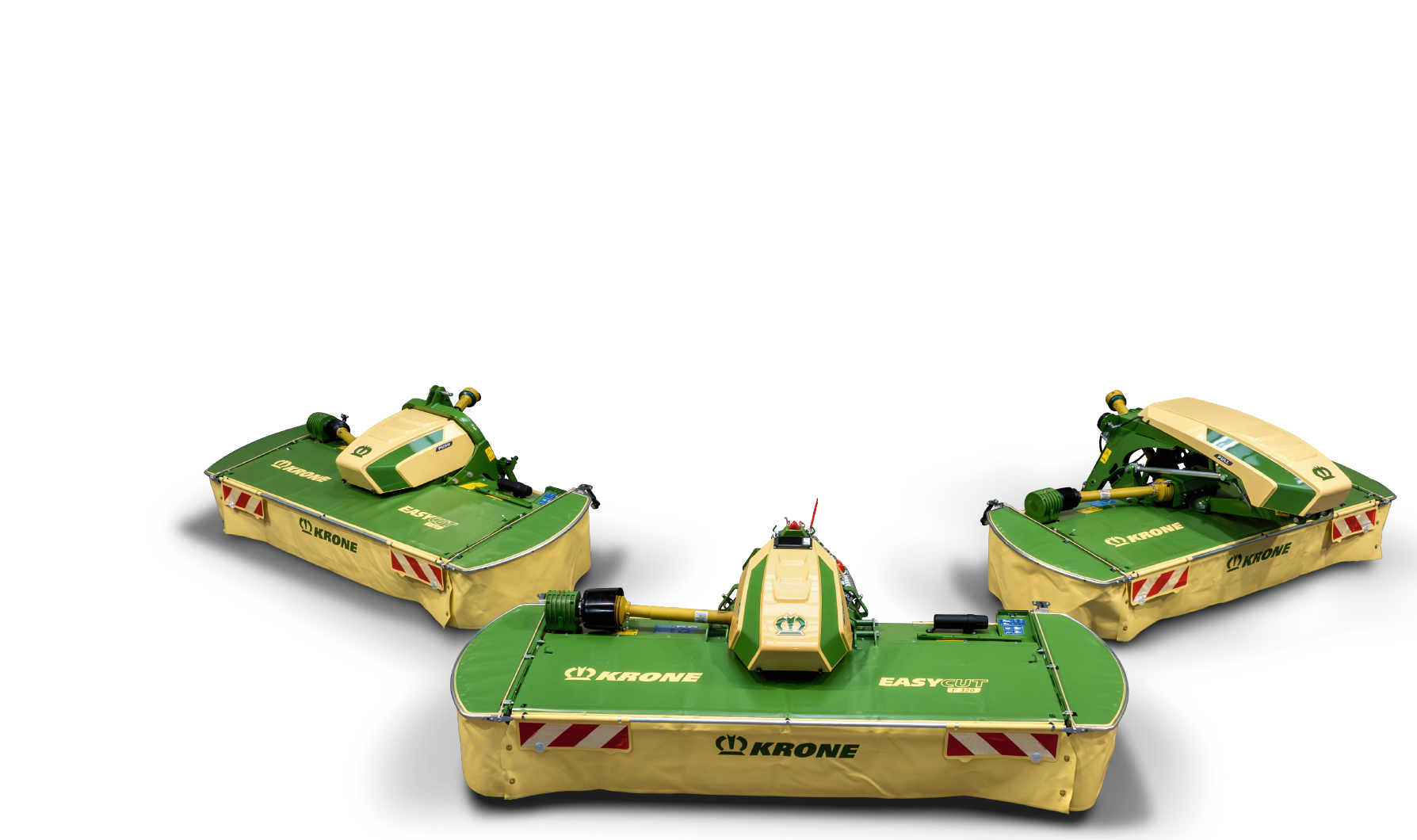

The EasyCut F model range
  • 2.71 m-4.04 m work widths
  • Push-type or Pull-type cutterbar
  • Available with or without conditioner
  • Compact M models
  • Models with powered top hats

The EasyCut F model range is a line-up of innovative front mowers with or without tine or roller conditioner and work widths of 2.71 m to 4.04 m. At the same time, the range comprises particularly compact and light-weight front mowers for mountain fields and applications. Top hats are available for some models. These form narrow swaths that the tractor can straddle.

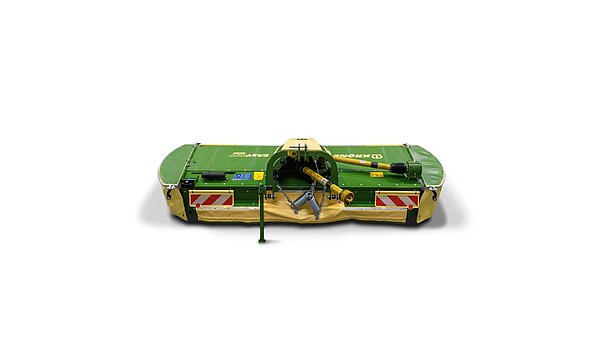

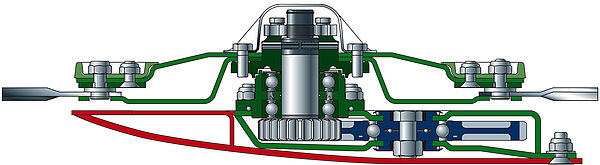

The KRONE cutterbar

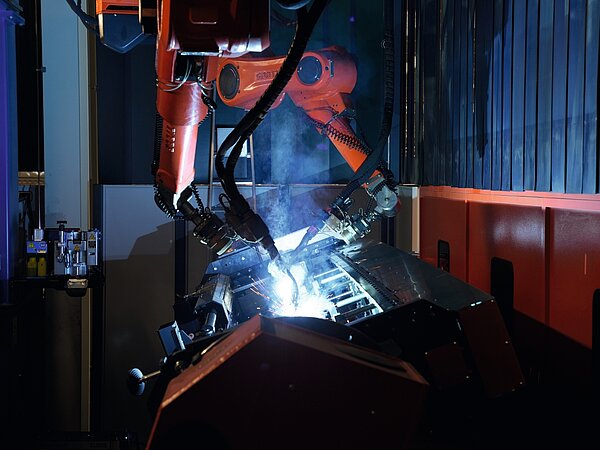

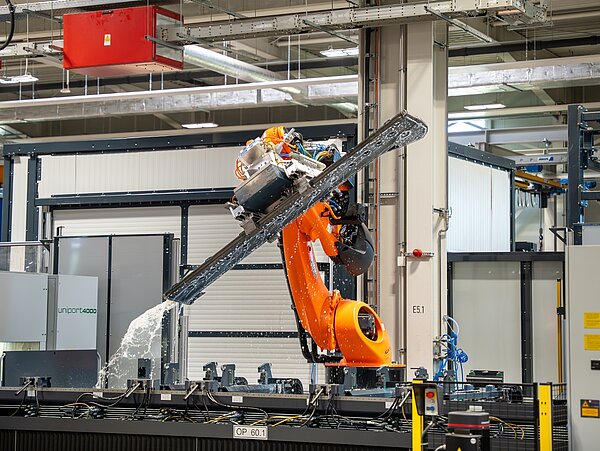

  • Fully welded: Robust, sealed and permanently lubricated

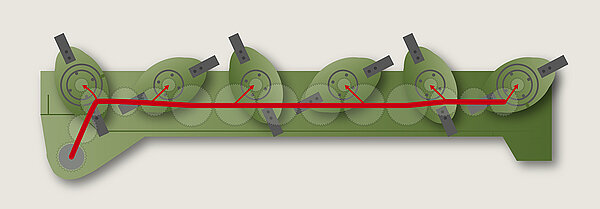

  • The durable satellite drives have massive spur gears for quiet running and superior efficiency
  • No inner shoe for trouble-free cutting

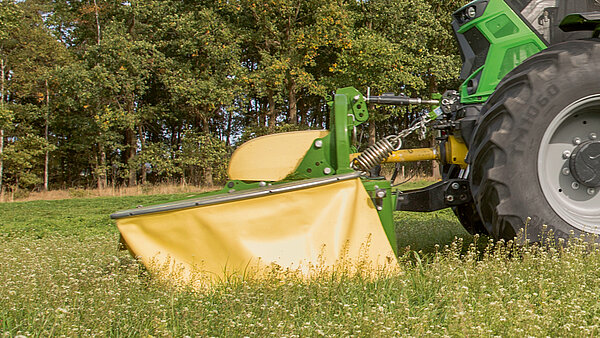

The enclosed and fully welded cutterbar meets the highest quality standards and operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress by very quiet and reliable running in sustained peak-load operation.

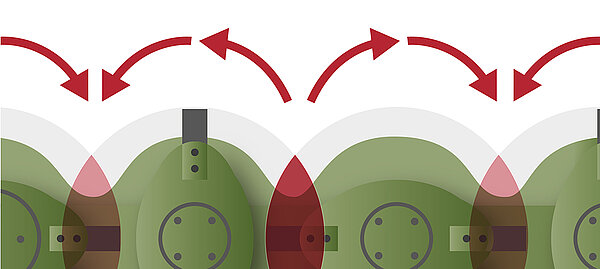

KRONE SmartCut for a perfect spread
  • The wedge-shaped cutterbar guarantees clean cuts
  • Heavy-duty spur gears run in widely-spaced double bearings

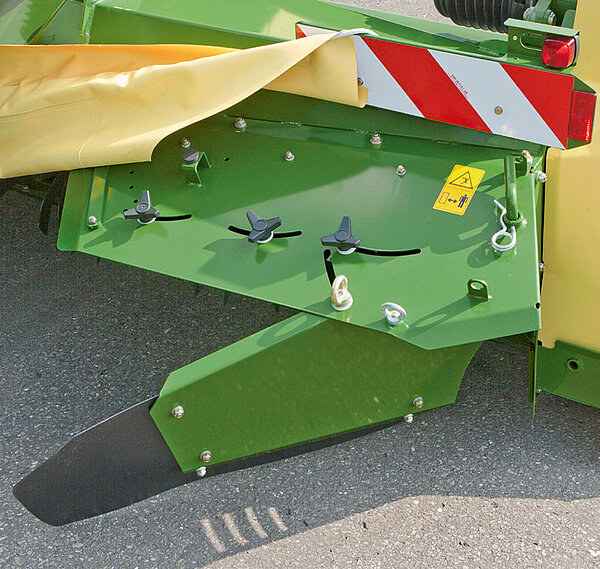

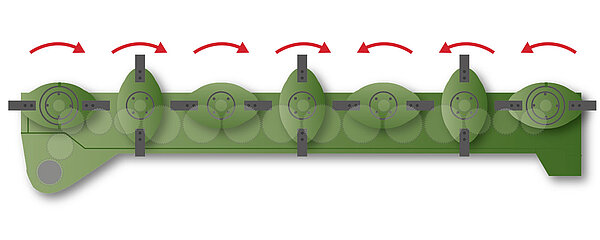

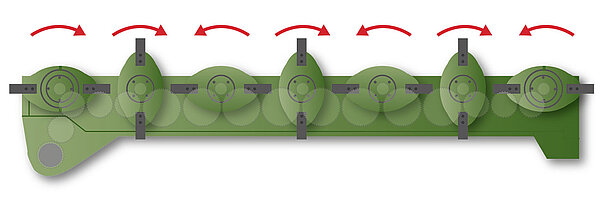

  • Swathing or spreading depending on needs

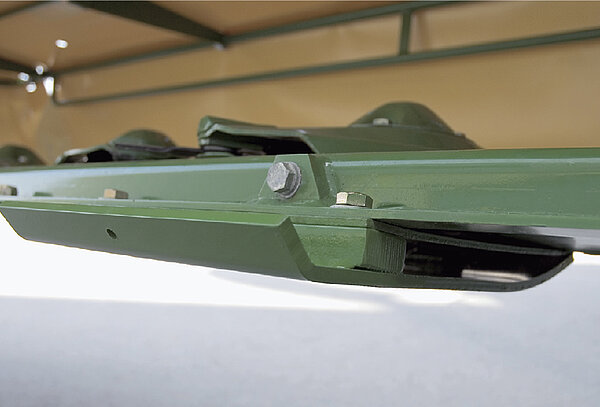

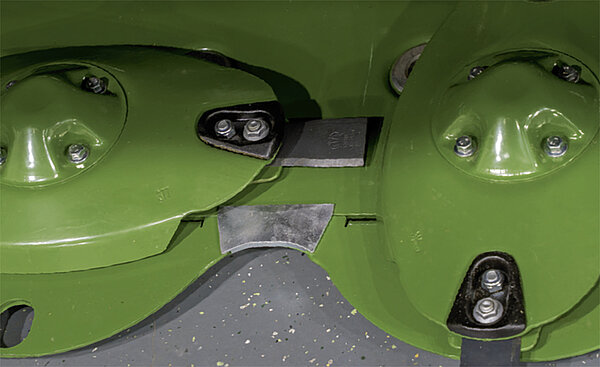

The wedge-shaped cutterbar offers great flexibility to adjust through a large range of settings and leave a short stubble in meadows and pastures as well as long stubble in long-stemmed field crops. An EasyCut mower delivers a reliable performance and clean cut.

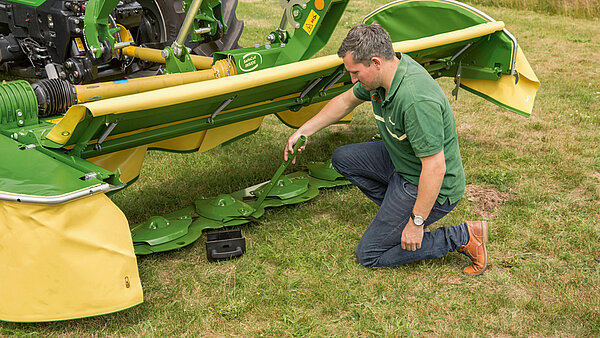

The KRONE quick-change blade system

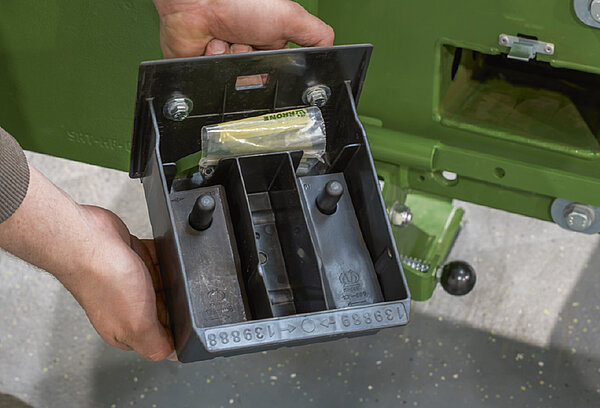

  • Quick-change blades allow operators to swap blades in the field quickly
  • Modular disc design
  • Minimum blade wear: 360° blade action
  • Excellent cuts from KRONE SmartCut: Optimum blade overlap

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect disc arrangement for stripeless cuts.

The KRONE SafeCut system
  • Full driveline protection for added reliability
  • Neighbouring discs will not collide
  • Wear-free
  • Quick-change roll pins for minimum downtime and costs

Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers a maximum of protection and peace of mind. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is a base specification feature on all EasyCut F models.

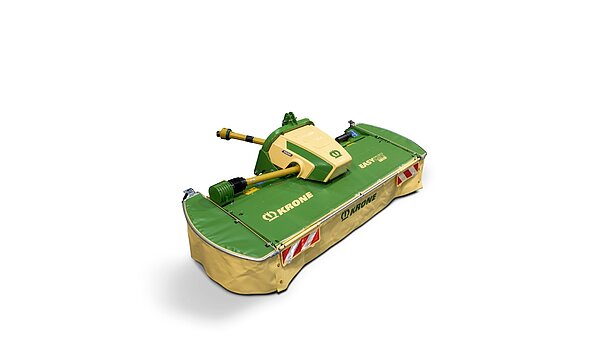

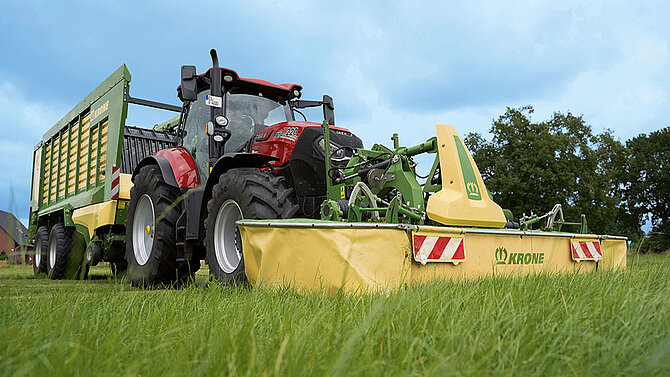

EasyCut F 320 M · F 360 M · F 320 Push

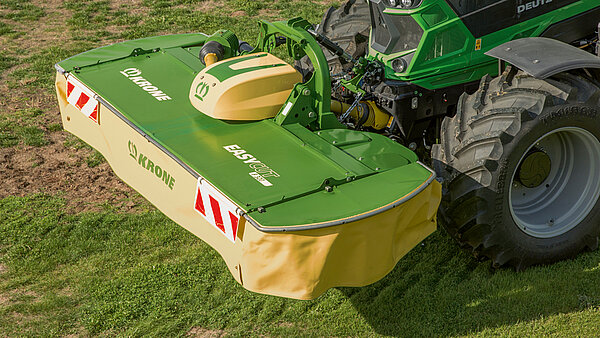

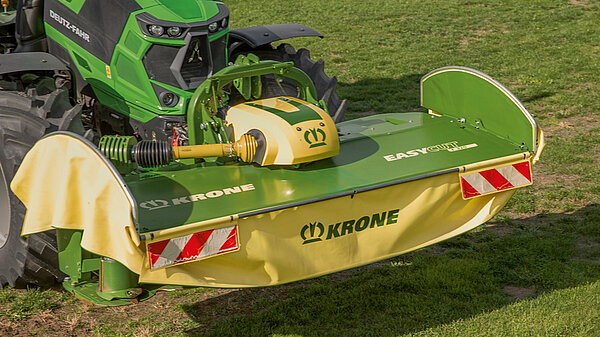

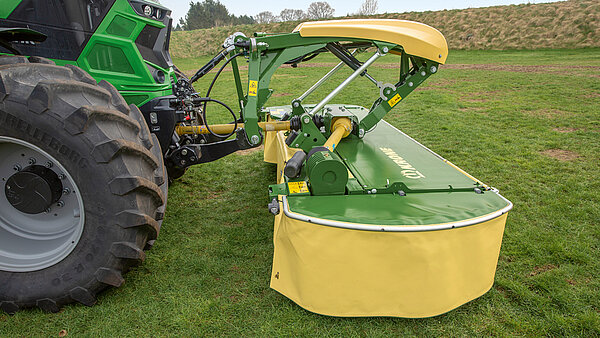

  • Close attachment to the tractor and compact on the road

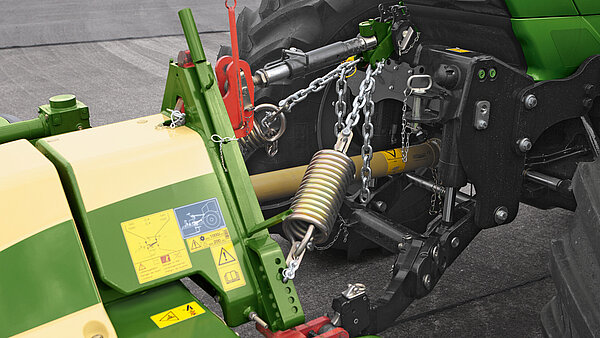

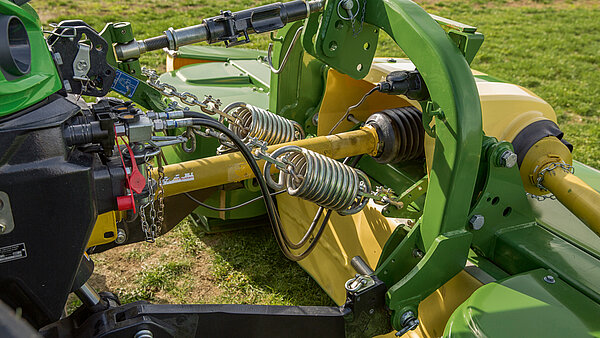

  • Adjustable ground pressure

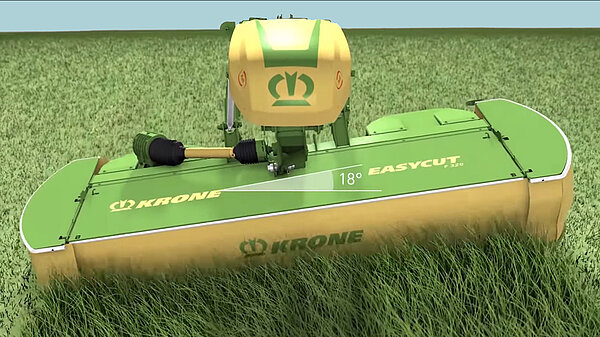

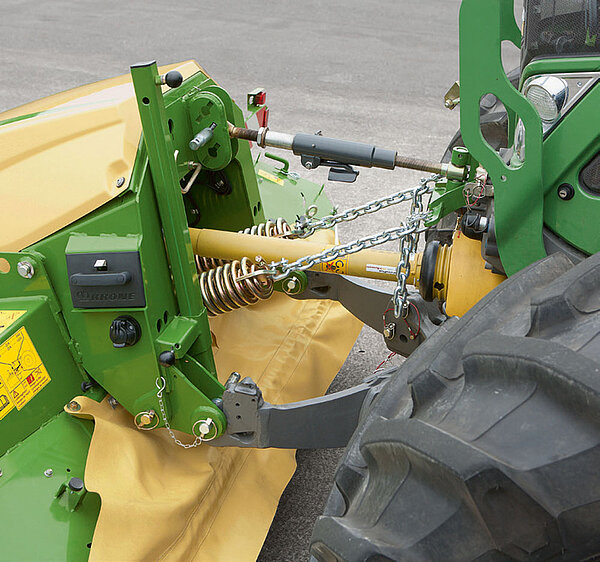

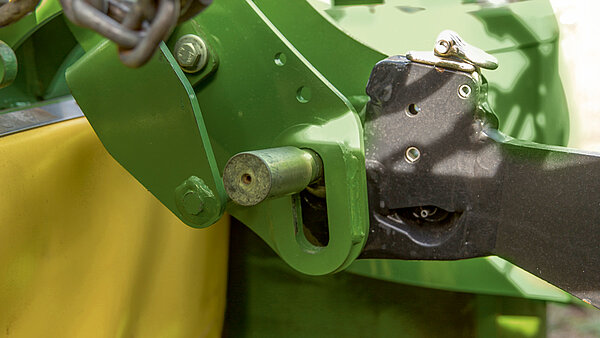

  • Perfect contouring, three-dimensional pivoting
  • SmartCut and SafeCut cutterbars

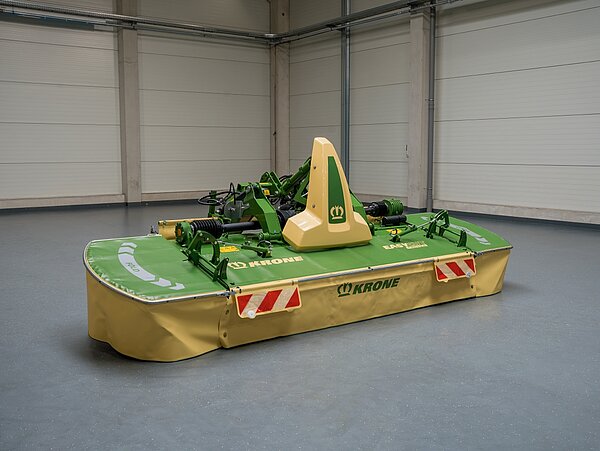

Attaching to the link arms without A-frame, the EasyCut PUSH models are light-weight and compact and have stretched curtains. All EasyCut cutterbars are permanently lubricated and feature SmartCut and SafeCut.

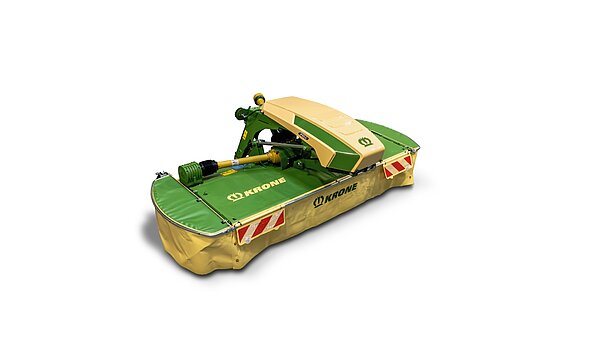

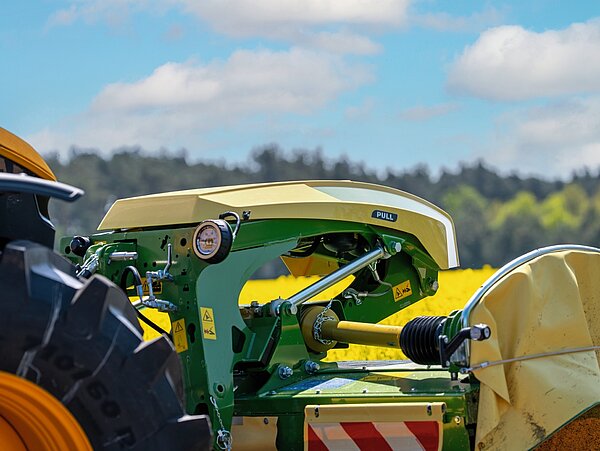

EasyCut F 320 M · F 360 M · F 320 Pull

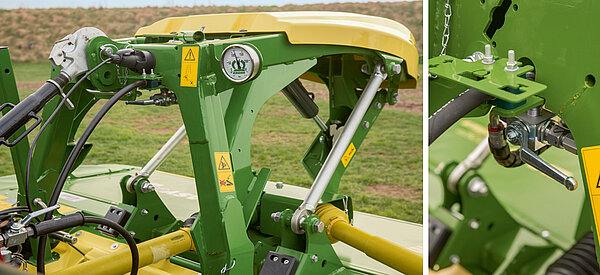

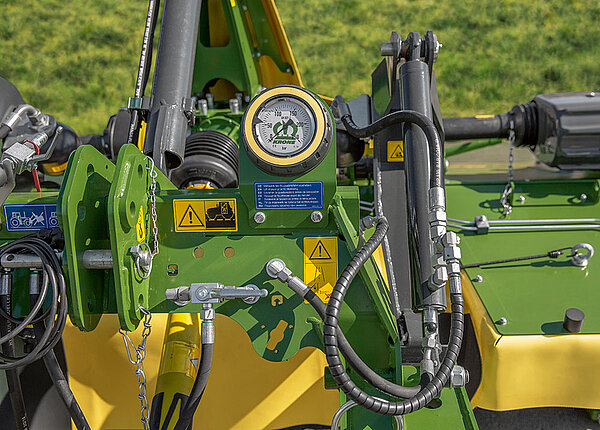

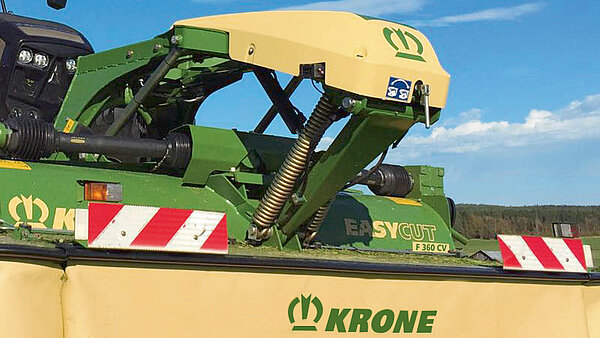

  • For standard-fit hydraulic suspension

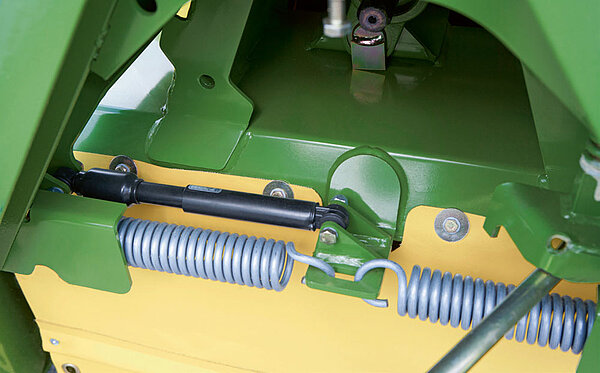

  • Convenient ground pressure adjustment from the cab

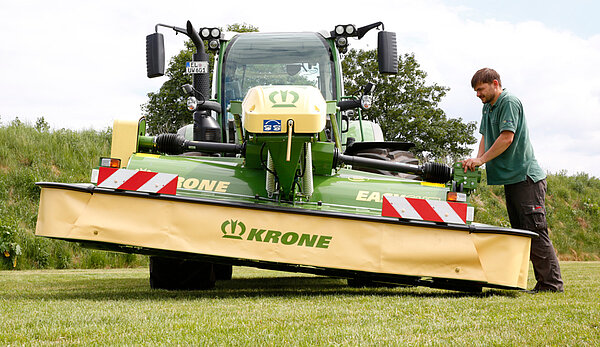

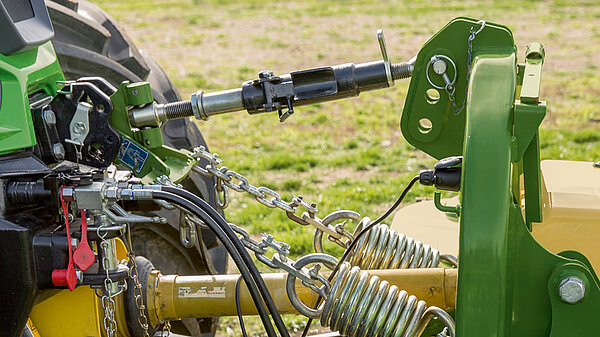

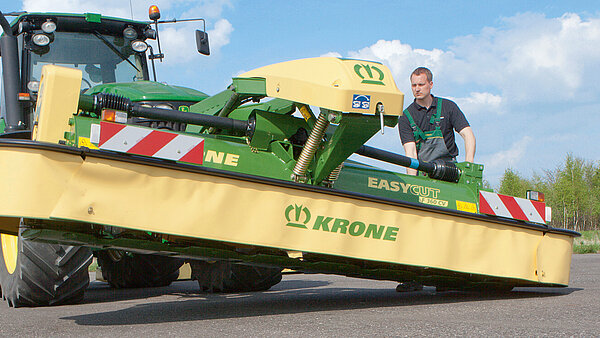

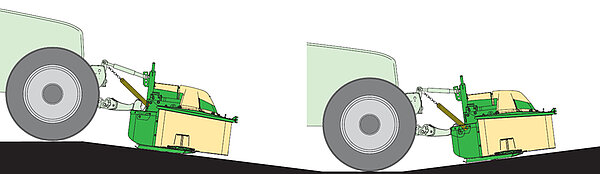

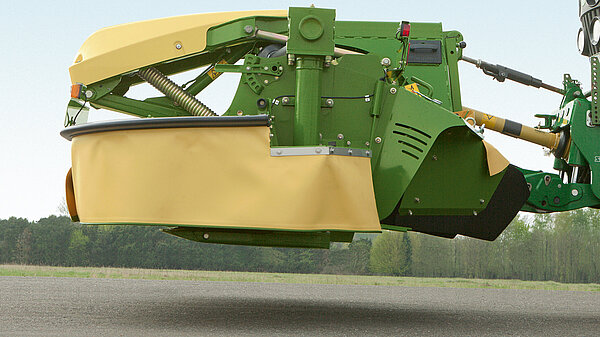

  • Perfect contouring from generous up- and rearward travel

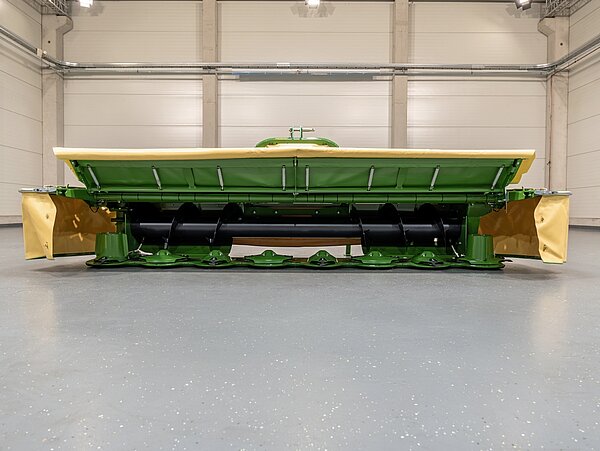

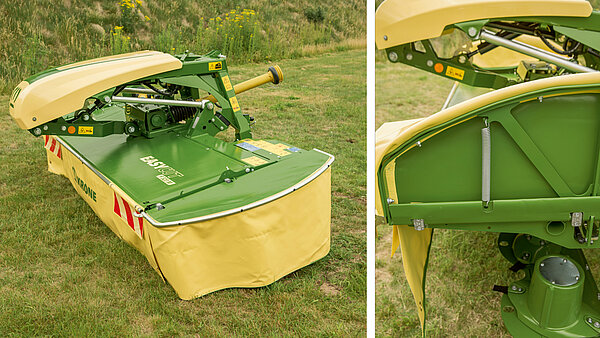

  • Front guards open wide for convenient servicing

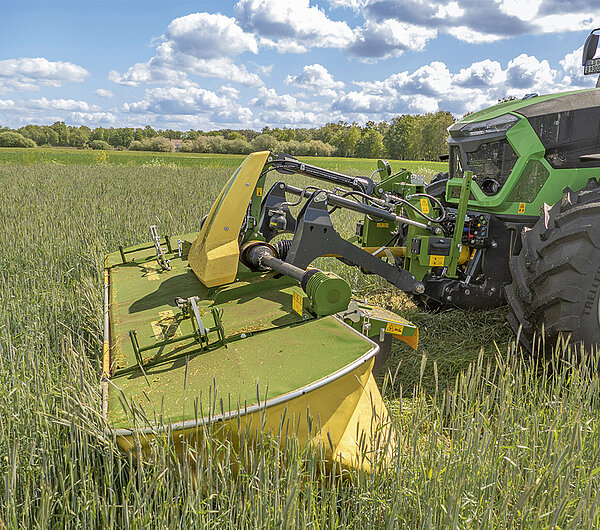

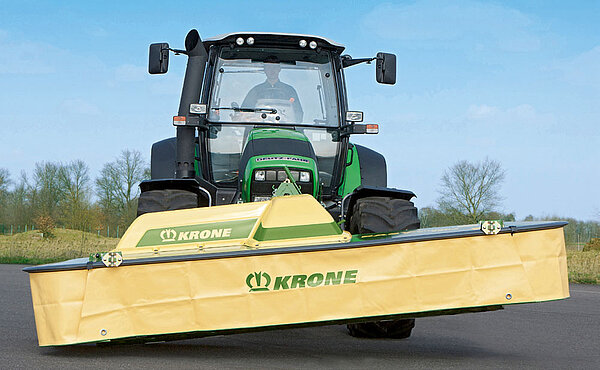

KRONE front mowers with PULL headstocks are the perfect machines to cut extremely undulating terrain. Whether cutting flat or hilly land, they stand out for their enormous agility and generous up- and rearward travel.

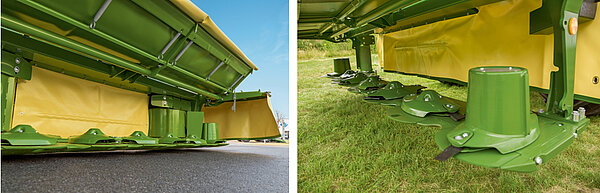

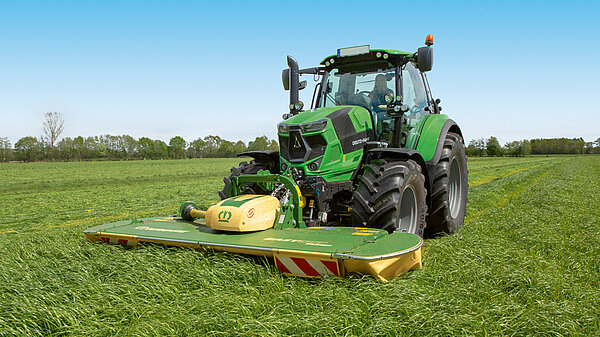

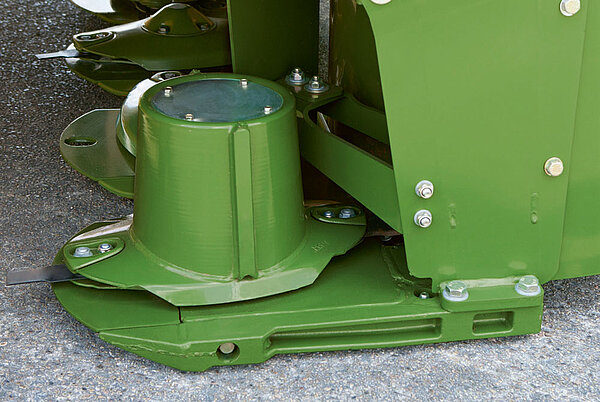

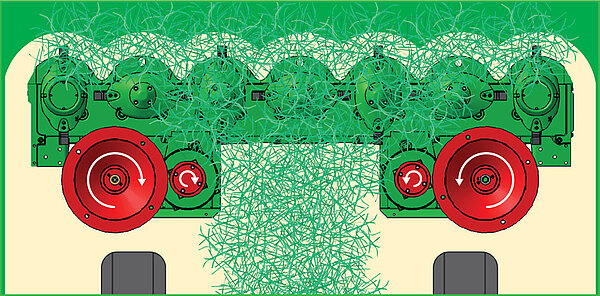

EasyCut F 280, F 320, F 360: Powered top hats
  • Powered top hats present the swath between the tractor wheels
  • Uniform swath presentation
  • Continuous crop flow

The KRONE EasyCut F 280 and F 320 and stand out for their massive top hats which mount behind the discs on either end of the cutterbar. Driven from within the cutterbar, they provide a consistent flow of crop to the centre of the machine so that the tractor wheels will not run on the fluffy swath and the harvester will pick up the material without losses.

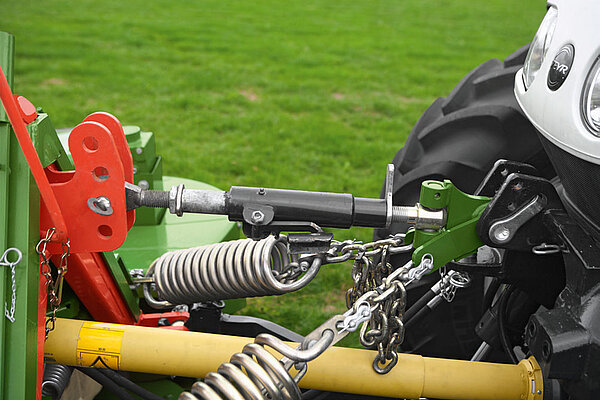

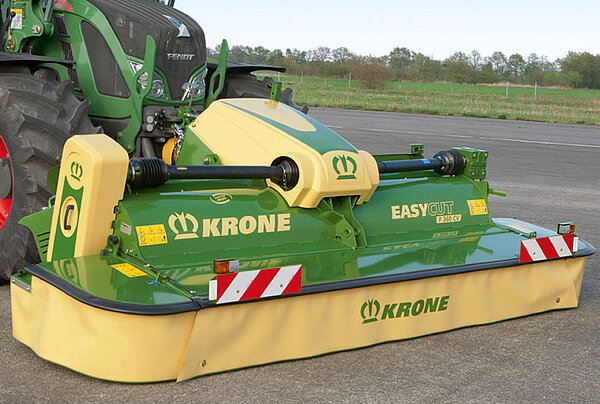

EasyCut F 280, F 320, F 360: The pushed design
  • A compact combination
  • Generous pivoting range
  • Optional telescoping top link
  • No hydraulics

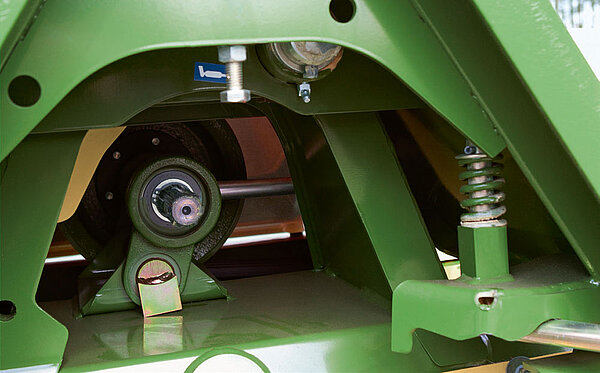

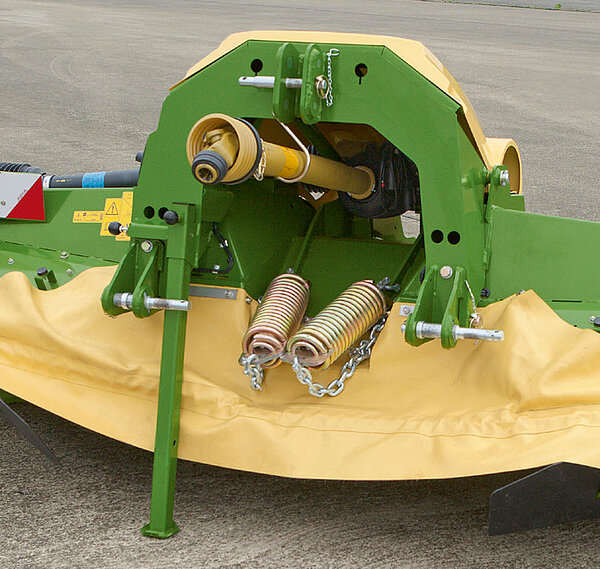

The front-mounted KRONE mowers stand out for easy handling, a straightforward design and superior functionality. The pushed version is compact in size and low in weight. Suspended by a pivoting headstock in its centre of gravity and close to the tractor's front wheels, the unit benefits from very little travel for perfect cuts, uncontaminated forage and fast re-growth.

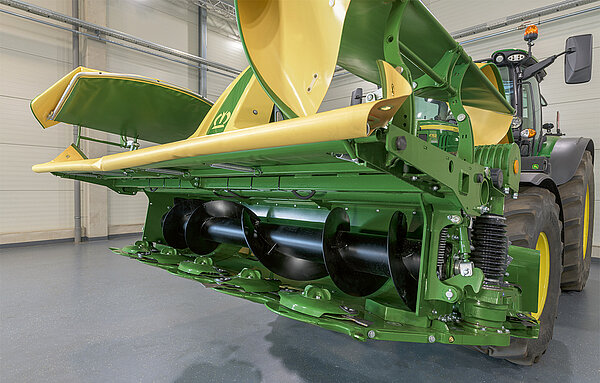

The KRONE conditioner with V-type steel tines
  • Easy and quick operation

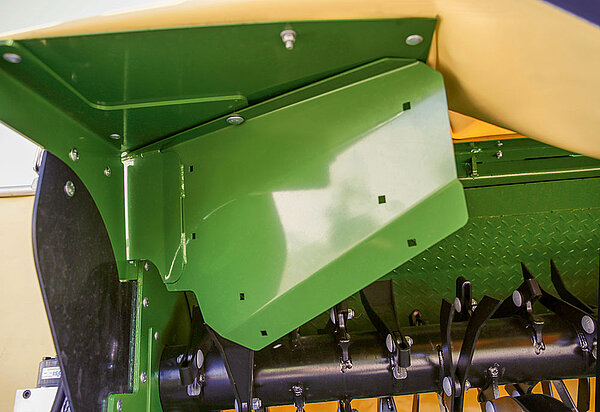

  • Optional deflectors spread the material across the full width

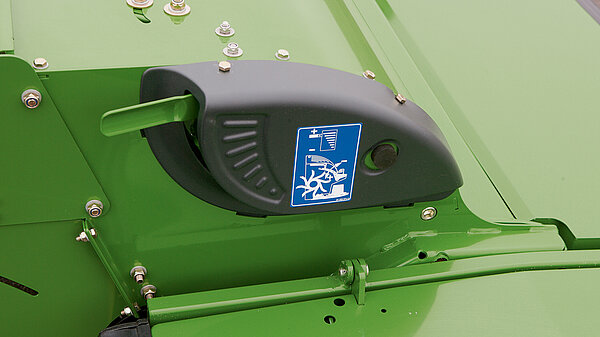

  • Infinitely variable swath widths

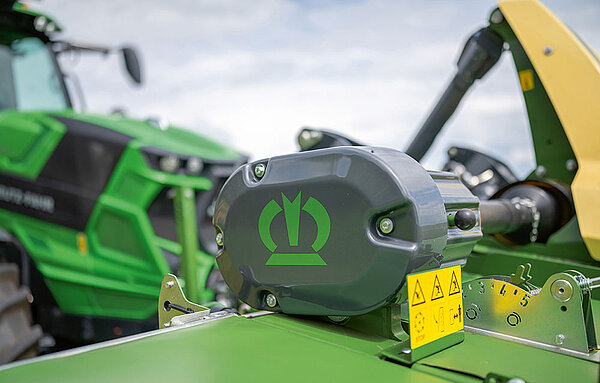

  • Mechanical gearbox, variable conditioning intensity

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. Its massive 64 cm diameter and the helical arrangement of the tines warrant a continuous crop flow, high throughputs and superior conditioning.

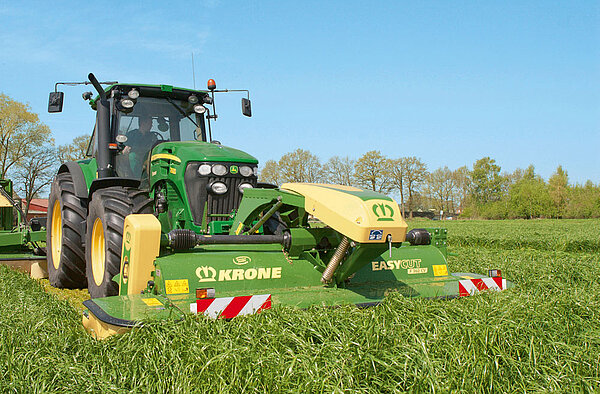

EasyCut F 320 CV and F 320 CR
  • Work width: 3.16 m

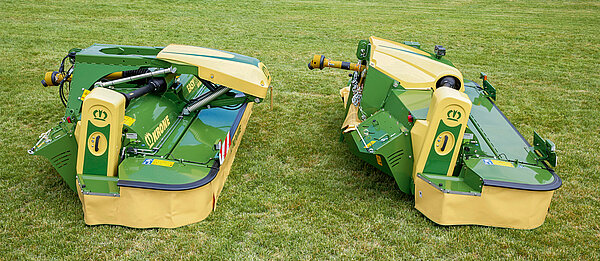

  • PUSH-type or PULL-type cutterbar
  • Choose between aggressive steel tines or chevron-profiled rollers for intensive treatment

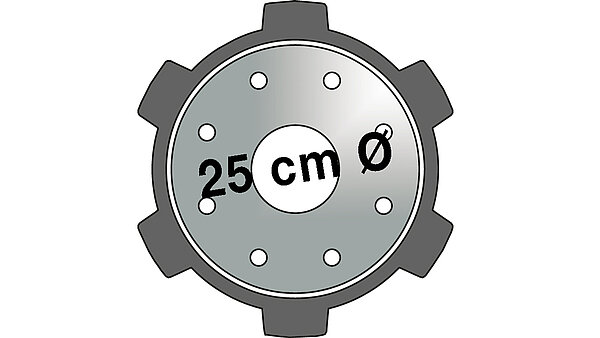

The front mowers F 320 CV with tine conditioner and F 320 CR with roller conditioner are specialists that warrant high-quality forage. Featuring either a large 64 cm diameter tined rotor or two 25 cm conditioning rollers, these mowers are the pros that deliver high-quality forage and best conditioning even in high-yielding crops.

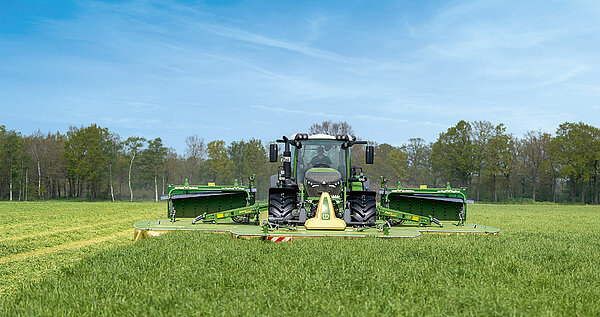

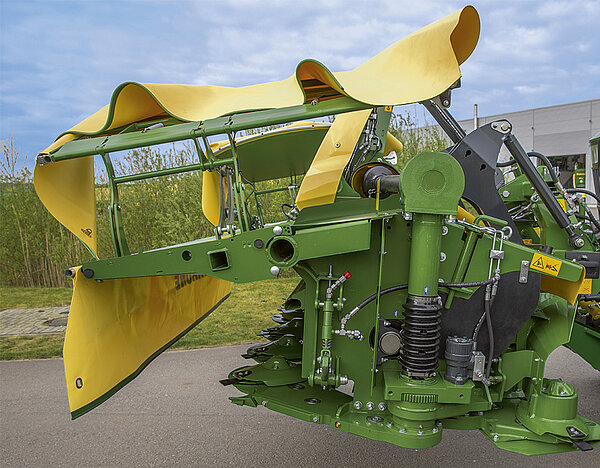

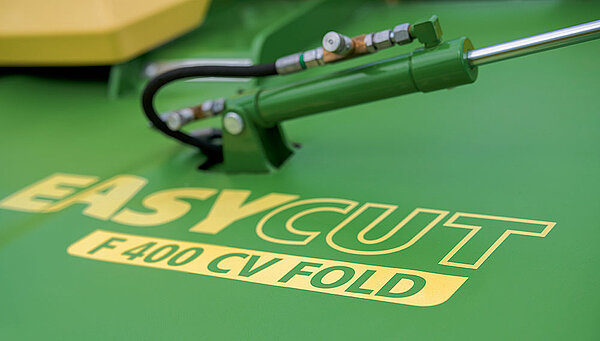

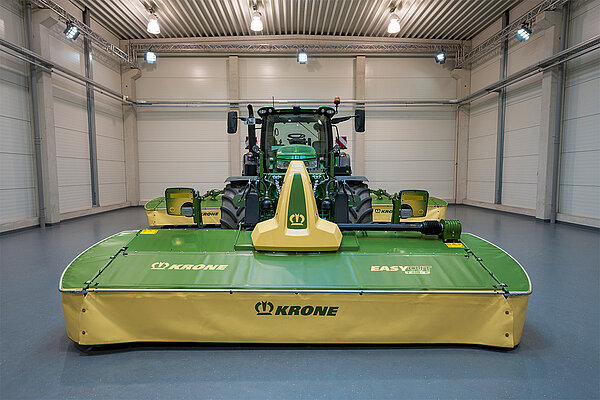

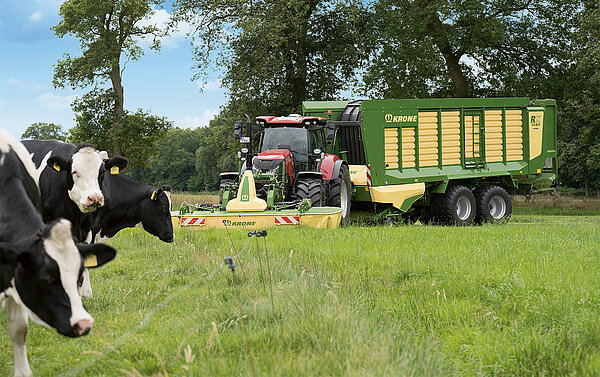

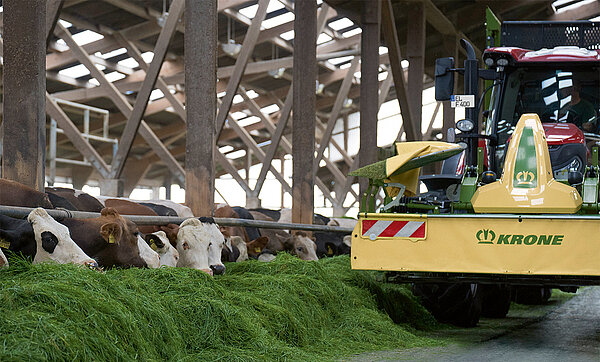

EasyCut F 400 CV Fold
  • The first foldable cutterbar on the market

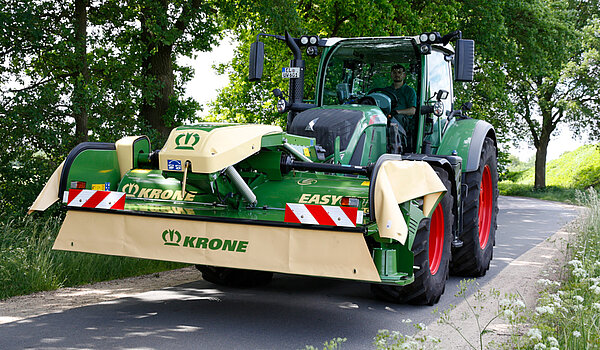

  • 4.04 m working width and yet less than 3 m transport width
  • Maximum overlap and high efficiency
  • Hydraulic suspension is as a standard feature
  • Hydraulic slewing gearbox
  • Intensive conditioning from aggressive steel tines

This first foldable cutterbar on the market is awarded the DLG Silver Medal at Agritechnica 2019. The KRONE development translates into maximum efficiency, maximum overlaps and maximum road safety. From a fingertip control, the operator activates a hydraulic slewing gearbox that folds the ends of the cutterbar without affecting disc operation

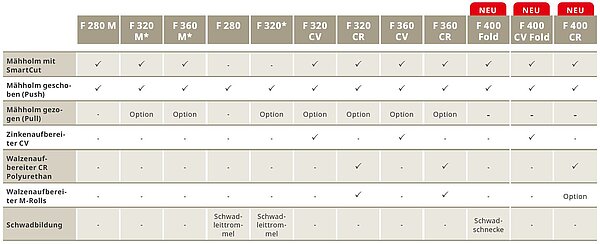

Models

EasyCut F
EasyCut F 320 (2. Gen) EasyCut F 320 (3. Gen) EasyCut F 320 CV EasyCut F 320 CR EasyCut F 400 Fold EasyCut F 400 CV Fold
Working width (m) 3.14 3.14 3.16 3.16 4.04 4.04 configure
PUSH-type cutterbar (Push) Standard Standard Standard Standard - - configure
PULL-type cutterbar (Pull) - optional optional optional Standard Standard configure
No. of discs 5 5 5 5 5 5 configure
No. of top hats 2 2 2 2 4 4 configure
Tine conditioner CV - - Standard - - Standard configure
CR conditioner with rubber rollers - - - Standard - - configure
Input power (kW/hp) 51 / 70 51 / 70 59 / 80 59 / 80 74 / 100 74 / 100 configure
configure configure configure configure configure configure
