RX

• OptiGrass
• Camless pick-up with hydraulic drive and hydraulic relief
• Integral rotor and SplitCut for optimum conditioning – provides a perfect cut
• Blade cassette can be swivelled out to the side with 40 or 54 individually protected blades
• Optional SpeedSharp blade grinder
• Pivoting front wall increases capacity from a compact build
• Axle assembly for maximum comfort
• Premium lighting Standard
• Options, which are worthwhile!

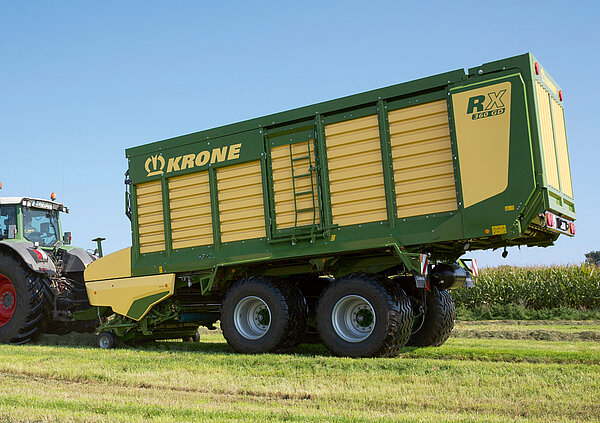

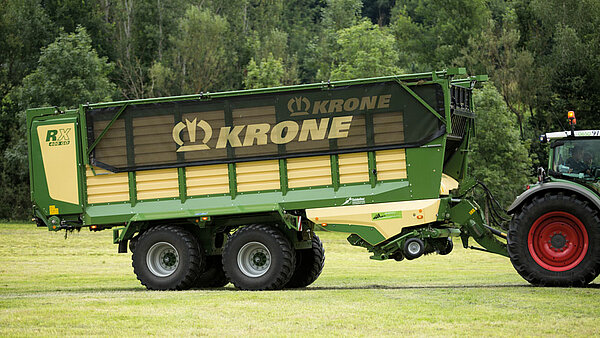

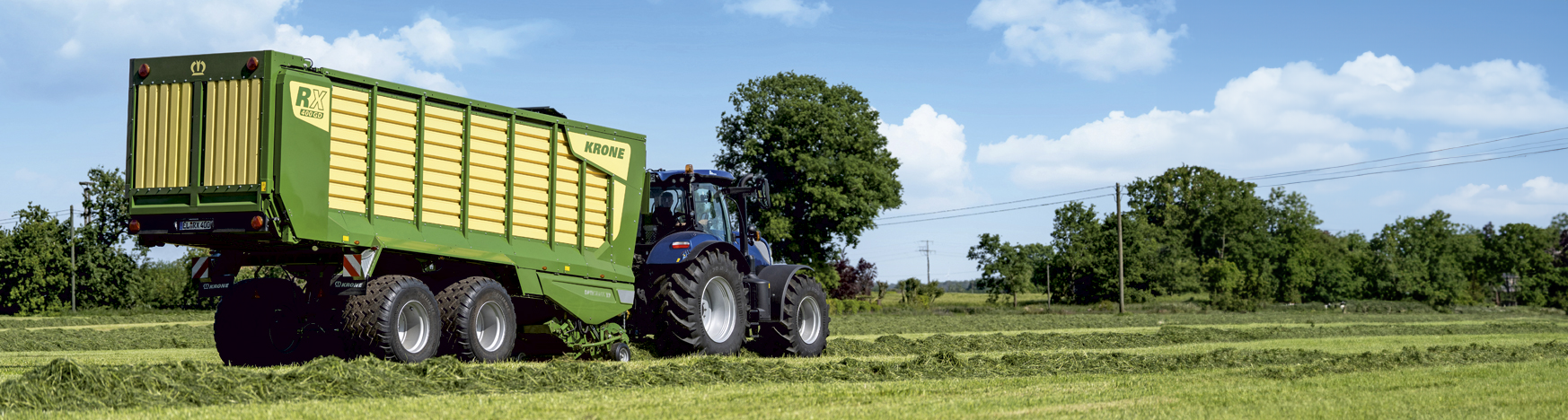

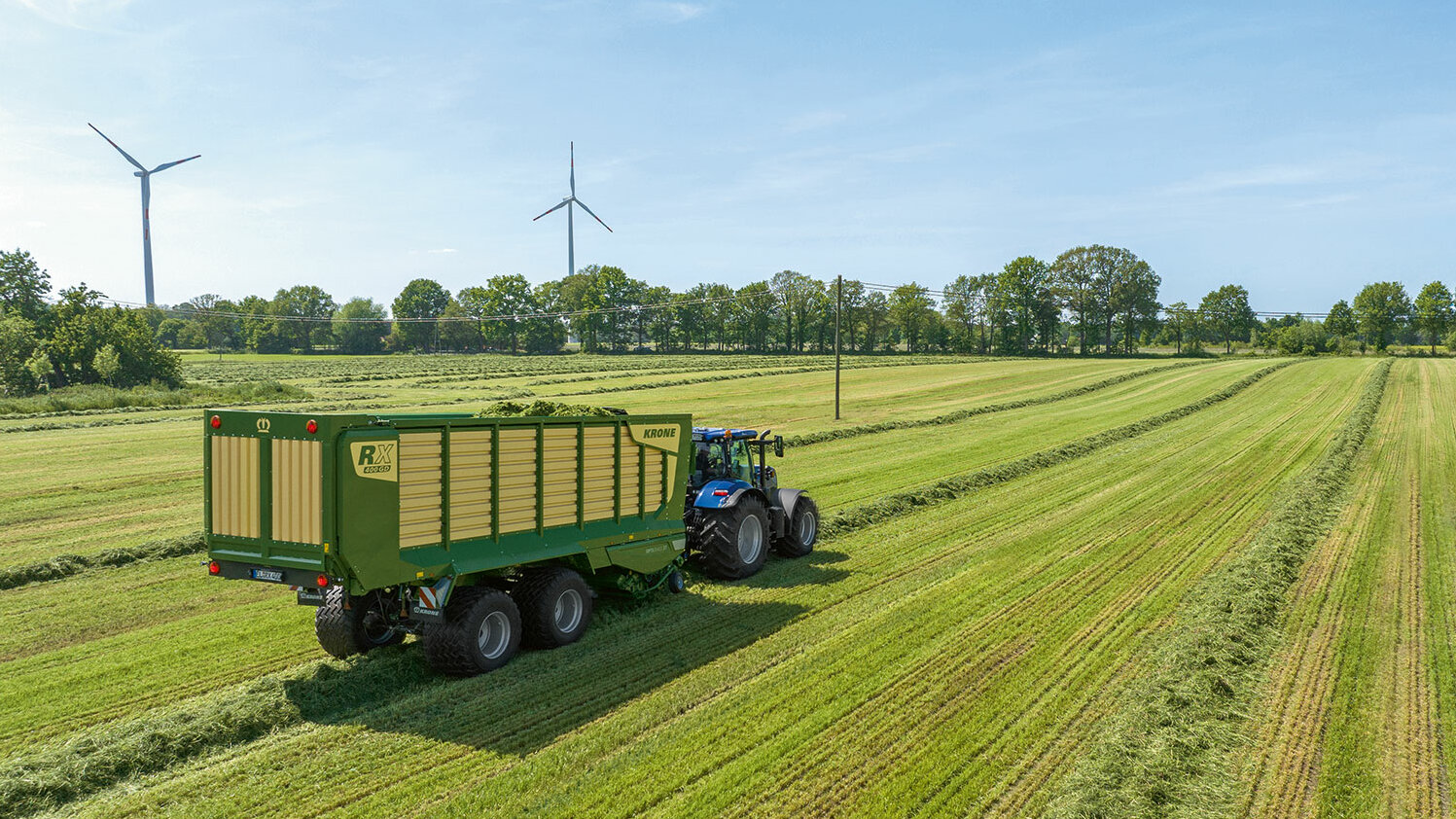

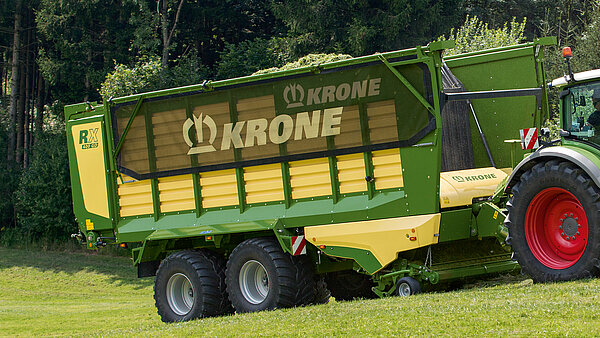

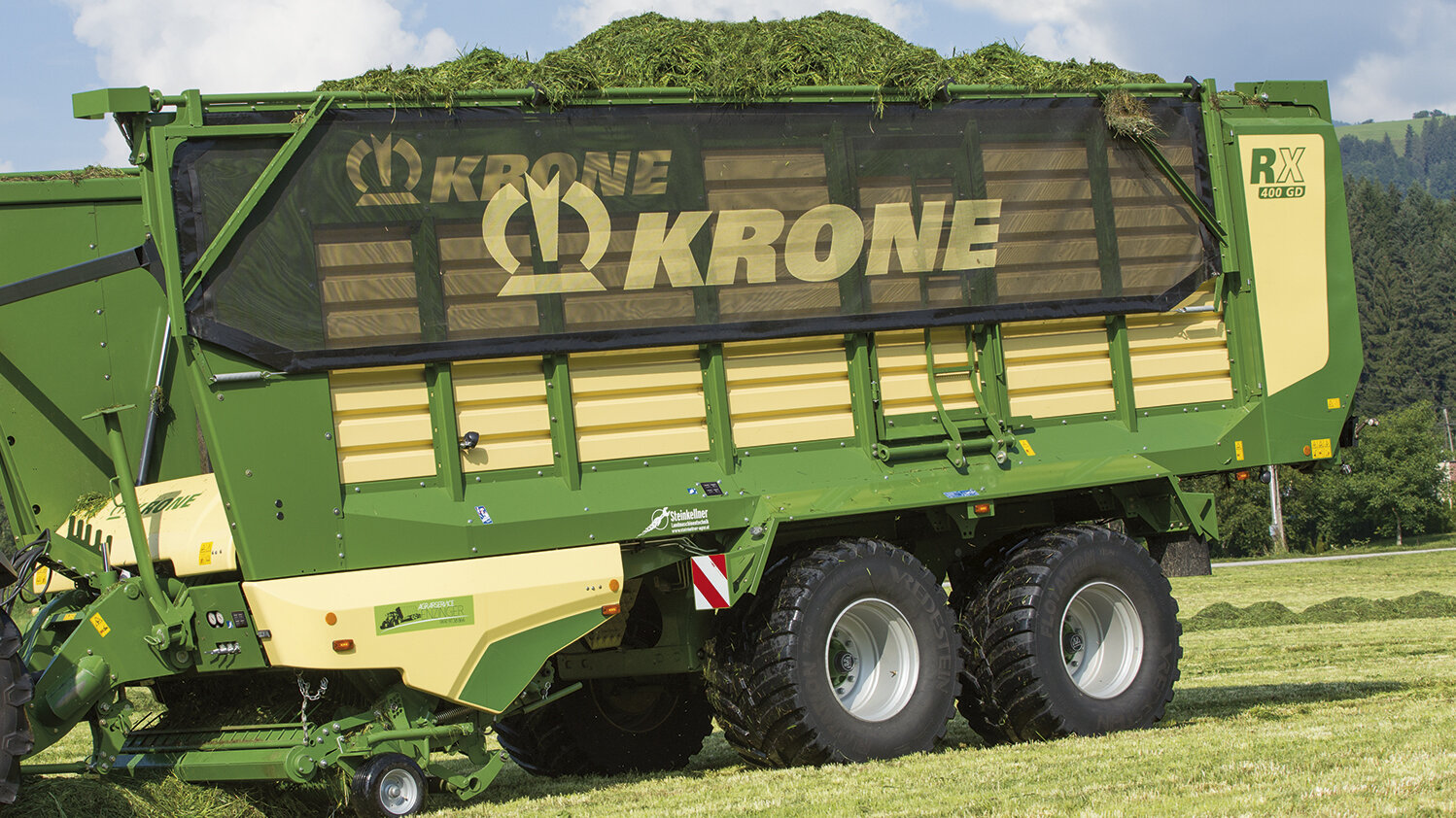

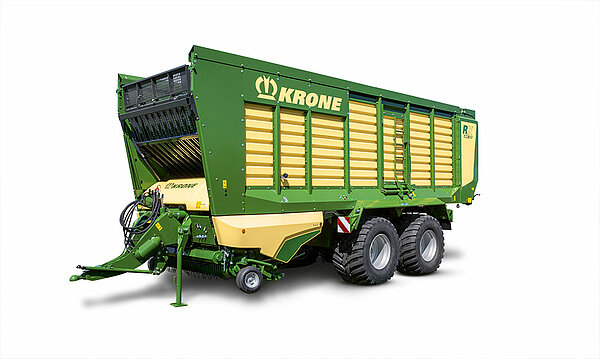

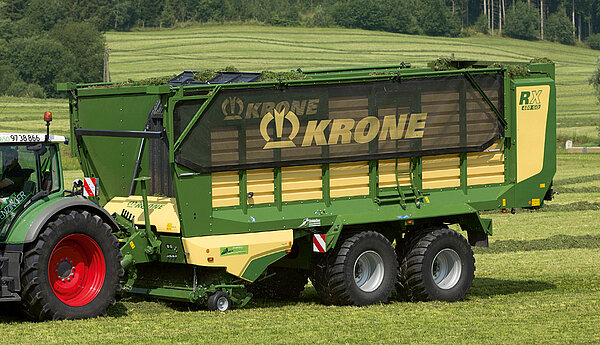

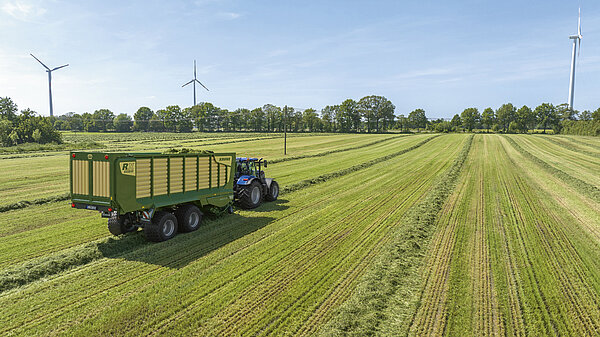

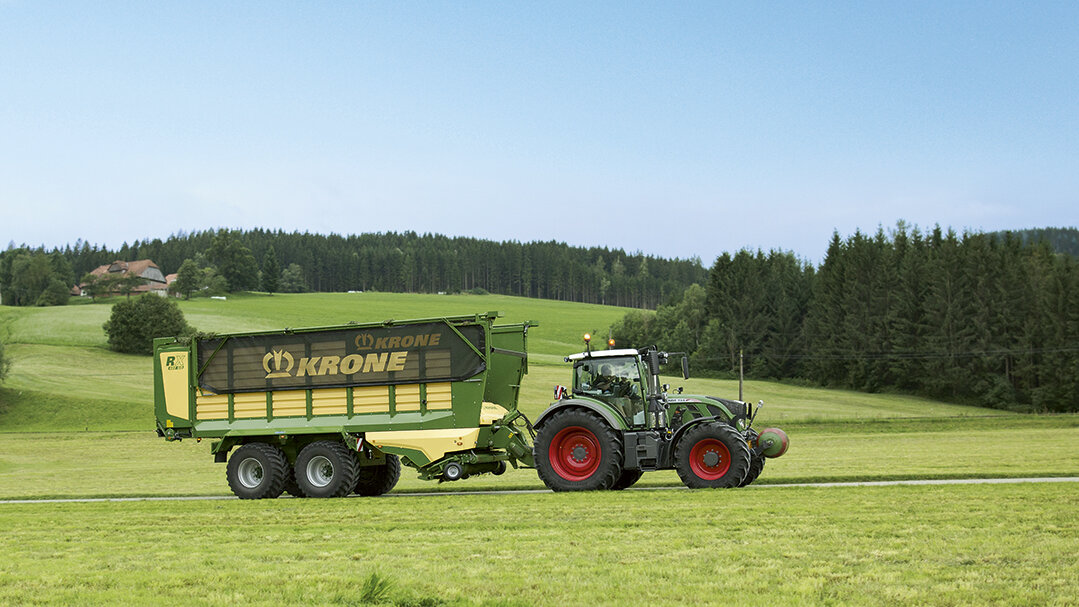

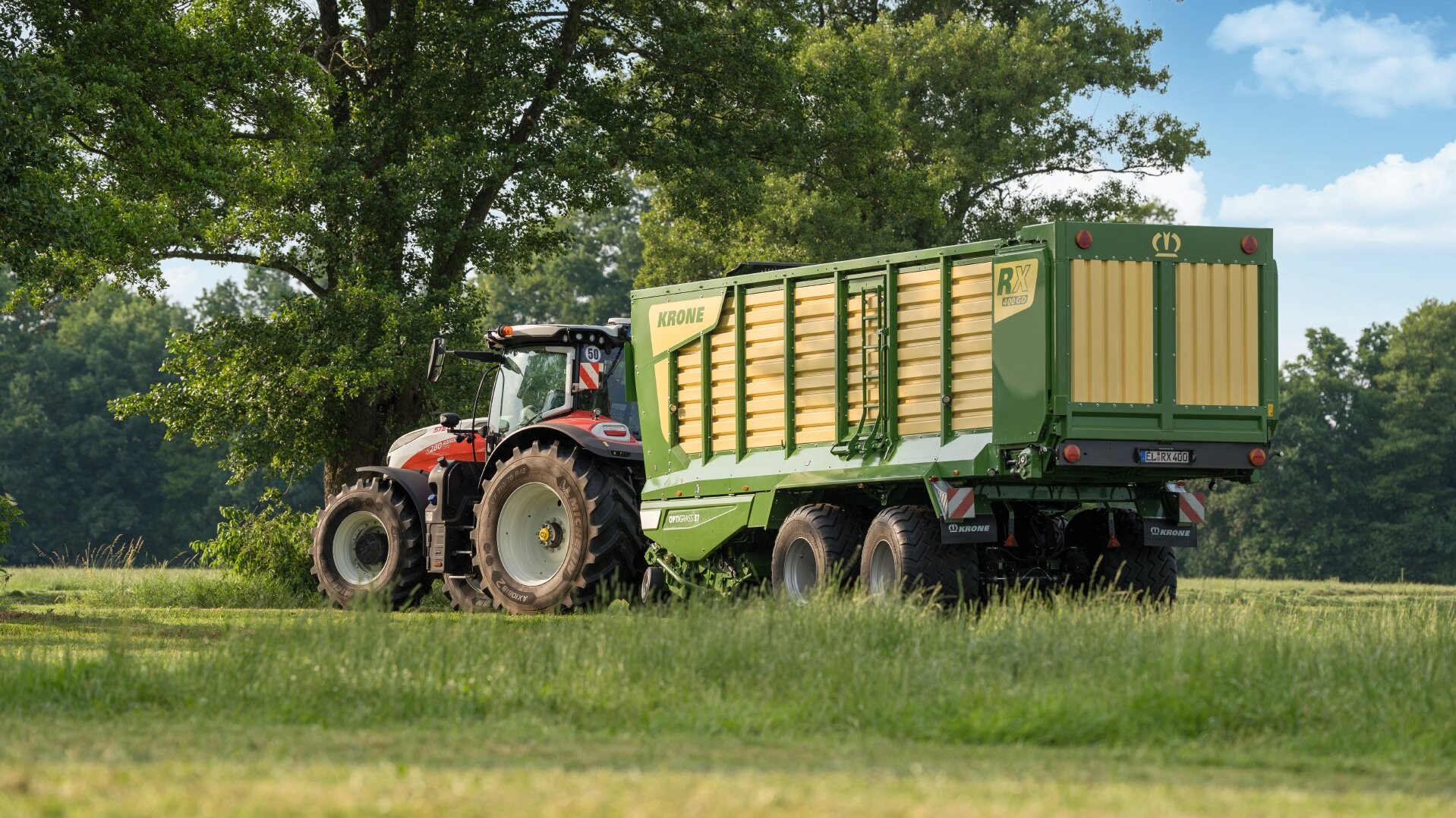

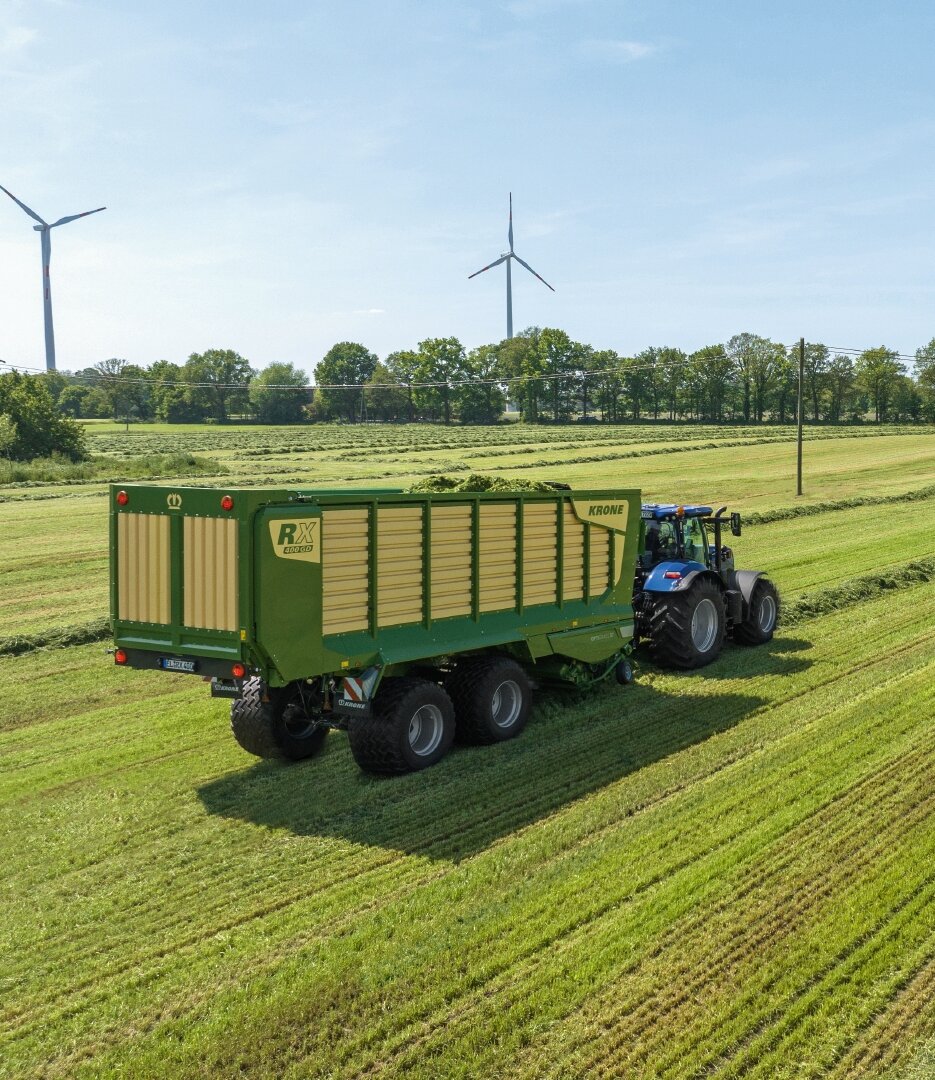

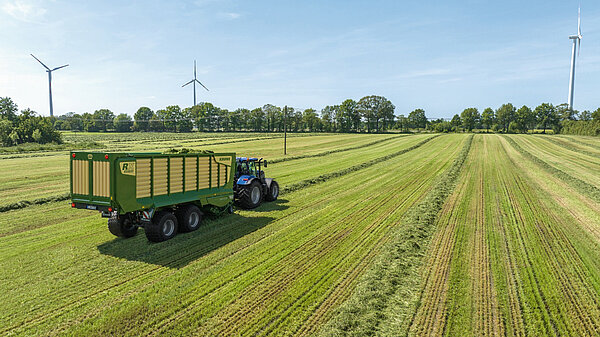

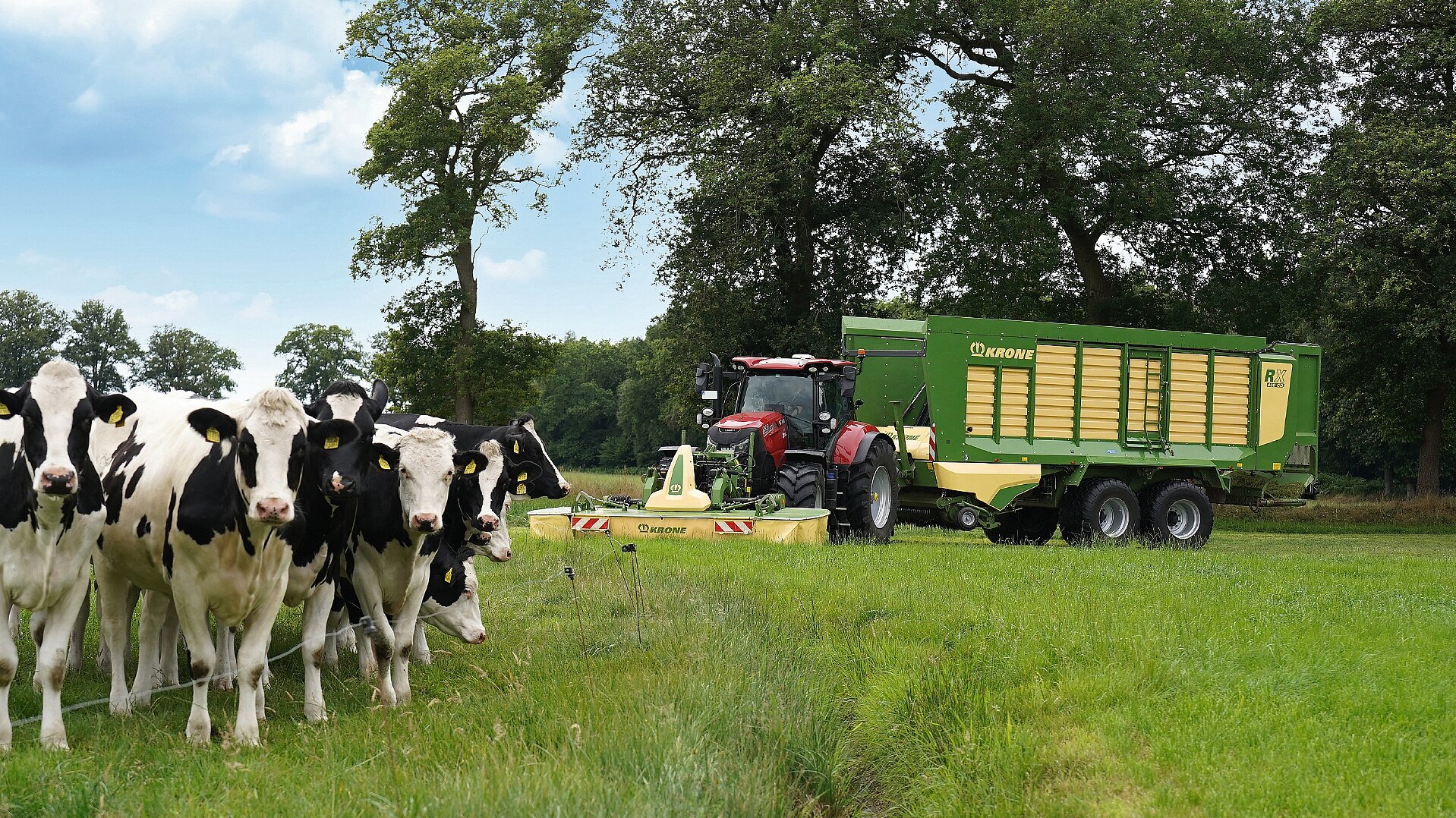

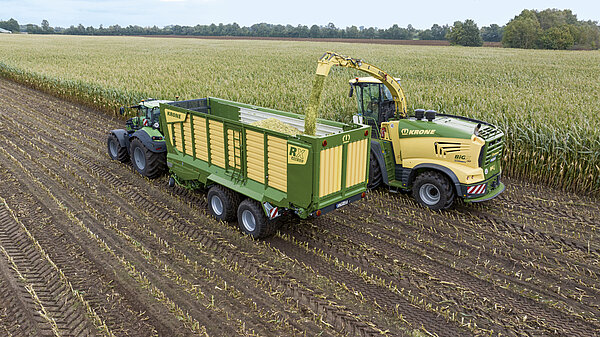

KRONE RX – the efficient loading and forage transport wagon a transport volume of 33 to 40 m³. The dual-purpose loading and forage transport wagon truly fulfills the requirements of both its purposes: as a loading and forage transport wagon in the grass harvest chain and as a forager-filled silage trailer in the maize transport chain. With the high-performance 'OptiGrass 28 and 37' cutting systems, it offers a clean, precise cut as well as structured and homogeneous forage conditioning across the entire width. Thanks to its versatility, operational reliability and high efficiency, the use of an RX wagon is particularly economical.

• Loading and forage transport wagons
• 33, 37 or 40 m³ loading volumes
• Compound running gear (RX 330 /370)
• Hydraulic running gear (RX 400) available for all models as an option
• Unloading with or without discharge rollers
• OptiGrass concept for a clean 28 or 37 mm cut

Their proven-and-tested design features and innovative technologies, such as the KRONE SplitCut edge cutting system and the OptiGrass concept, make the RX dual-purpose loading and forage transport wagons the ideal machine for efficient harvesting. With a loading volume of 33, 37 or 40 m³, these loading and forage transport wagons offer ample capacities for successful forage harvesting.

• Clean cut in theoretical length of 28 or 37 mm
• Optimal structure gentle conditioning under all conditions
• Homogeneous uniform conditioning of each stalk over its full width
• Precise wide steel plates and blades arranged for shear cutting
• Perfectly coordinated precise interaction between pick-up and cutting rotor
• Innovative new integral rotor with unique divider wall system

Thanks to the KRONE OptiGrass system, the forage quality is clean, homogeneous and uniform. This is possible due to the precise cutting method with a choice of cutting lengths of 28 or 37 mm. Thanks to the perfectly coordinated technologies, conditioning is gentle, resulting in a clean and high-quality result.

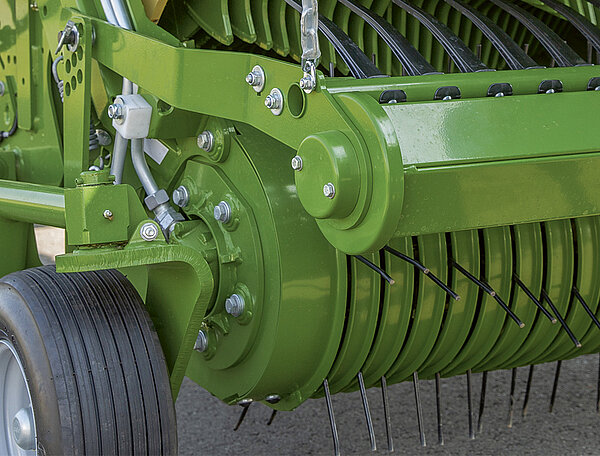

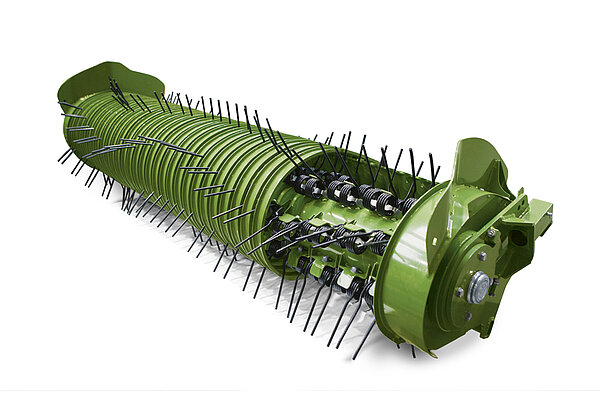

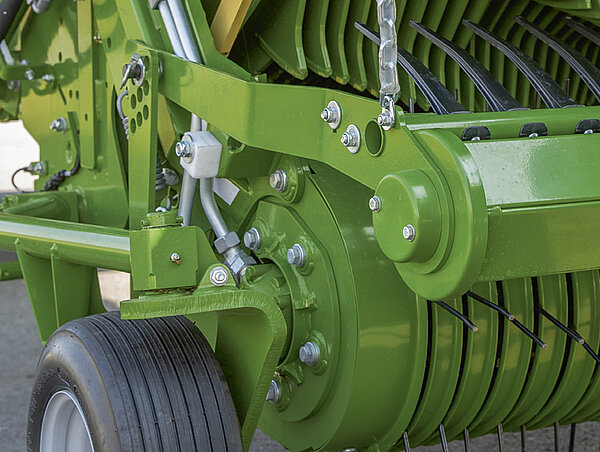

• Hydraulic drive separated from the feed and cutting rotor
• Automatic and manual speed control to adapt to the current ground speed
• Maintenance-free and hard wearing

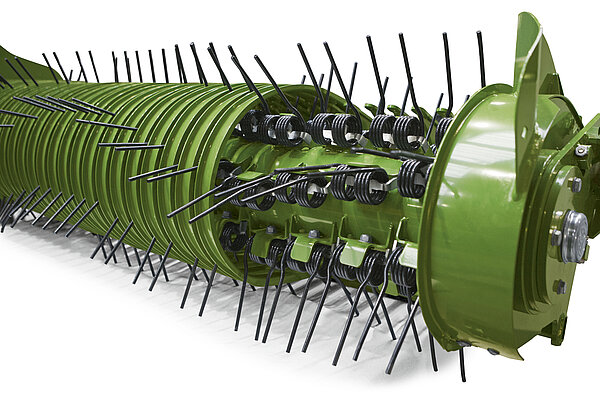

• Consistent collection of the material by tines in a staggered W arrangement
• Large pivoting range

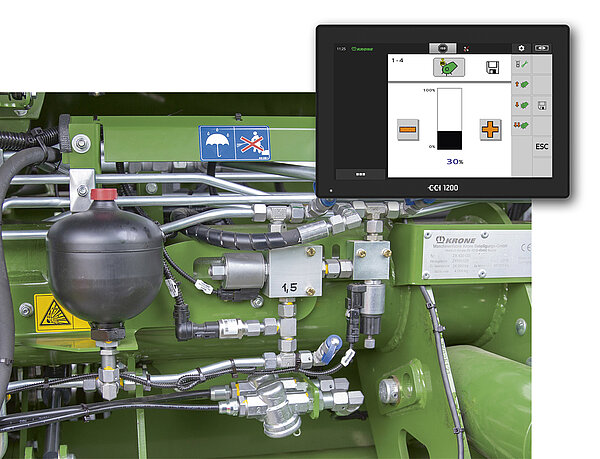

• Electrohydraulic suspension for even better sward protection.

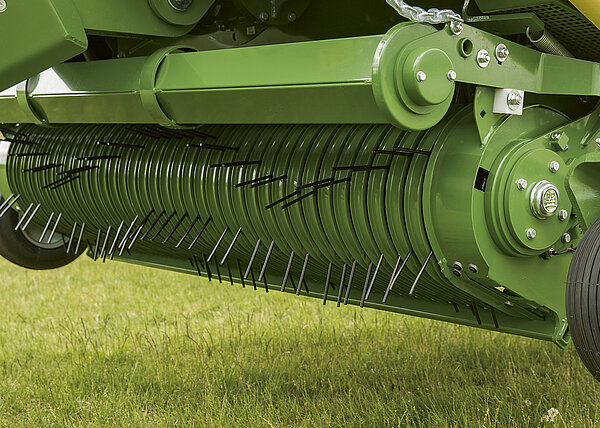

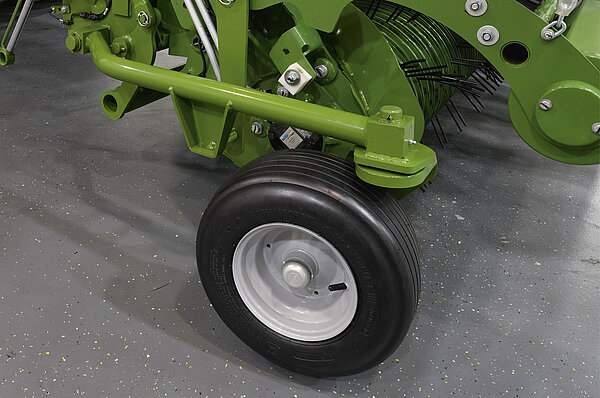

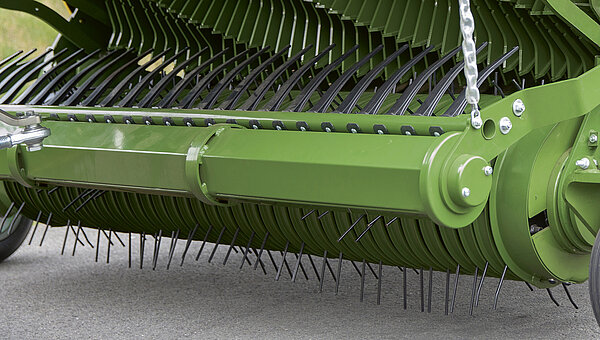

The EasyFlow pick-up with hydraulic drive is the ideal solution for demanding requirements. With its 6.5 mm thick double tines in a helical layout, it meets the most demanding requirements in ease of maintenance and pick-up capacity. The hydraulic drive integrated in this pick-up offers an even larger work width, which helps to collect even more material at an optimum driving speed and maximizes the intake capacity.

• OptiGrass 37 mm cutting distance with 40-blade cutting unit
• OptiGrass 28 mm cutting distance with 54-blade cutting unit
• ­KRONE PowerBelt: the drive concept for extremely high throughput rates.

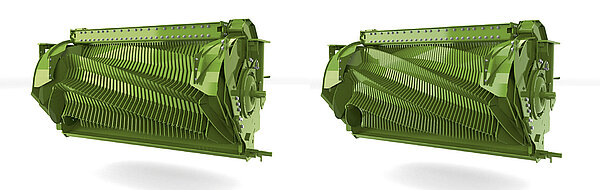

• Integral rotor with augers: high-performance crop flow with maximum pick-up width
• ­KRONE SplitCut: optimum conditioning over the entire rotor width

­KRONE OptiGrass – state-of-the-art technology for perfect forage conditioning. The 40-blade cutting unit with a cutting distance of 37 mm and the 54-blade cutting unit with a cutting distance of 28 mm ensure optimum forage quality. ­KRONE PowerBelt ensures extremely high throughput rates and the ­KRONE SplitCut system ensures gapless conditioning across the entire rotor width.

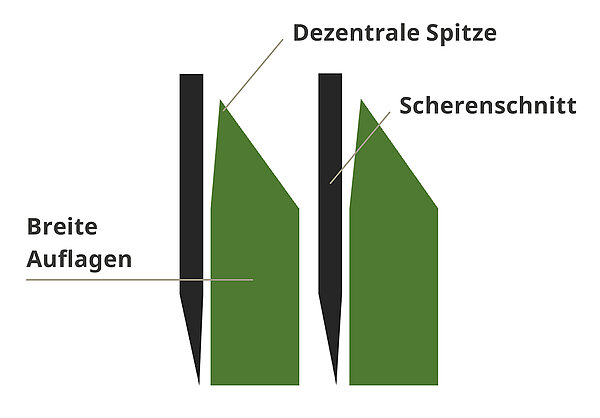

• Top cutting quality Shear cut
• Theoretical cutting length: OptiGrass 28 mm with maximum 54 blades | OptiGrass 37 mm with maximum 40 blades
• Central blade group control system: 0, 20, 20, 40 blades | 0, 27, 27, 54 blades
• Blade changing without tools and with central locking

KRONE OptiGrass cutting units offer wide tine holders and closely spaced, guarded blades which provide an easy and precise cut, similar to a pair of scissors. Two cutting units with 40 or 54 blades are available for optimum conditioning. Thanks to the central blade group control system, the cutting length can be varied at any time between a half and full set of blades, allowing cutting distances of 28 or 56 mm or 37 or 74 mm. OptiGrass therefore offers a flexible solution for different cutting lengths.

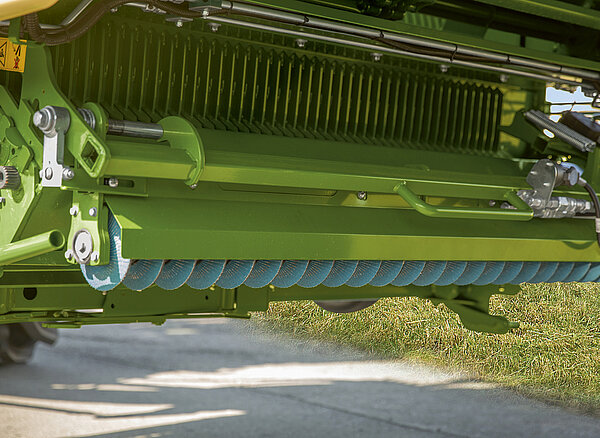

• Sharpens the blades conveniently and fast within minutes
• Simultaneous sharpening of half (OptiGrass 37) or a third of the blades (OptiGrass 28)
• No annealing of the knifes thanks to a "cold grind"
• Simple design, absolutely dependable
• No sparks flying under the wagon

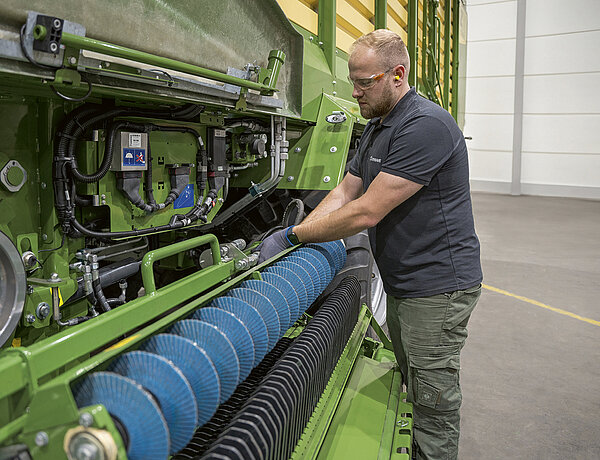

Sharp blades are fundamental for clean and smooth cuts. This is why ­KRONE developed SpeedSharp, the unique blade grinding device. The trademark of this system is its simplicity.

• All-steel floor and all-steel body

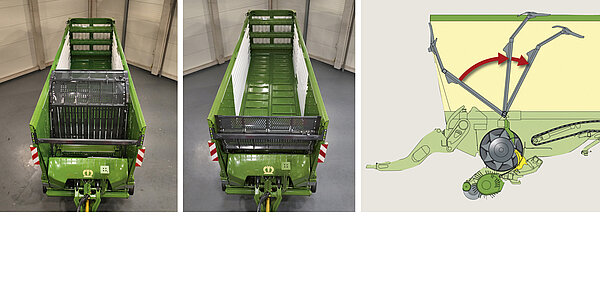

• Choice of headboards: pivoting or top hatch
• Double scraper conveyor, sloping towards the front
• Robust round steel chains with closed cross tubes
• Standard LED light bars illuminate the load area
• Integrated filling level indicator in the operating terminal
• 3 discharge rollers with large diameter (47 cm) as standard

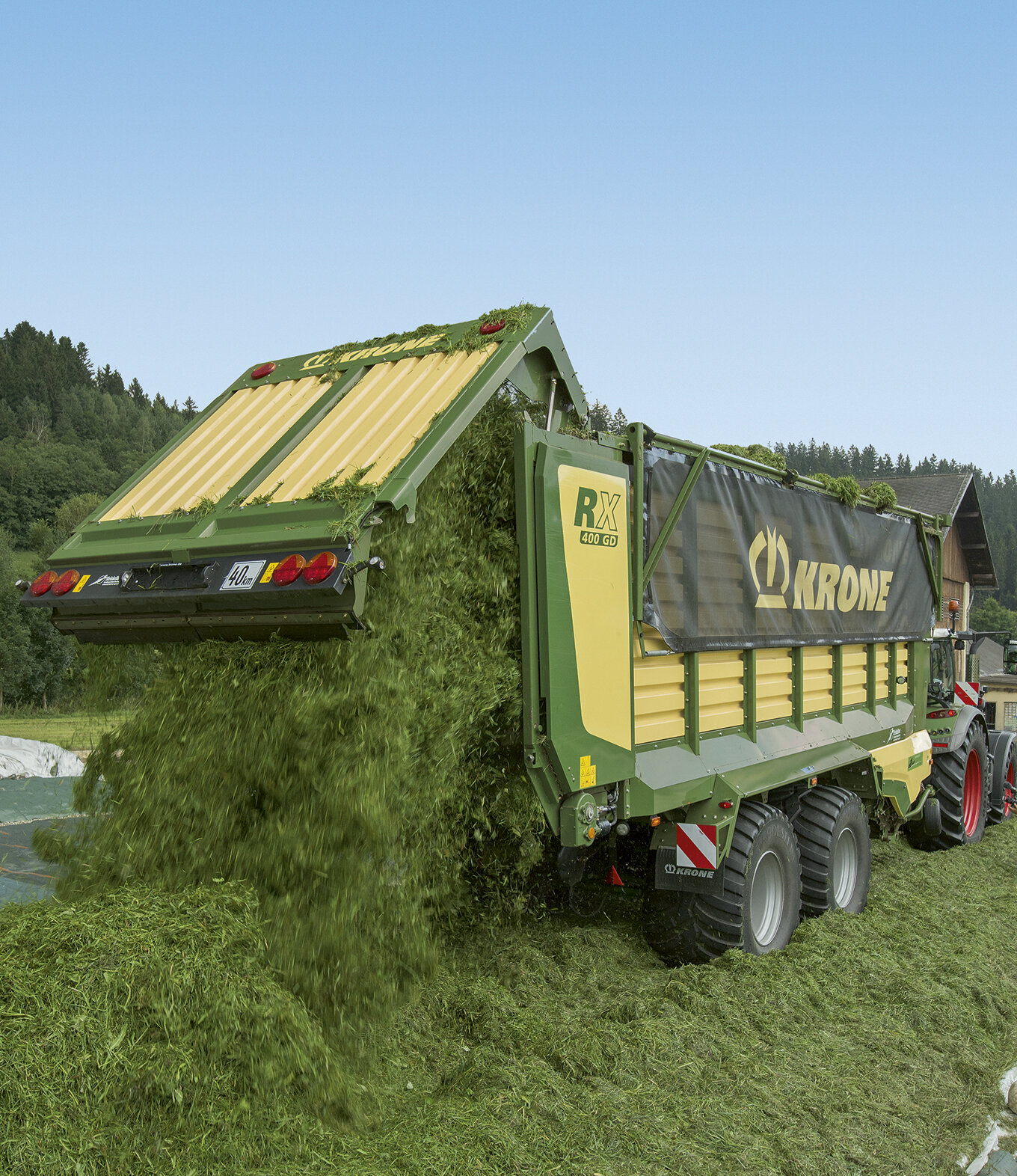

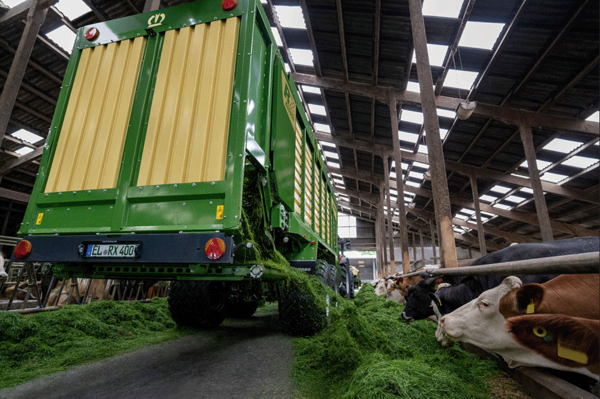

With their all-steel loading space, the RX dualpurpose loading and forage transport wagons are designed for the toughest practical applications. Choose a pivoting headboard or a rigid headboard with a top hatch to optimize the machine's filling capacity. The robust scraper conveyor empties

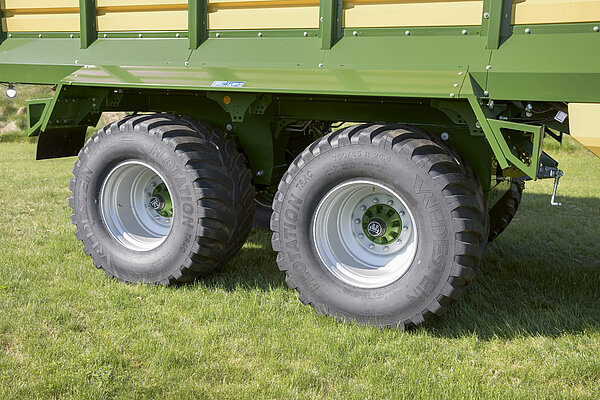

• Tandem compound running gear, 18 t for RX 330 and RX 370 as standard
• Hydraulic 20 t tandem chassis: RX 400 as standard | RX 330 and 370 optional
• Hydraulic 27 t tridem chassis optional for RX 400

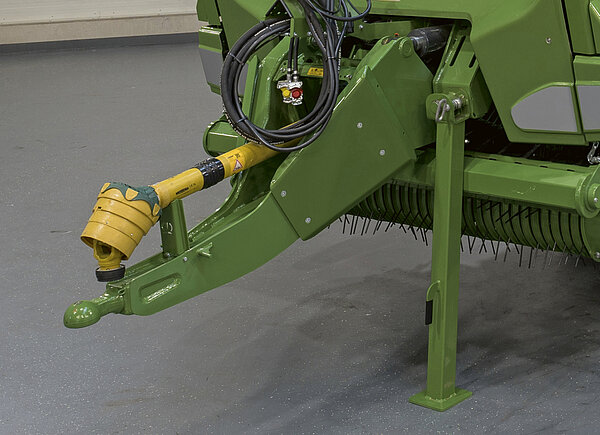

• Narrow and compact drawbar
• Articulated drawbar for high lifting height
• Intelligent self-steering as standard

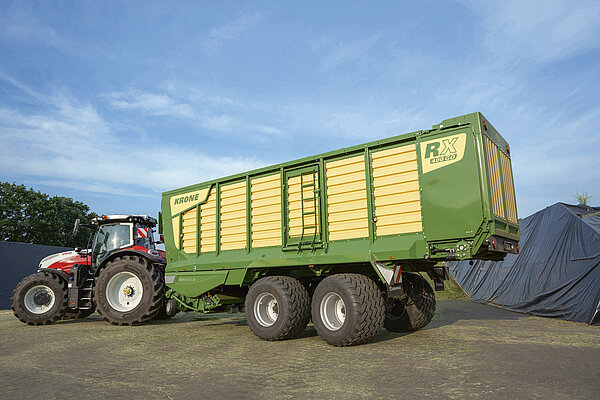

• Contactless electronic forced steering, optional

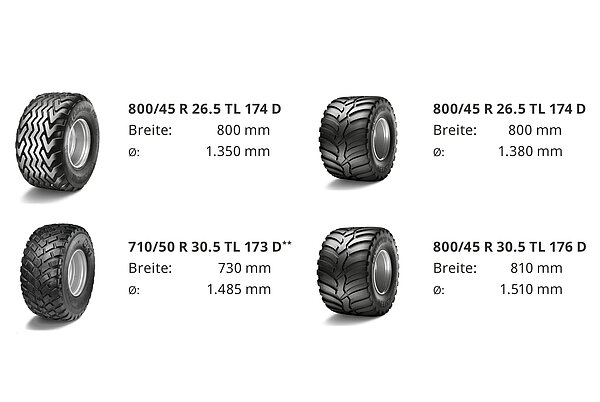

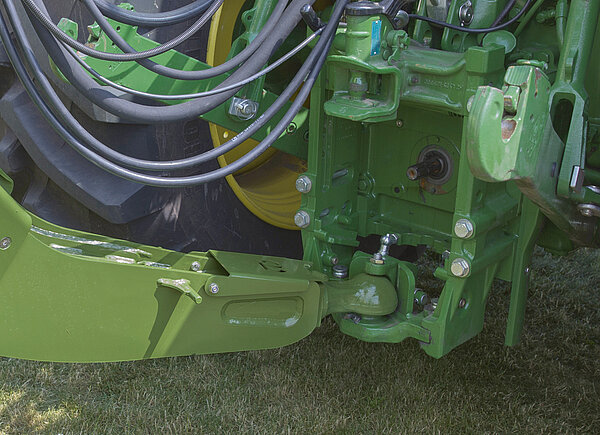

Varying harvest conditions, difficult situations on the clamp, high payloads, and long-distance travel at speed call for a running gear and a drawbar that offer maximum strength and stability as well as superior comfort and safety to the operator. With ball-head attachment 80, articulated drawbar and tandem or tridem chassis as well as adjusted tyres, the RX dual-purpose loading and forage transport wagons are perfectly equipped for all applications.

• Premium lighting package as standard
• Excellent all-round visibility at night thanks to two powerful LED working lights at the rear
• Safe in the field and on the road with front position lamps and reflectors
• The load always in view Thanks to LED light strips installed as standard in the loading space
• Two additional working lights can be quickly retrofitted thanks to prepared cable position

The KRONE RX's Premium lighting package not only enhances safety, but also increases nighttime productivity. The Premium package provides optimum lighting of the surroundings, the loading space, the crop flow and the drive components. Additional working lights can be retrofitted as an option.

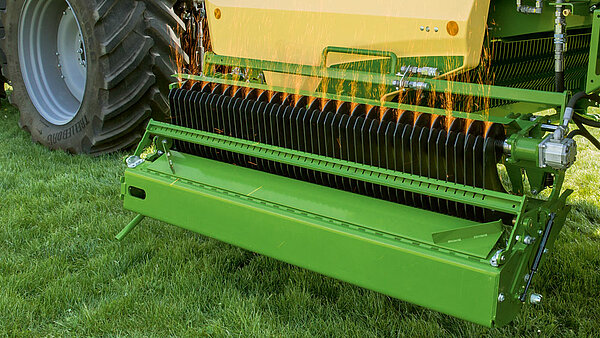

• Spreading above the pick-up using flat jet nozzles
• 200 litre tank capacity optimally positioned for access at the rear
• Easy cleaning of the system
• Removal of the pump unit without tools

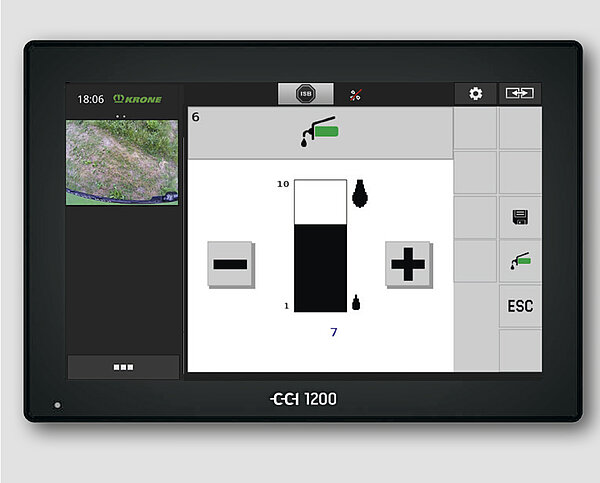

• Convenient operation via the terminal
• Different modes for optimal dosage

The KRONE RX has an integrated dosing system with a 200-litre silage additives tank which can be operated in different modes. The pump unit, including the filters and valves, is installed in the rear of the vehicle to save space. An electronic filling level indicator enables reliable and fast monitoring of the silage additives supply.

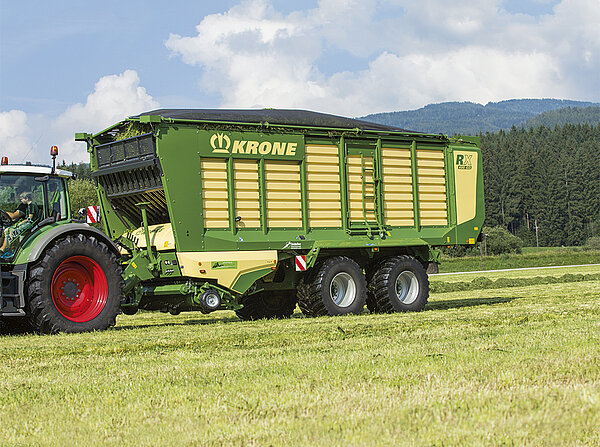

• Loading space cover for loss-free transport

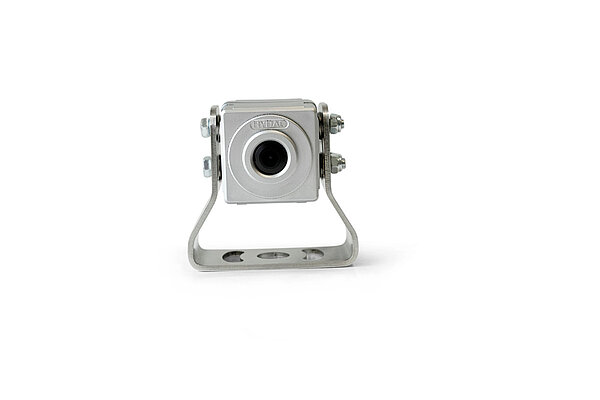

• Camera with colour display on the monitor
• Weighing device for an exact measurement
• KRONE SmartConnect telemetry unit optimal data management

The loading space cover ensures clean transport even when driving fast and increases safety in road traffic. A camera helps to see the working environment better, making work easier and safer. The electronic weighing device can be used to measure the loading quantity precisely. The KSC control unit ensures rapid transmission of the recorded data.

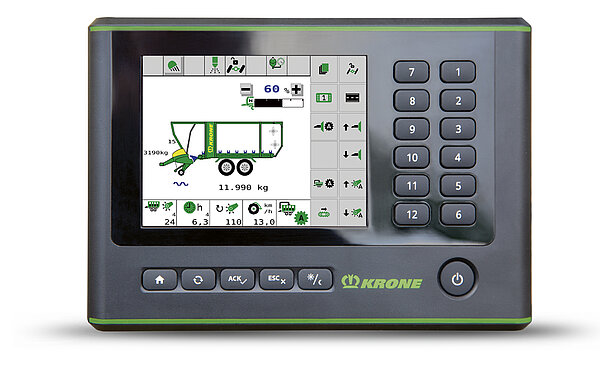

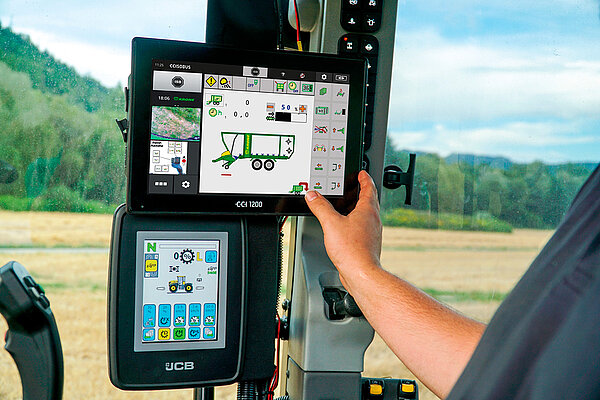

• Convenient for operators
• Clear concept
• Easy
• CCI ISOBUS – one control box for all

Operator comfort is essential. Our shockproof operator terminals are compact, clear-cut and easy to operate. They feature backlit buttons to reduce operator fatigue during those long shifts well into the night. The CCI terminal is a universal operator control unit, which is compatible with a wide variety of ISOBUS implements from many manufacturers.
