TX

• Up to 56 m³ capacity
• Single-frame concept for a lower dead weight and more loading volume
• Sloping steel base for more loading volume and greater driving comfort
• Extremely powerful scraper conveyor drive by roller chain for fast unloading
• Hydraulic articulated drawbar – Wagon lowered to the front, ideal for opening up a field

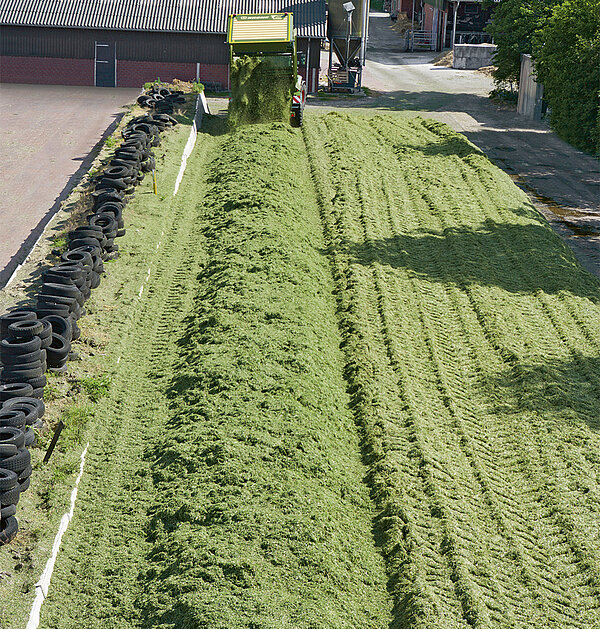

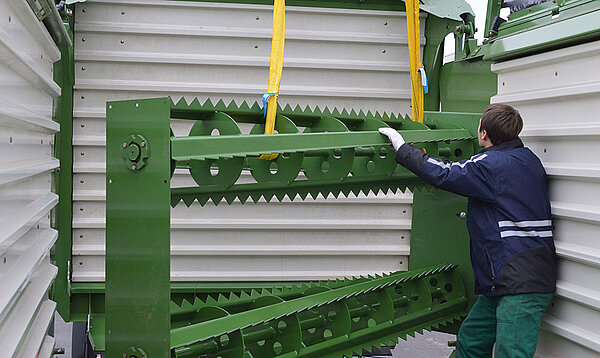

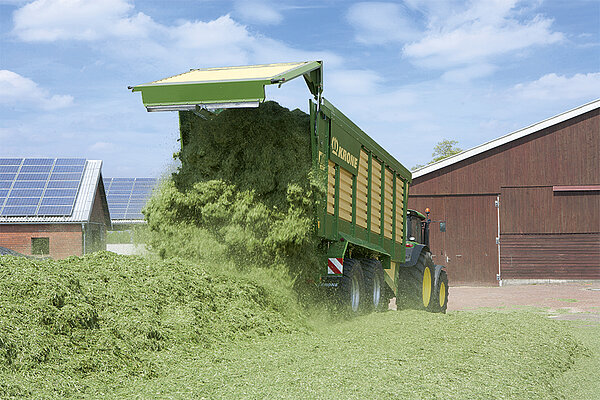

• D-models with two discharge rollers for uniform forage discharge
• Axle assemblies with hydraulic compensation for best driving stability
• Optionally hydraulic or electronic forced steering for easier manoeuvring

• Huge loading volume: 46 and 56 m³

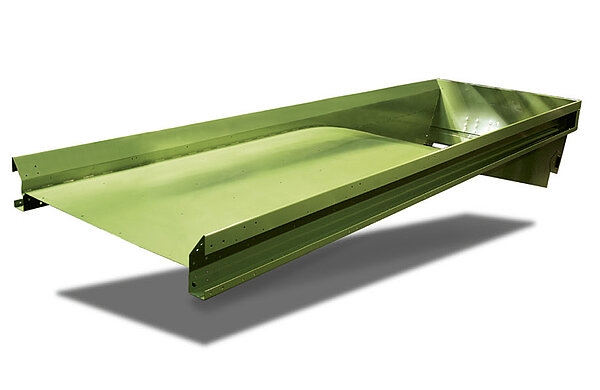

• Single-frame concept with front loading trough for a lower dead weight and more payload
• Rugged and heavy-duty all-steel body
• Conical design, so that the load slides better
• Unique unloading aid

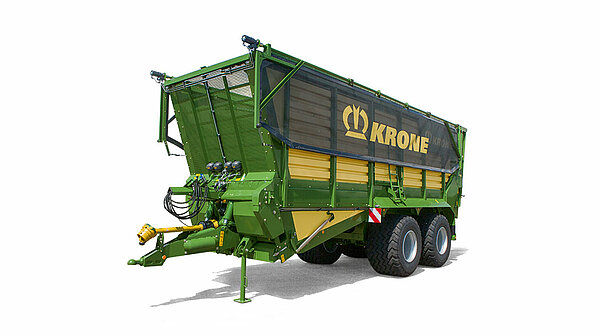

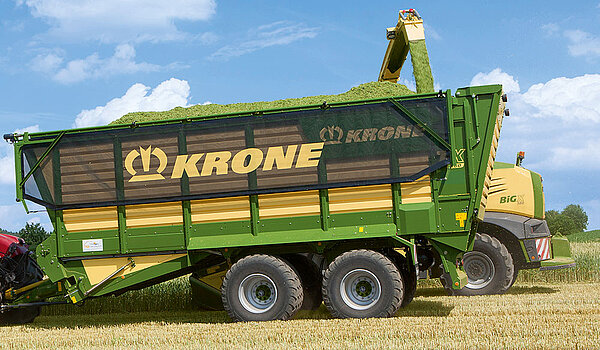

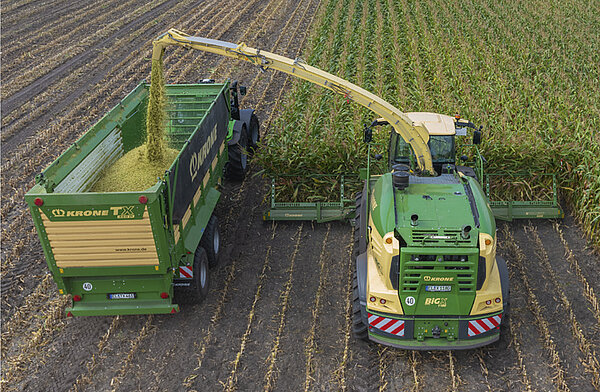

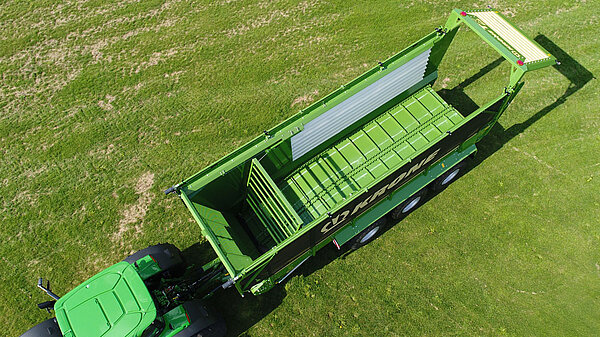

The ­KRONE TX can easily be loaded by the harvester and stands out for offering huge transport capacities, safe and swift travel, as well as fast unloading. A TX boosts your efficiency, reduces costs and sets new standards.

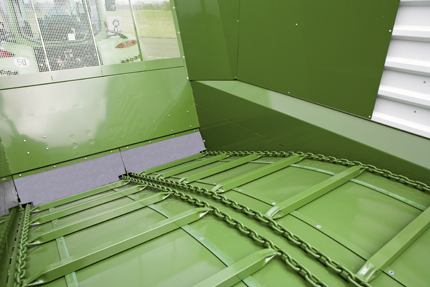

• Lowered scraper conveyor for more loading volume, best driving characteristics on slopes, in the field and on the road
• Better traction of the tractor rear wheels when initially loading the front wagon
• Double scraper conveyor: Robust and non-slip

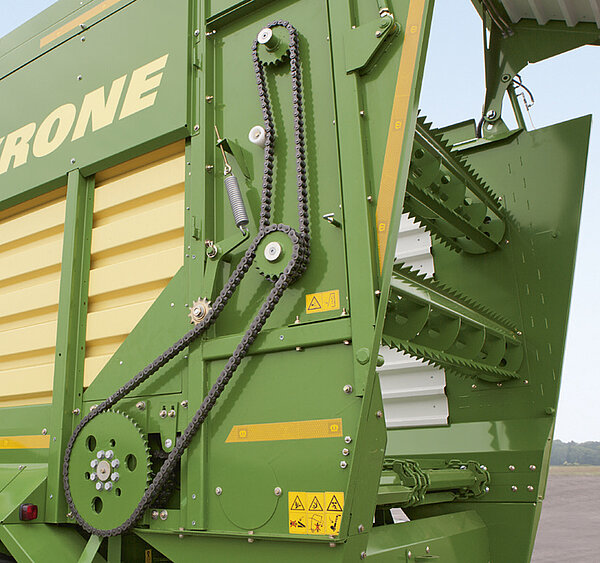

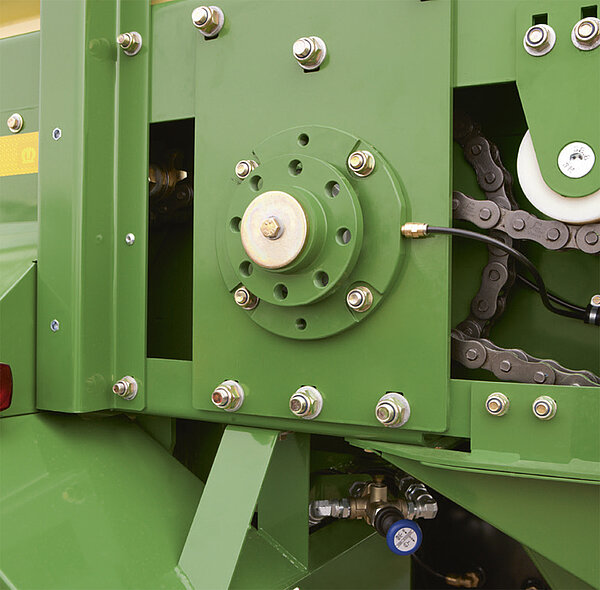

• Direct and mechanical scraper conveyor drive:
  - extremely powerful
  - extremely fast
  - independent of the tractor hydraulics

The ­KRONE TX forage transport wagon is tailored to the needs of contractors. With greater loading capacities, a steel base that slopes to the front and swift unloading by the scraper conveyor feed that does not rely on the tractor hydraulics, the TX has become even more efficient.

• Wagon can be lowered towards the front for optimum filling when opening up a field
• Variable ground clearance – ideal on the silage clamp and for deep ruts
• Tight turning radius – no need to dismount the tractor lower links

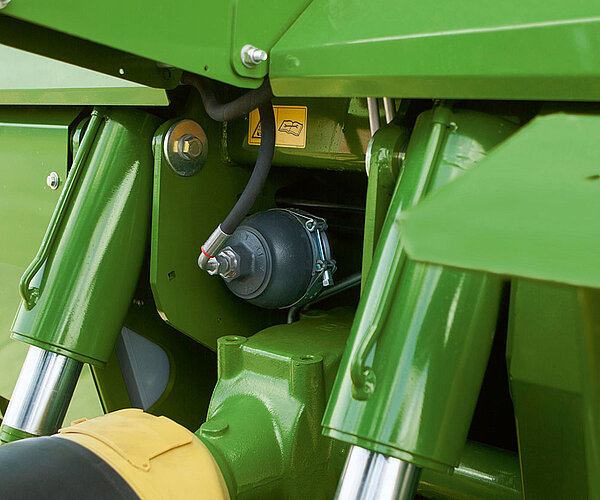

• Quiet running – hydraulic drawbar suspension

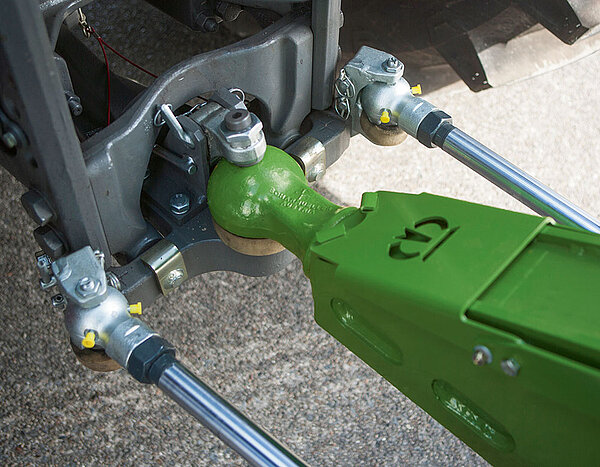

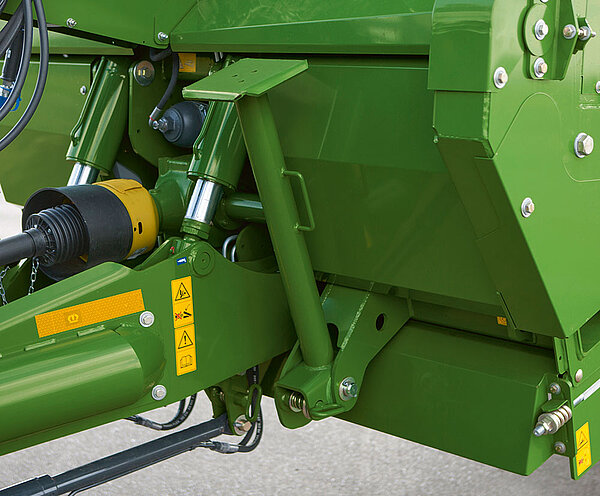

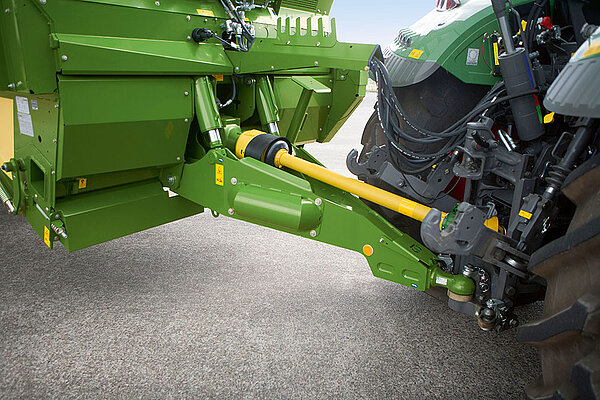

The hydraulic articulated drawbar tilts the wagon to the front, making it easier to open up a field but also increases the machine‘s ground clearance when travelling in deep ruts. The slim drawbar with ball-head attachment is suspended to offer superior driving stability. The narrow drawbar with ball-head attachment has hydro-pneumatic suspension and offers maximum driving comfort.

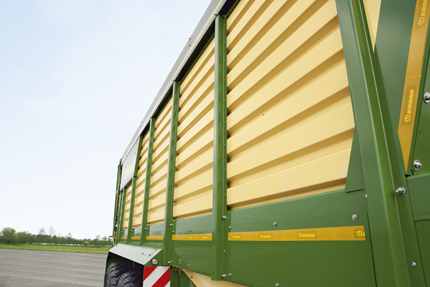

• Robust all-steel body, few components

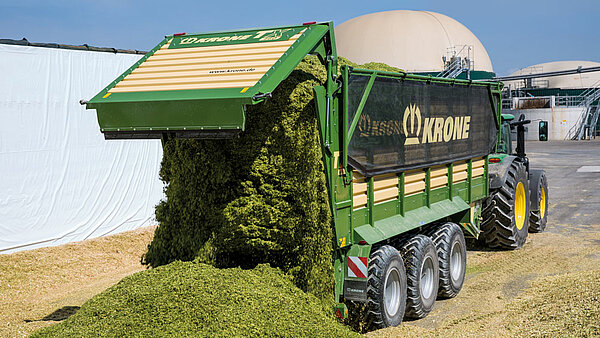

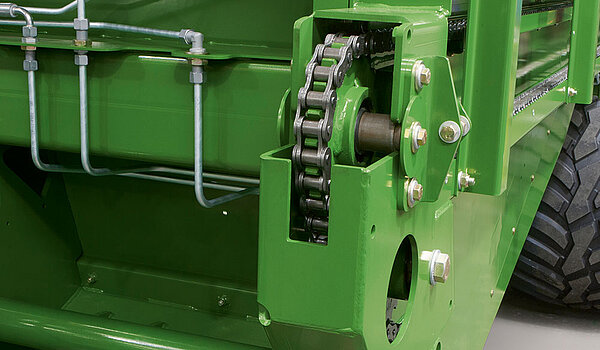

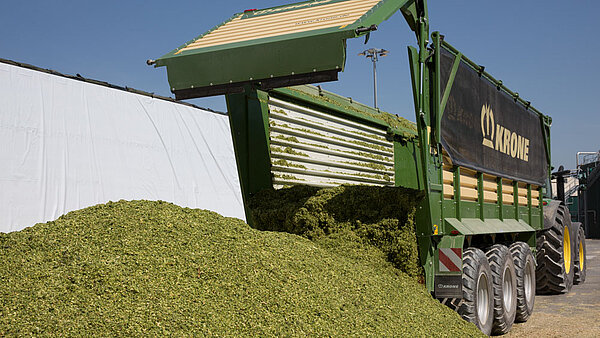

• Unloading takes less than a minute

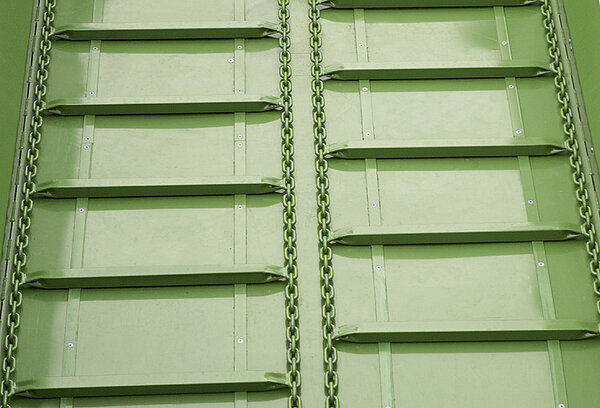

• Extra strong scraper conveyor with four chains

The ­KRONE forage transport wagons TX 460 and TX 560 are the specialist machines that really boost the efficiency of your harvest fleet – courtesy of the extra loading space that is gained from the sloping scraper conveyor, the very high scraper conveyor speed and the single-piece frame design that increase the payload.

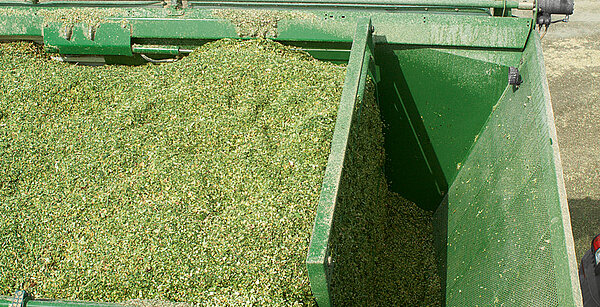

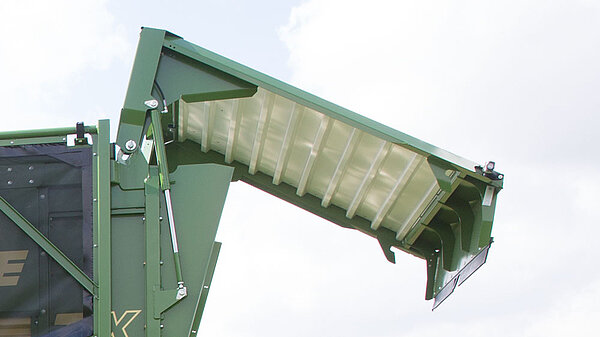

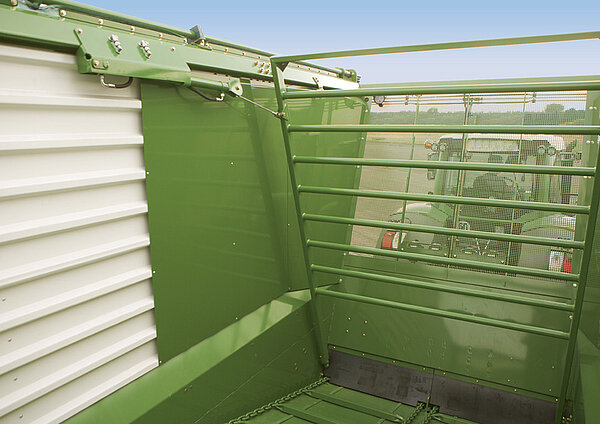

• Unloading aid for fast and optimal emptying

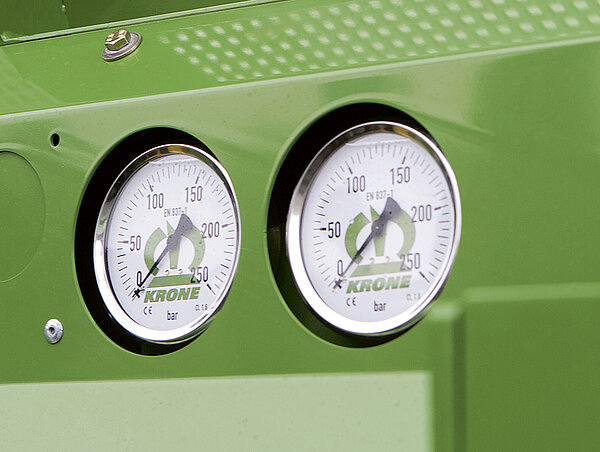

• Filling level indicator via pressure monometer

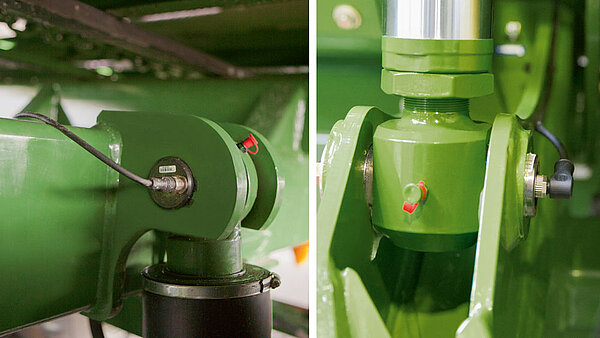

• Weighing device via gauging pins on the drawbar

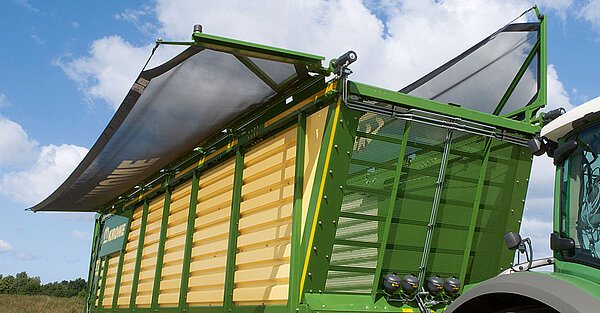

• Loading space cover for loss-free transport

A well-equipped machine facilitates operation, is safe and increases productivity. A specially developed unloading aid for the ­KRONE forage transport wagon ensures the unloading process is completed even faster and more efficiently. Further equipment options include loading space covers, weighing devices, extra lights and reflective contour markings for added safety and maximum operator comfort.

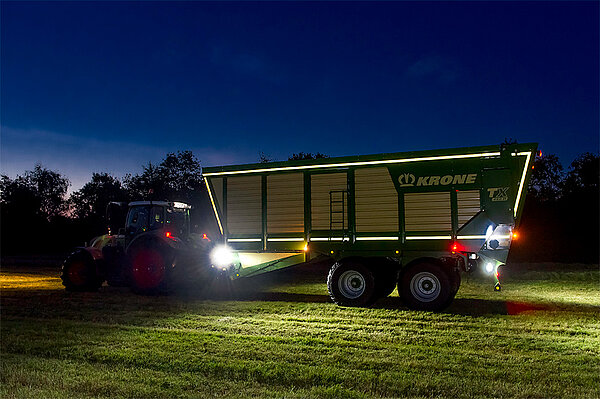

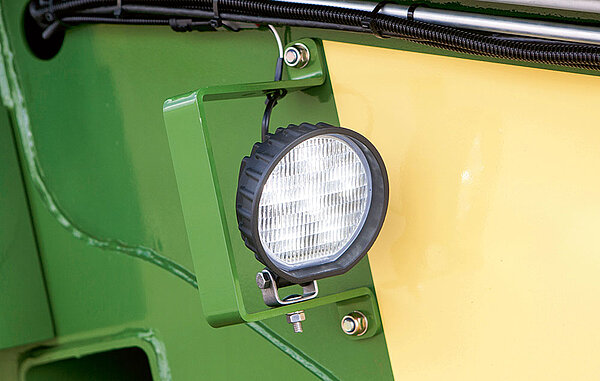

• With LED working lights safe in the field and on the road
• Excellent all-round view at night

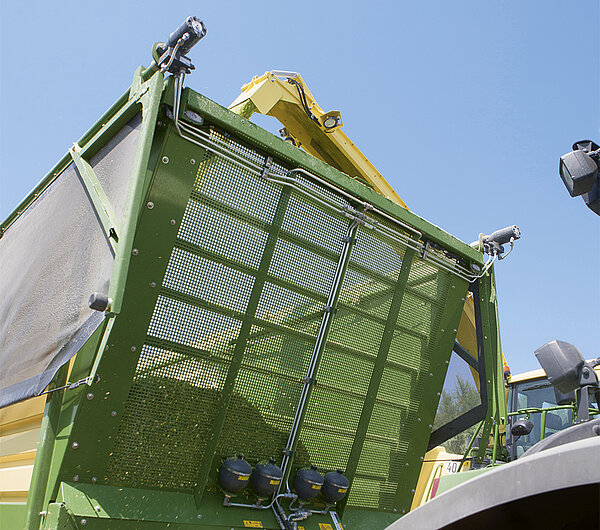

• Optional internal and rear-view cameras provide great visibility.

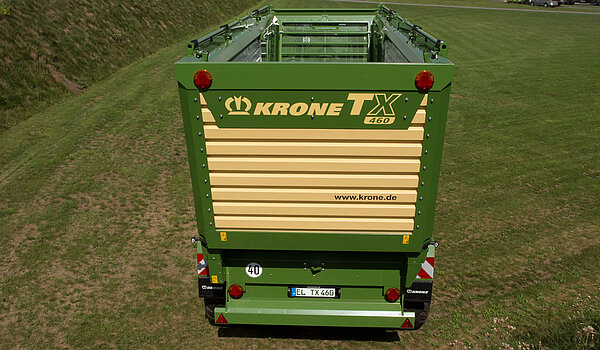

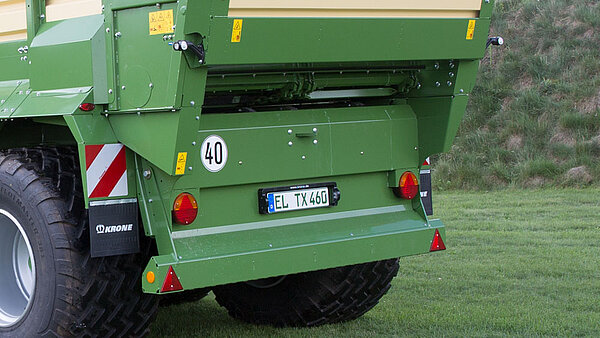

• Optional contour marking

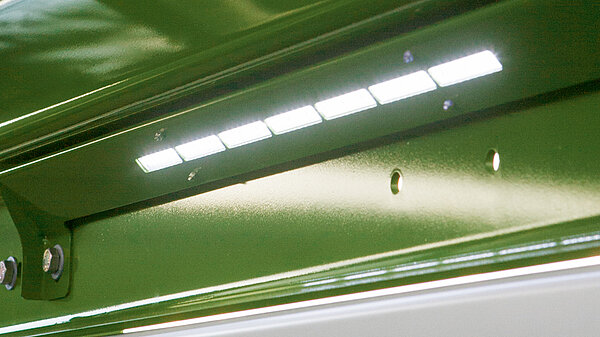

Powerful internal LED lights, up to four external LED working lights, highly visible sidelights and reflective strips as well as the camera with display screen combine to offer superior operator comfort at night and maximum safety.

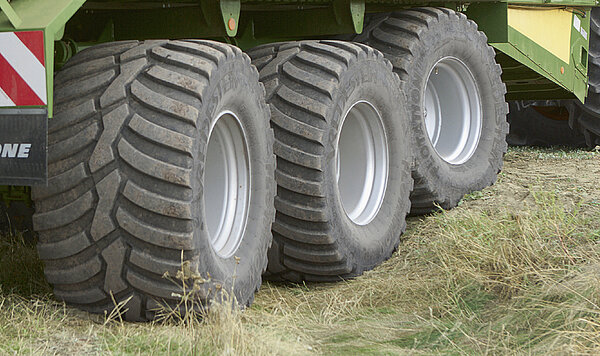

• Roll-resistant – safe handling on the road
• Maximum stability on slopes, reduced risk of rollover

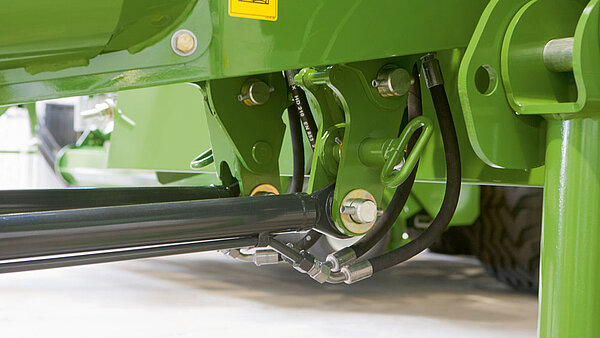

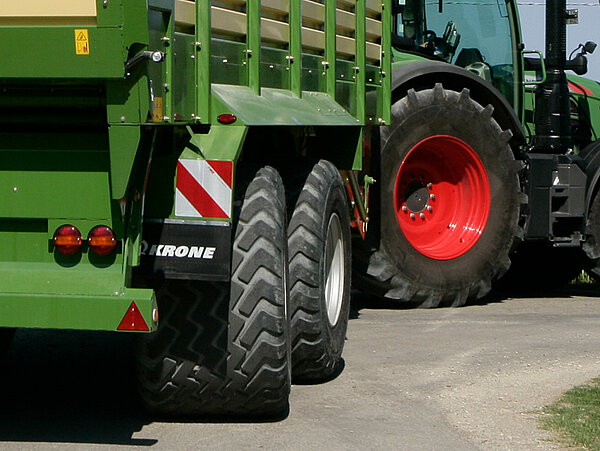

• With axle steering – protection of the sward, less tyre wear

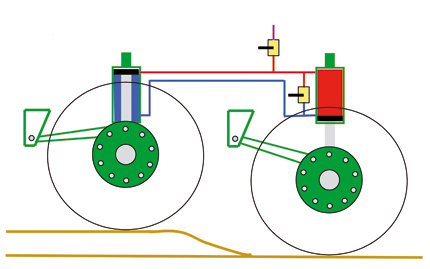

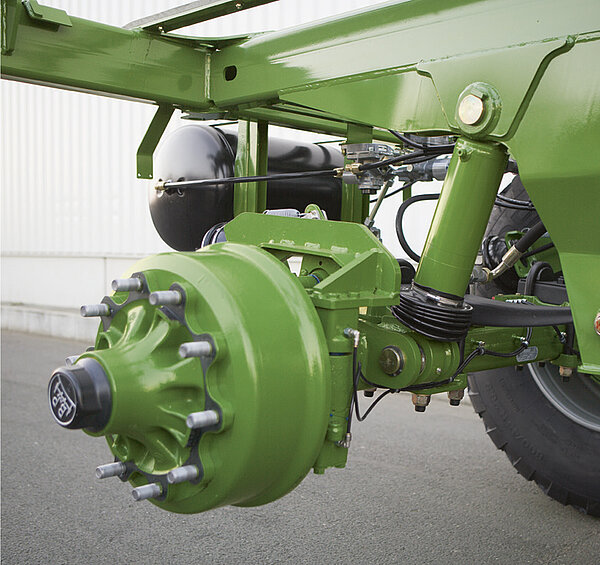

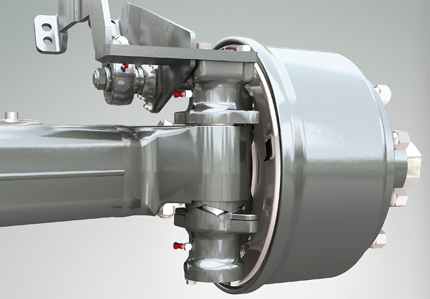

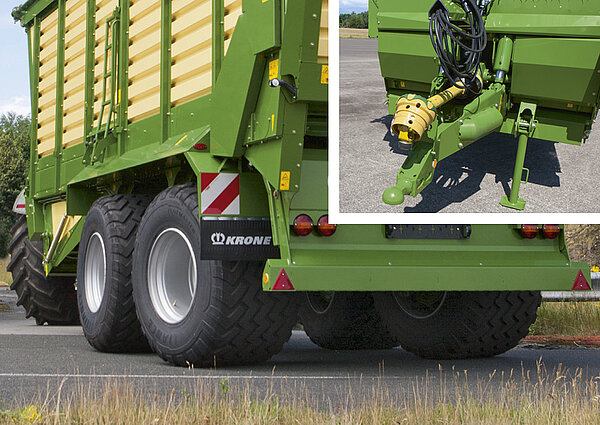

The trailing and positively steered tandem units with hydraulic compensation meet all practical requirements. Each running gear offers stability on the slope and roll stability when travelling at speed and around bends. These axles offer maximum safety and operator comfort.

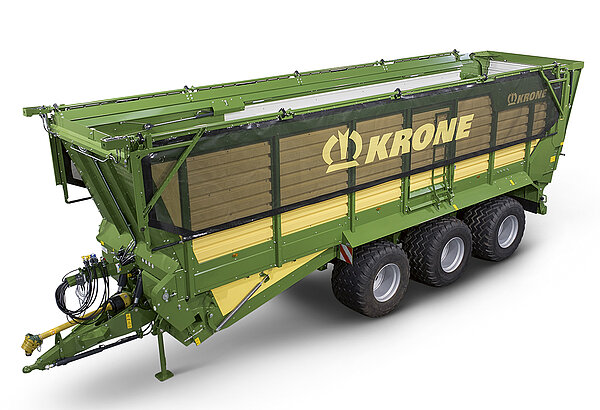

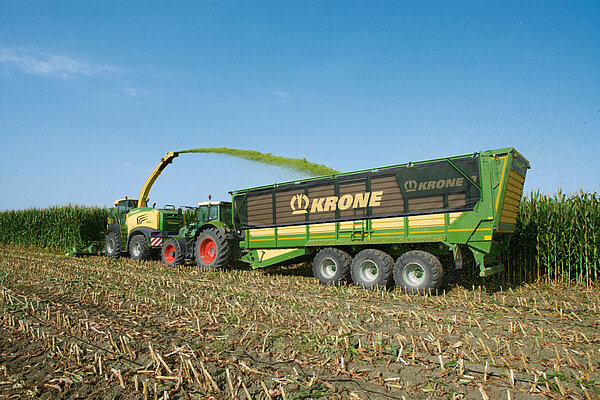

• Tridem axle assembly with load distribution on 3 axles
• Permissible axle load 27 t (TX 460) or 30 t (TX 560)
• Maximum ride comfort, stable and roll-resistant

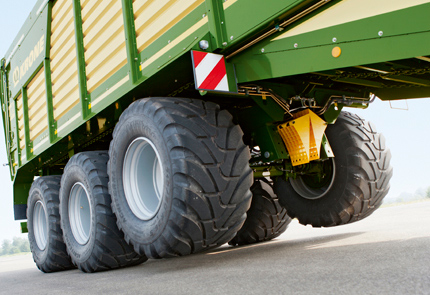

• Steered front and rear axles, lift axle at front
• Option on TX 460, standard feature on TX 560

With the tridem axle assembly, the bottom hitching and ball-head attachment 80, the TX forage transport wagons can be driven with a permissible axle load of 27 t (TX 460) or 30 t (TX 560) and at a maximum speed of 40 or 60 km/h. The running gear, designed for heavy loads, is extremely comfortable and reliable with hydraulic compensation and hydro-pneumatic suspension.

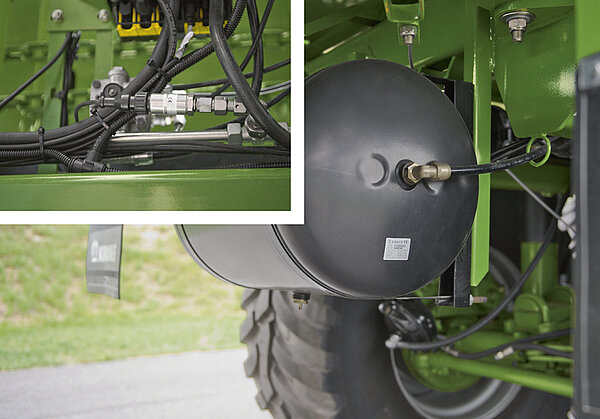

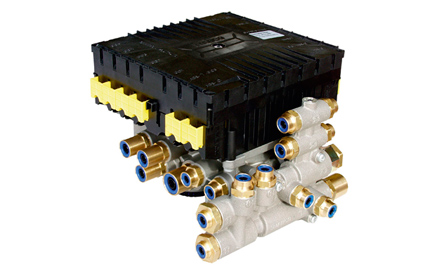

• Electronic braking system EBS with
  - automatic load-dependent braking force control ALB
  - anti-lock braking system ABS
  - roll stabilisation system RSS

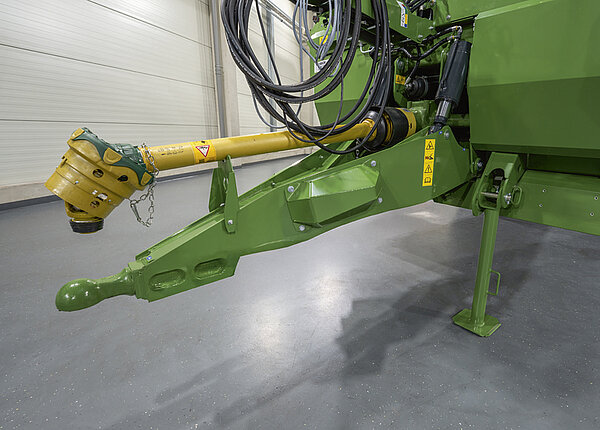

• Hydraulic or electronic forced steering as an option

Increasingly bigger and faster tractors, higher transport capacities and payloads call for a thorough rethink when it comes to safety. Therefore, ­KRONE offers an electronic brake system that has already proven its worth in the commercial vehicle sector. Intelligent steering axles help protect the swath and provide added safety.

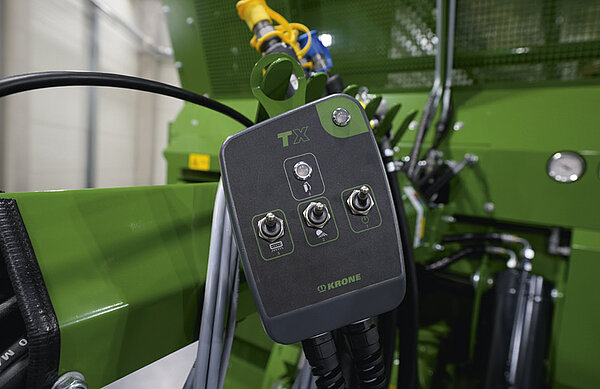

• Clear concept
• Easy operation
• CCI-ISOBUS

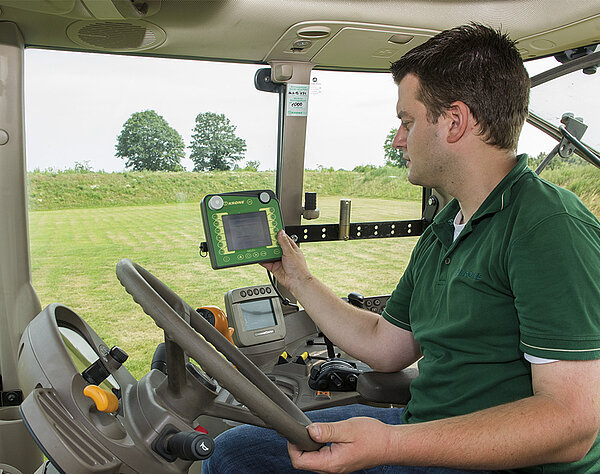

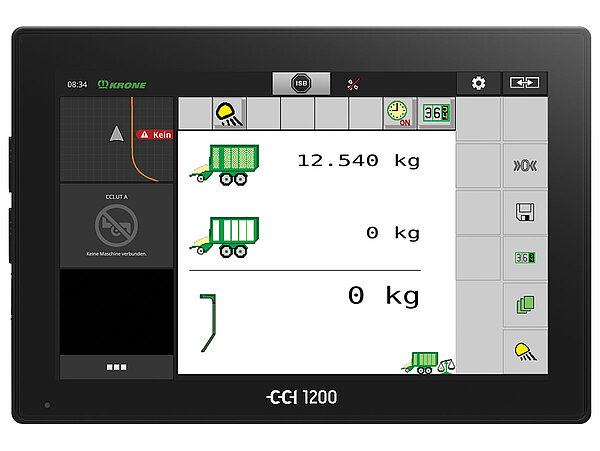

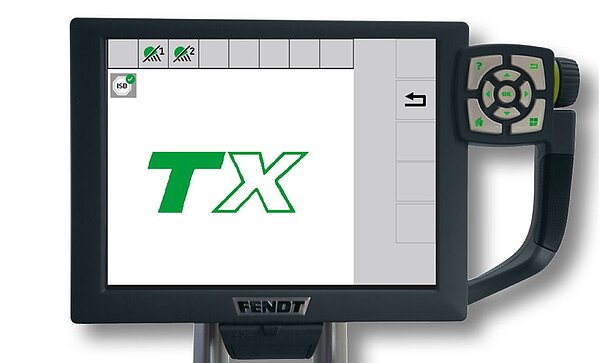

No electronic or operating terminals are required to work with a basic version of the TX. It is simply operated via the tractor‘s regulating valves. Other optional features, such as the electronic weighing device and electronic axle steering, can easily be operated via the CCI 1200 ISOBUS terminal or the ISOBUS tractor terminal.

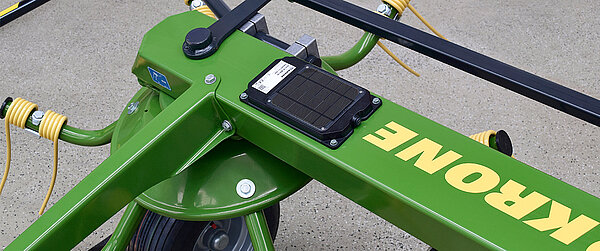

SmartConnect Solar enables you to connect machines in real time. The self-sufficient telemetry unit automatically records the location, route and operating hours independently of the manufacturer and completely autonomously thanks to the solar panel and rechargeable battery. On transport vehicles, the number of loads can also be recorded by mounting it on the tailgate. All of the relevant data is thus available for transparent and fair invoicing – perfect for leasing or service companies.

The DS 500 operator terminal: The DS 500 terminal has a backlit display which shows the current settings. This terminal provides all Alpha features plus auto height control on Swadro 1400 Plus after the height was set on one rotor. An optional joystick is available to off er even more convenient operation.
