MX

Self-loading and forager-filled forage wagons – 33 bis 40 m³

MX

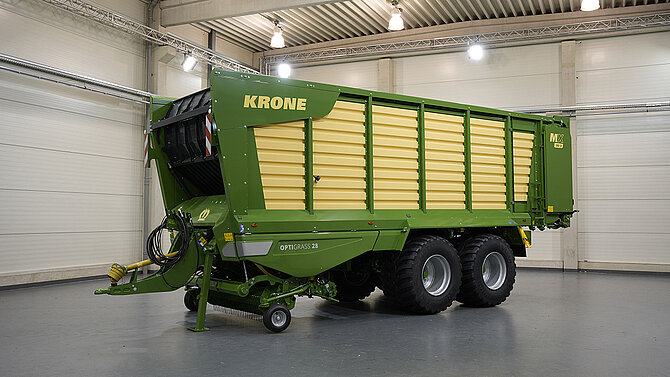

Self-loading and forager-filled forage wagons

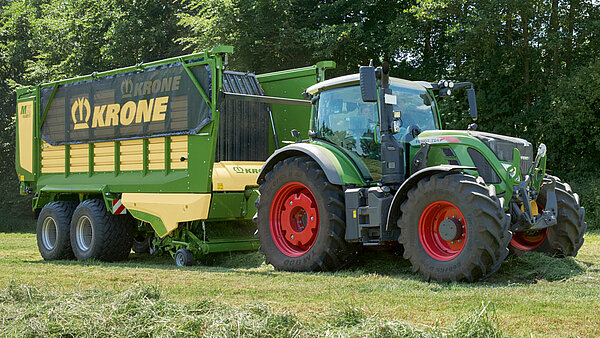

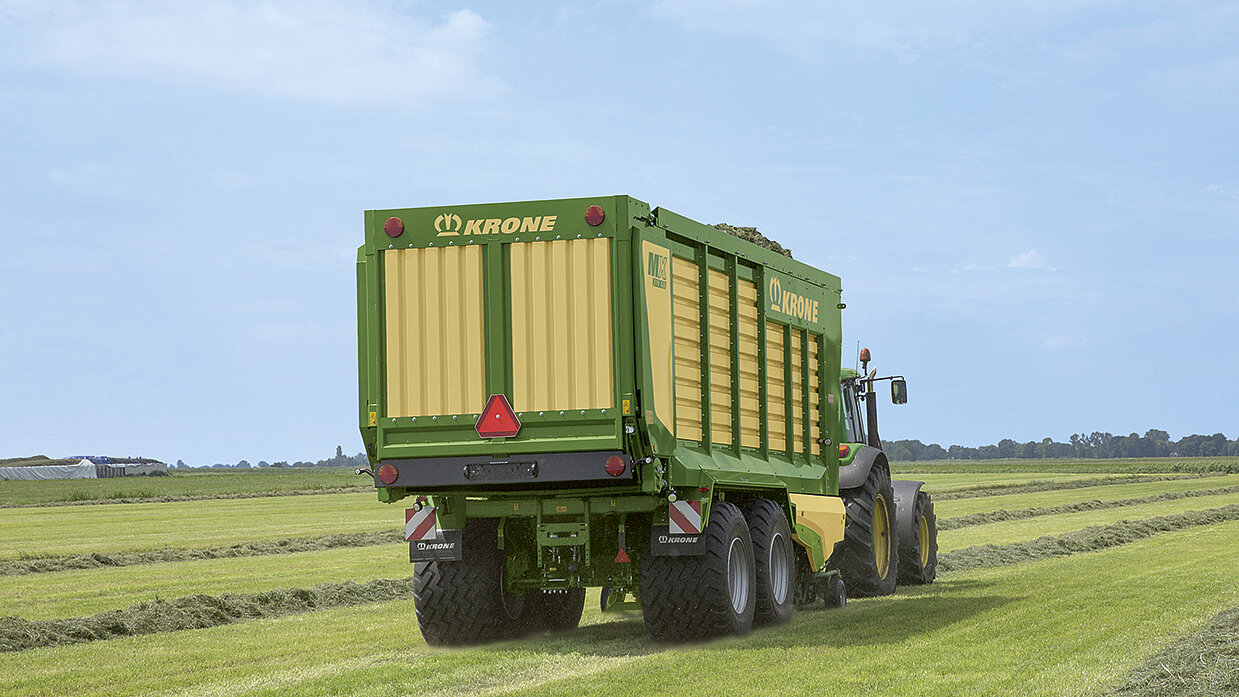

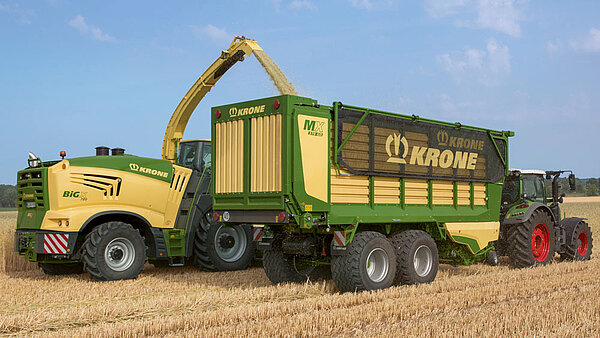

MX defines our range of high-capacity forage wagons that offer capacities from 33 m³ to 40 m³. Genuine dual-purpose forage wagons, they run in both the grass harvest chain as self-loading machines with discharge  rollers and in the maize transport chain as forager-filled silage trailers. These machines score on versatility, reliability, efficiency and flexibility.

  • Fully-featured dual-purpose forage wagon
  • Articulated drawbar for high ground clearance
  • Drawbar suspension for comfortable rides
  • Camless pick-up, W-arrangement of tines
  • Massive cut-and-feed rotor with wide Hardox tine plates
  • Sloping chain-and-slat floor
  • Steel structure and steel floor
  • Pivoting headboard
Please accept marketing-cookies to see this content.

Product video

KRONE MX – Self-loading and forager-filled forage wagon

MX defines our range of high-capacity forage wagons that offer capacities from 33 m³ to 40 m³. Genuine dual-purpose forage wagons, they run in both the grass harvest chain as self-loading machines with discharge rollers and in the maize transport chain as forager-filled silage trailers. These machines score on versatility, reliability, efficiency and flexibility.

Product features

MX Self-loading and forager-filled forage wagons
MX Self-loading and forager-filled forage wagons

MX defines our range of high-capacity forage wagons that offer capacities from 33 m³ to 40 m³. Genuine dual-purpose forage wagons, they run in both the grass harvest chain as self-loading machines with discharge rollers and in the maize transport chain as forager-filled silage trailers. These machines score on versatility, reliability, efficiency and flexibility.

  • Fully-featured dual-purpose forage wagon
  • „„Articulated drawbar for high ground clearance
  • „„Drawbar suspension for comfortable rides
  • „„Camless pick-up, W-arrangement of tines
  • Massive cut-and-feed rotor with
  • wide Hardox tine plates
  • „„Sloping chain-and-slat floor
  • „„Steel structure and steel floor
  • „„Pivoting headboard

MX defines our range of high-capacity forage wagons that offer capacities from 33 m³ to 40 m³. Genuine dual-purpose forage wagons, they run in both the grass harvest chain as self-loading machines with discharge rollers and in the maize transport chain as forager-filled silage trailers. These machines score on versatility, reliability, efficiency and flexibility.

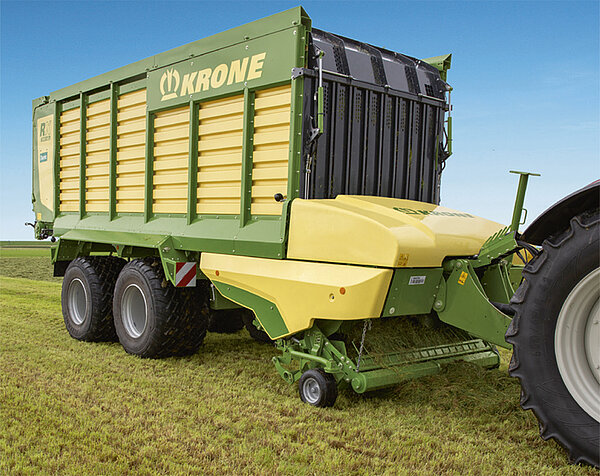

The dual-purpose wagons MX 330 GL and GD

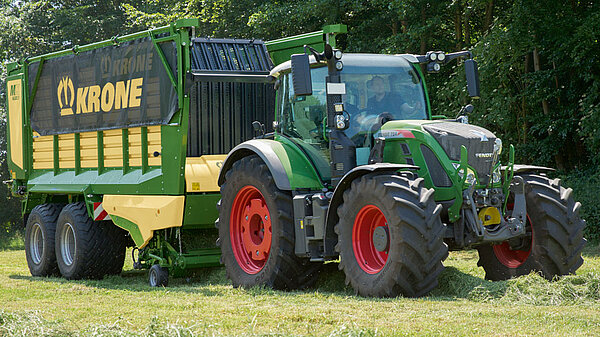

  • Self-loading and forager-filled wagons
  • Steel structure & steel extensions, 33 m³ capacity
  • Hydraulic silage hatch at the top of the headboard
  • Discharge rollers are an option
  • Rotor cutter with 41 blades

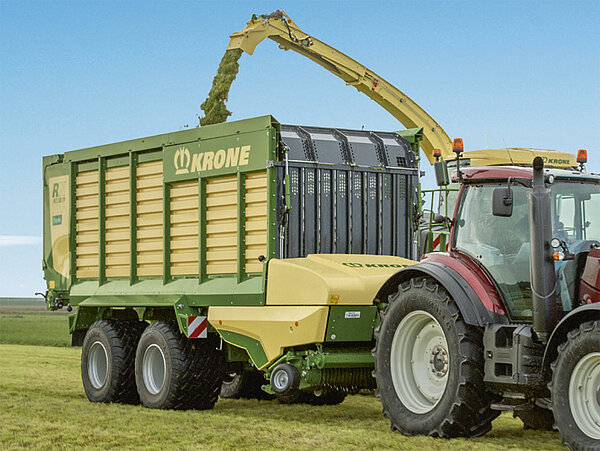

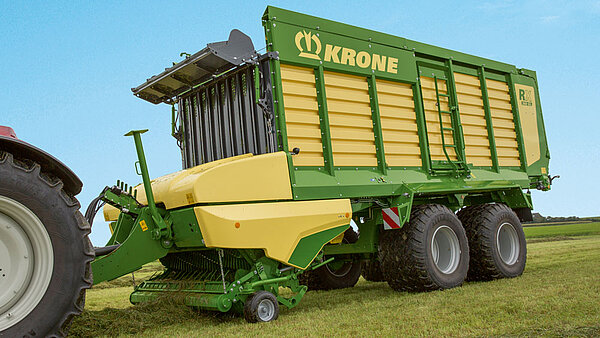

Its steel sides, the volume of 33 m³, and the massive tandem-axle chassis with steered rear axle make the MX 330 a genuine dual-purpose wagon. The machine is available with discharge rollers (GD) and without the rollers (GL). A hydraulically operated silage hatch at the top of the headboard is standard-fit for easier filling from the leading forager.

The dual-purpose wagons MX 370 GL/GD and 400 GL
  • Self-loading and forager-filled wagons
  • 37 m³ or 40 m³ capacities
  • The all-steel machine is available with and without discharge rollers – as GD or GL version

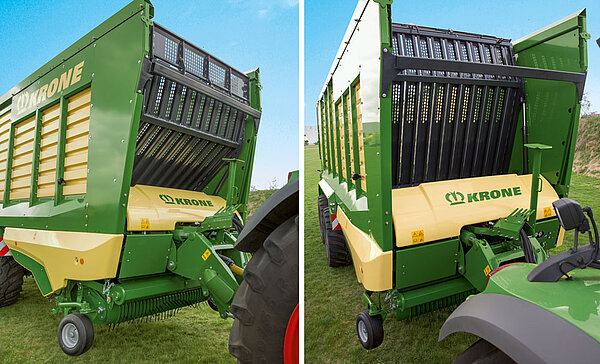

  • Hydraulic pivoting headboard
  • Rotor cutter with 41 blades

The two dual-purpose forage wagons MX 370 and MX 400 feature the proven designs and innovative technical solutions of the RX series as the base for implementing new and practical ideas.

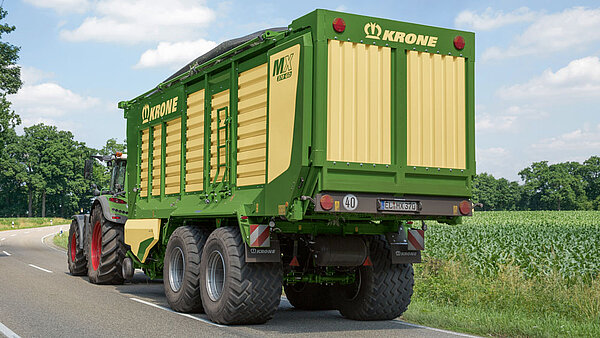

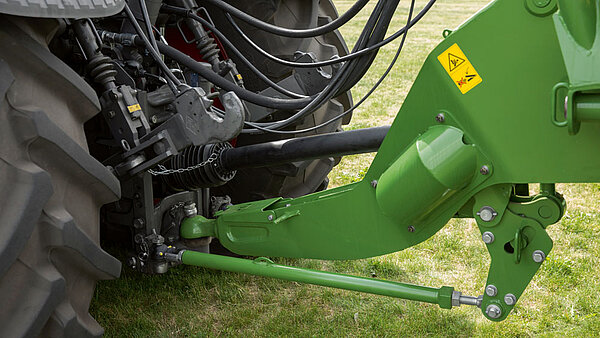

Suspension system, drawbar and running gear
  • Standard ball hitch for bottom attachment

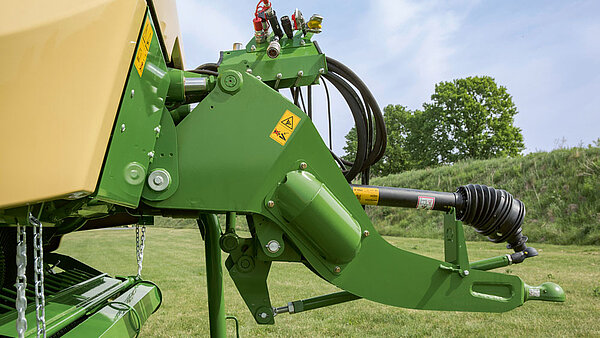

  • Articulated drawbar for high ground clearance
  • Drawbar suspension for comfortable rides

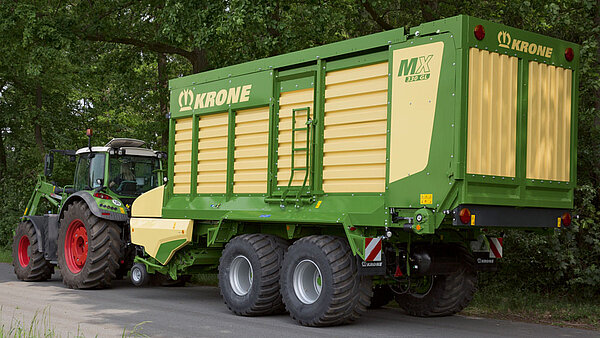

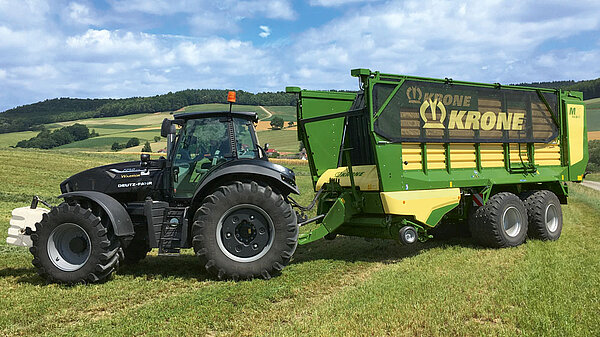

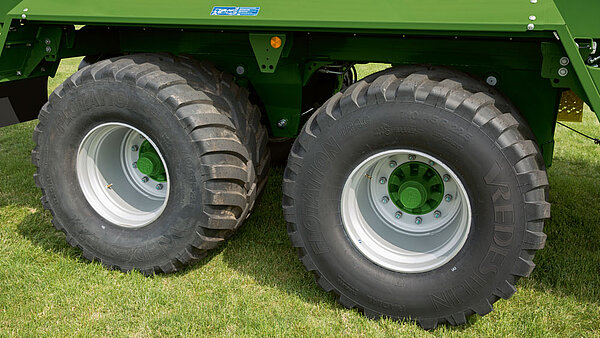

Varying conditions, high payloads, challenging unloading sites and long-distance travel at speed are challenges that call for a very stable, safe and shockload cushioning running gear. It is down to the steered tandem axle, the ball hitch and the articulated drawbar that the MX is up to any job and situation.

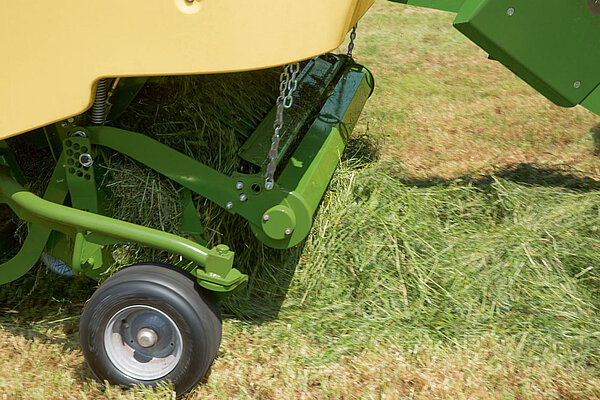

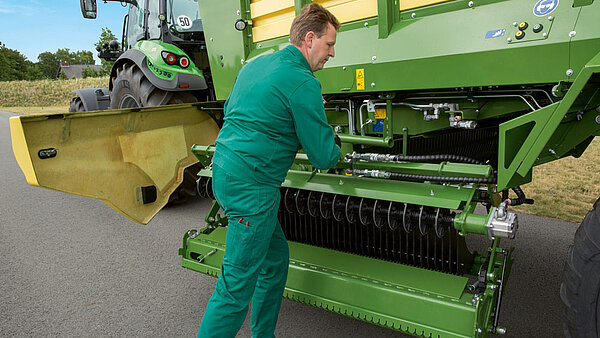

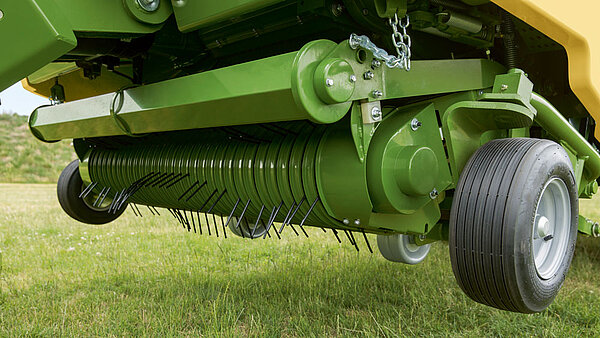

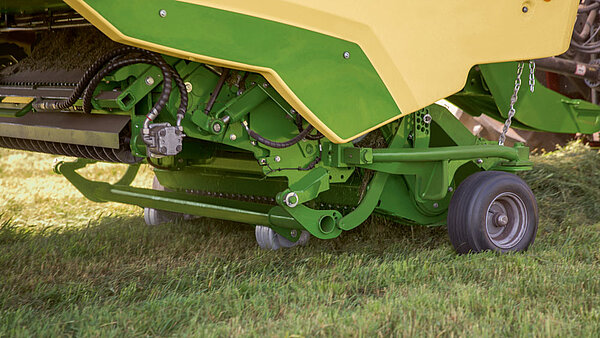

Pick-up EasyFlow KRONE
  • Wide pick-up for clean and comprehensive gathering
  • No cam track means few moving parts, minimized service and maintenance and quiet running
  • 6.5 mm double tines with large-diameter coils

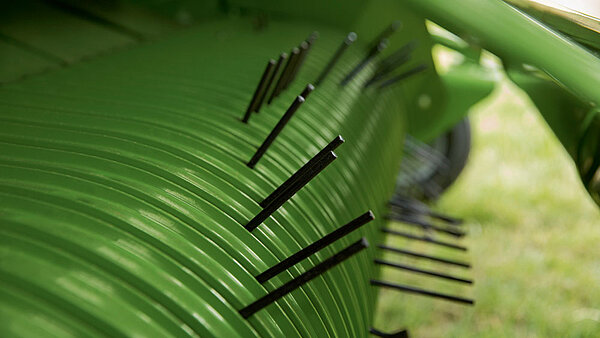

  • Tines arranged in a ‘W’-line

The EasyFlow pick-up excels by virtue of clean and thorough gathering – at high work rates and at low wear rates even in difficult conditions. Made up of few moving parts, the unit runs extremely quietly and dependably.

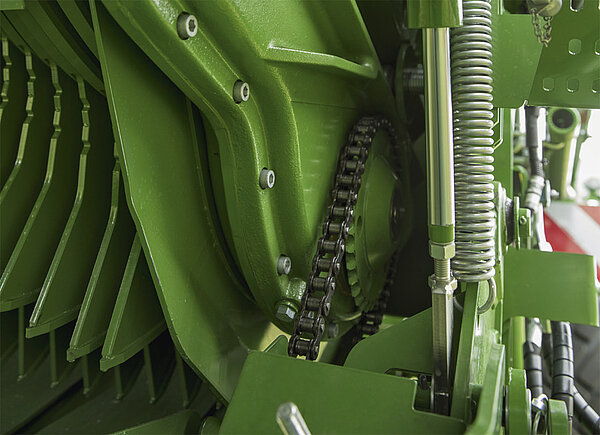

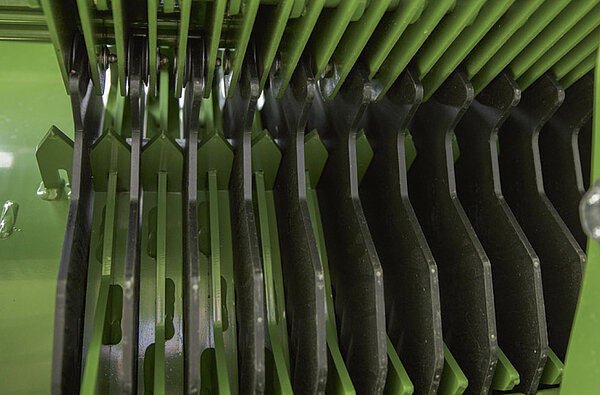

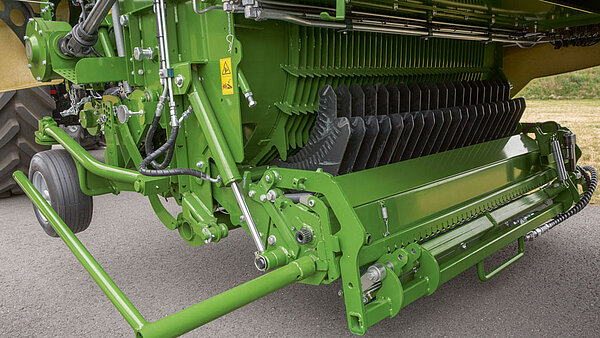

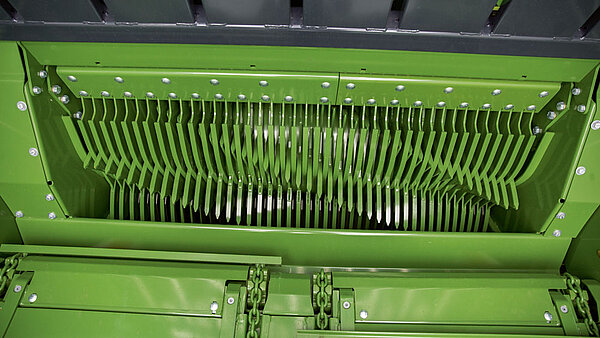

The KRONE rotor cutter
  • Wide and large-diameter rotor for high intake rates
  • Helical tine arrangement for quiet running

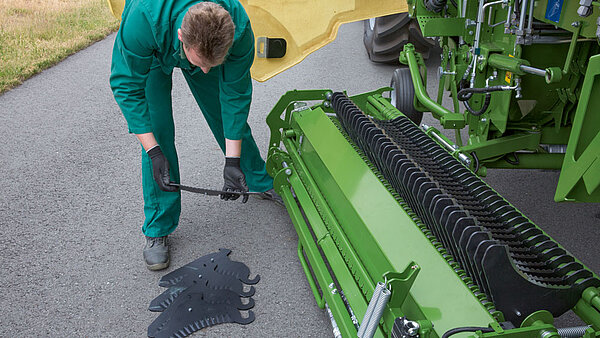

  • Easy pulling blades for exact and scissor-like cuts

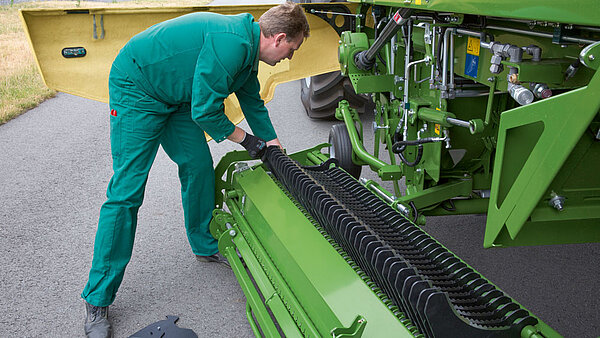

Powerful and low-maintenance, the MX rotor operates very smoothly and feeds the crop super gently and consistently into the machine. The rotor blades give exact cuts, stay sharp for a long time and are very easy to replace.

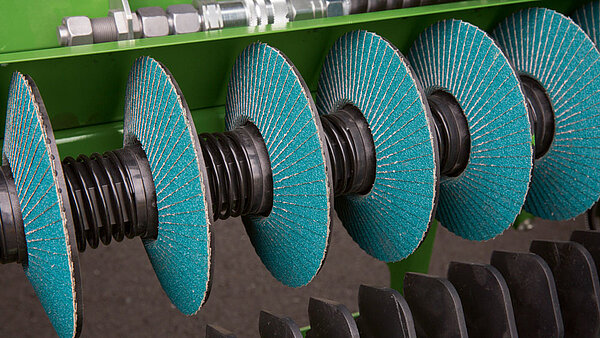

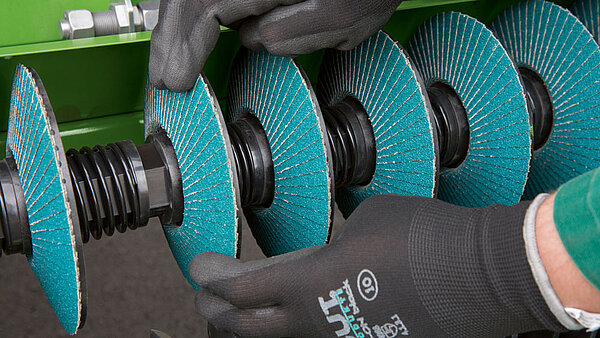

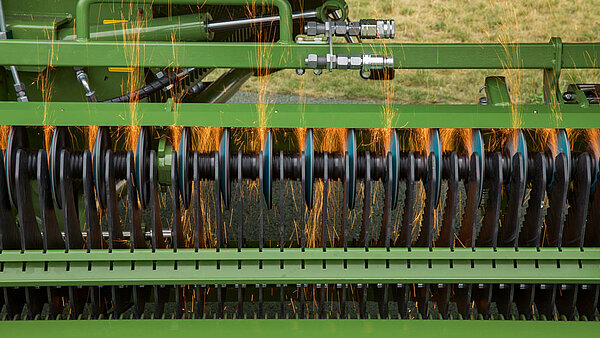

The KRONE SpeedSharp blade grinder
  • Grinds the blades conveniently and quickly
  • Sharpening 41 blades takes less than four minutes
  • Gives all blades a consistent grind
  • Reduces fuel consumption and improves the forage quality

The automatic SpeedSharp blade grinder sharpens your blades in just a few minutes. Grinding the blades right on the machine and on the site gives you great flexibility and saves time you would otherwise spend on replacing dull blades – an important detail when your aim is consistently high-quality forage and good fuel economy.

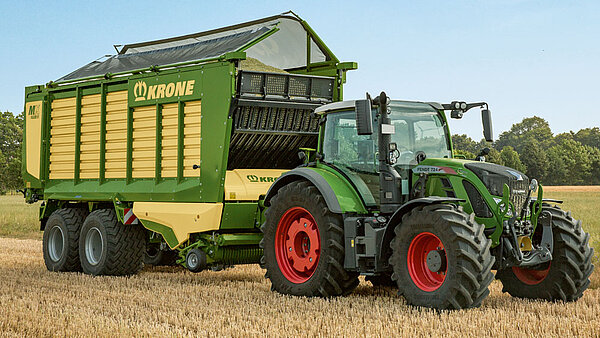

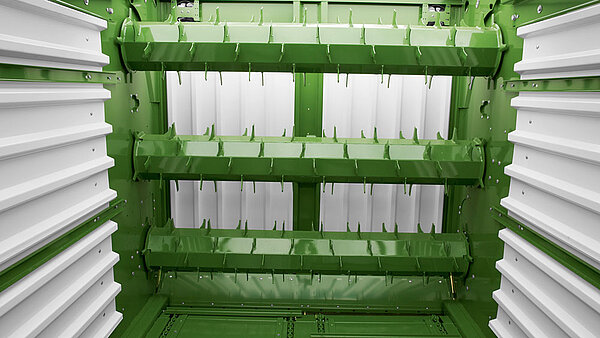

The loading area
  • Steel structure and steel floor
  • Pivoting headboard

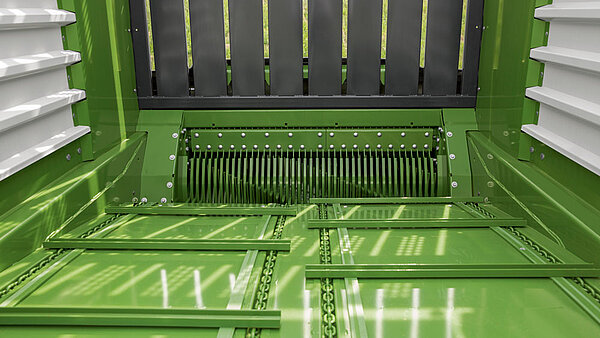

  • Double chain-and-slat floor slopes at front
  • With or without discharge rollers

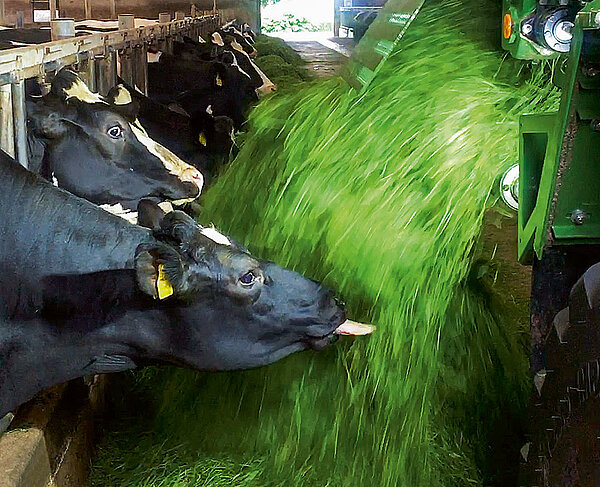

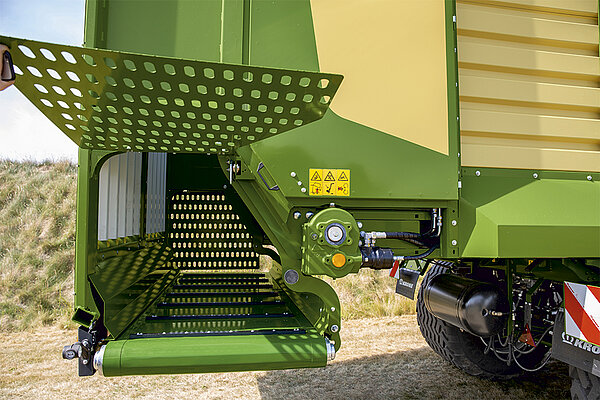

  • The optional cross conveyor belt unloads fresh forage directly on to the feed passage

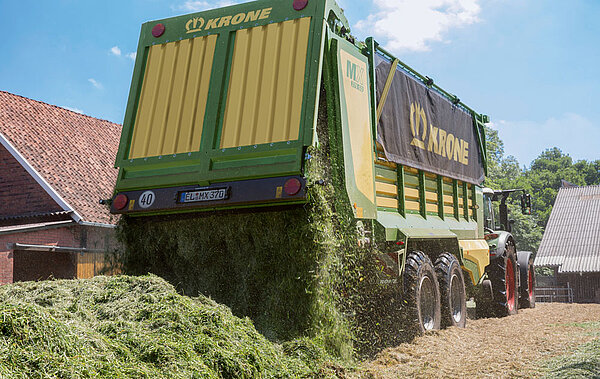

The MX dual-purpose forage wagons with steel structures are made to excel in the toughest conditions. The pivoting headboard makes for easier filling - both from the forage harvester or the pick-up. The heavy-duty chain-and-slat floor feeds even heavy forage swiftly and consistently to the rear for unloading.

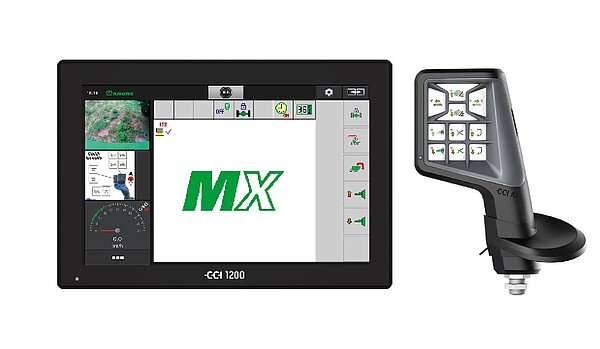

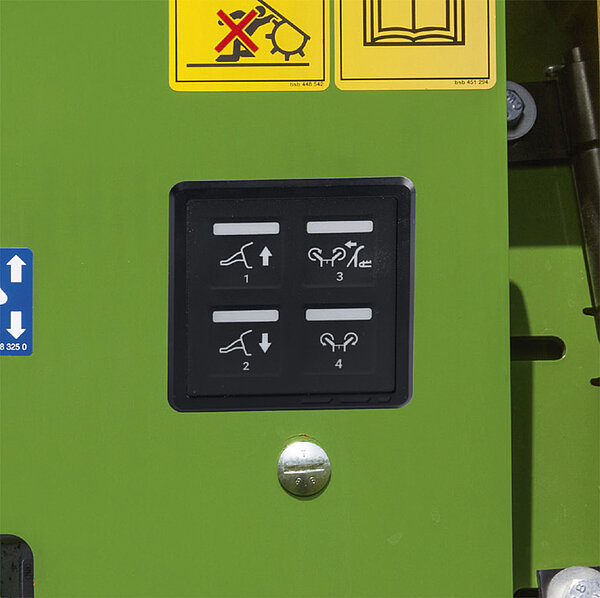

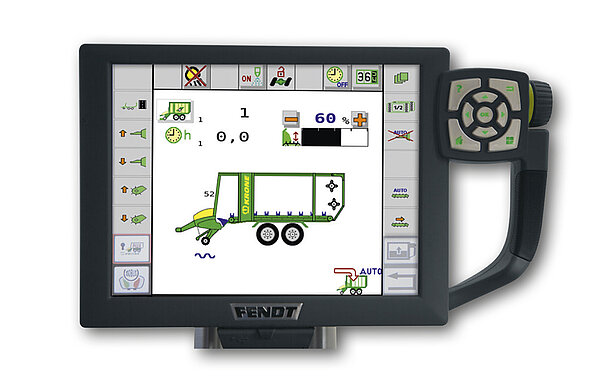

The KRONE on-board electronic system & operator terminals
  • Clear and convenient
  • Easy and user friendly
  • ISOBUS compatible

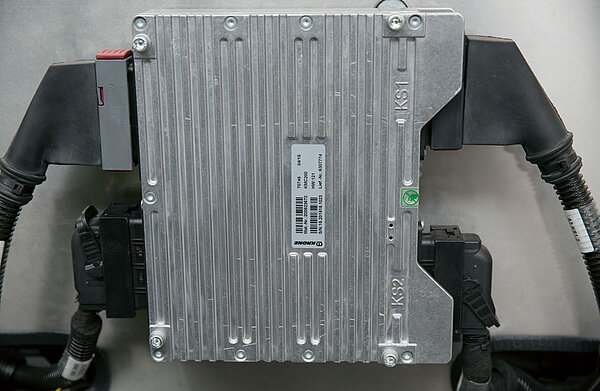

The KRONE Comfort on-board box increases operator comfort as it makes for much easier and faster control of the MX dual-purpose forage wagon. Two different terminals are available to cater for different applications and needs.

Models

MX
MX 330 GL MX 370 GL
Designation loading and forage wagon loading and forage wagon configure
Capacity (m³) 33 37 configure
Pick-up working width (m) 1.80 1.80 configure
Cutting length (mm) with 41 blades 37 37 configure
No. of discharge rollers - - configure
Power requirement (kW/hp) 88 / 120 103 / 140 configure
configure configure

High-capacity forage wagons that offer capacities from 33 m³ to 40 m³
