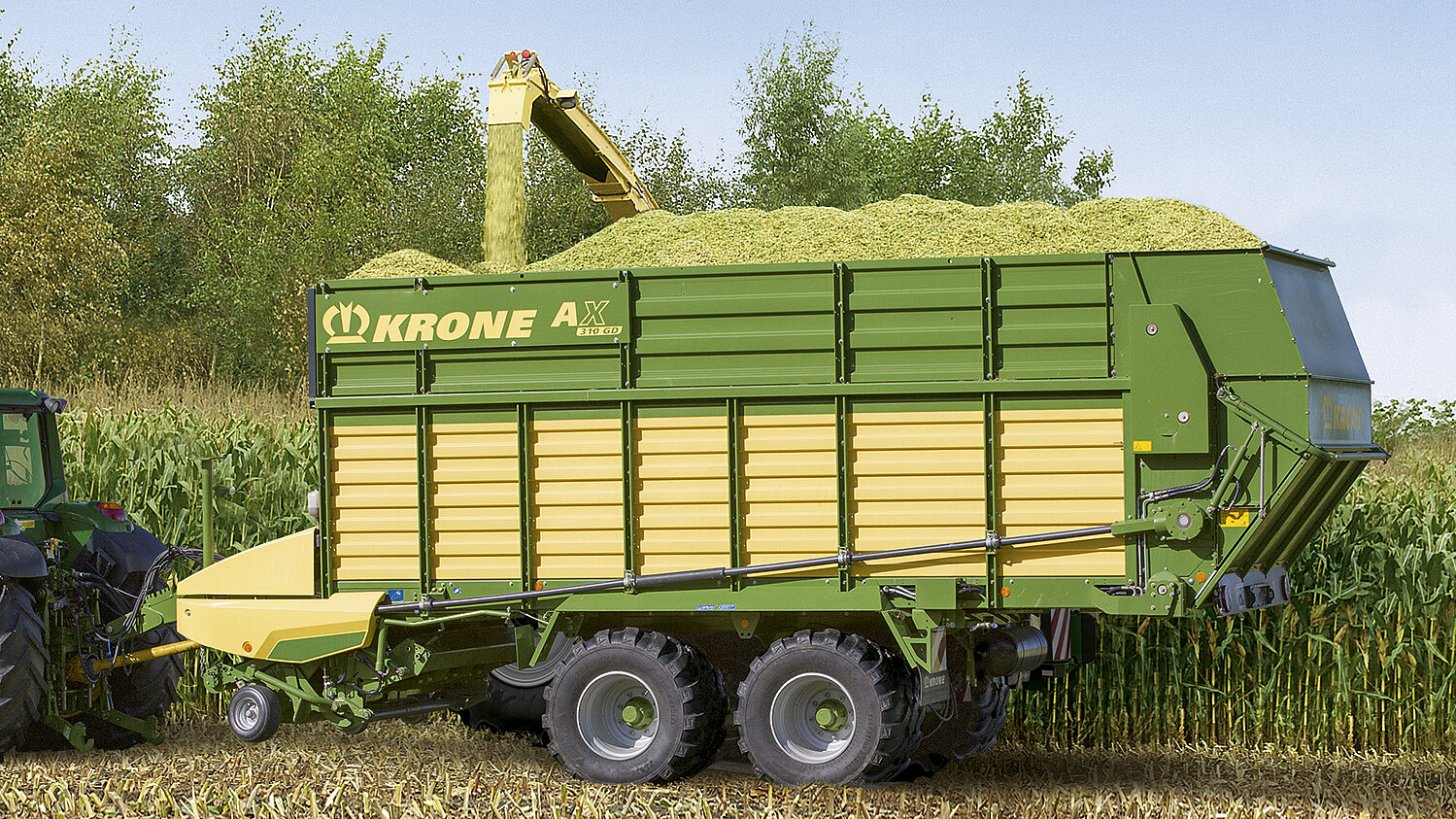

Self-loading and forager-filled forage wagons – 25 to 31 m³

AX

Self-loading and forager-filled forage wagons

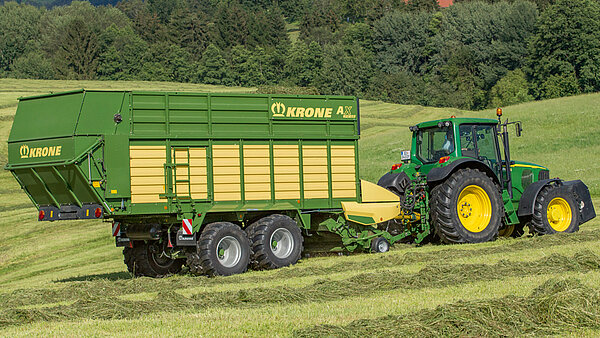

AX defines our range of forage wagons that offer capacities from 25 m³ to 31 m³ and which are available with different extensions that give users the flexibility to use them as self-loading forage wagons with and without discharge rollers but also as silage trailers in the maize harvest chain. AX suggests maximum reliability, efficiency and flexibility.

  • Camless pick-up for very quiet running and hard wearing
  • Tines in W-arrangement for optimum crop flow
  • Wide and large-diameter rotor for high intake rates
  • Central blade group control system for 0, 16, 16, 32 blades
  • Sloping floor enhances crop feed efficiencies
  • Articulated drawbar for high ground clearance
  • Drawbar suspension for comfortable rides
  • Sprung or unsprung tandem axles with hydraulic levelling system
  • ISOBUS compatible
Please accept marketing-cookies to see this content.

Product video

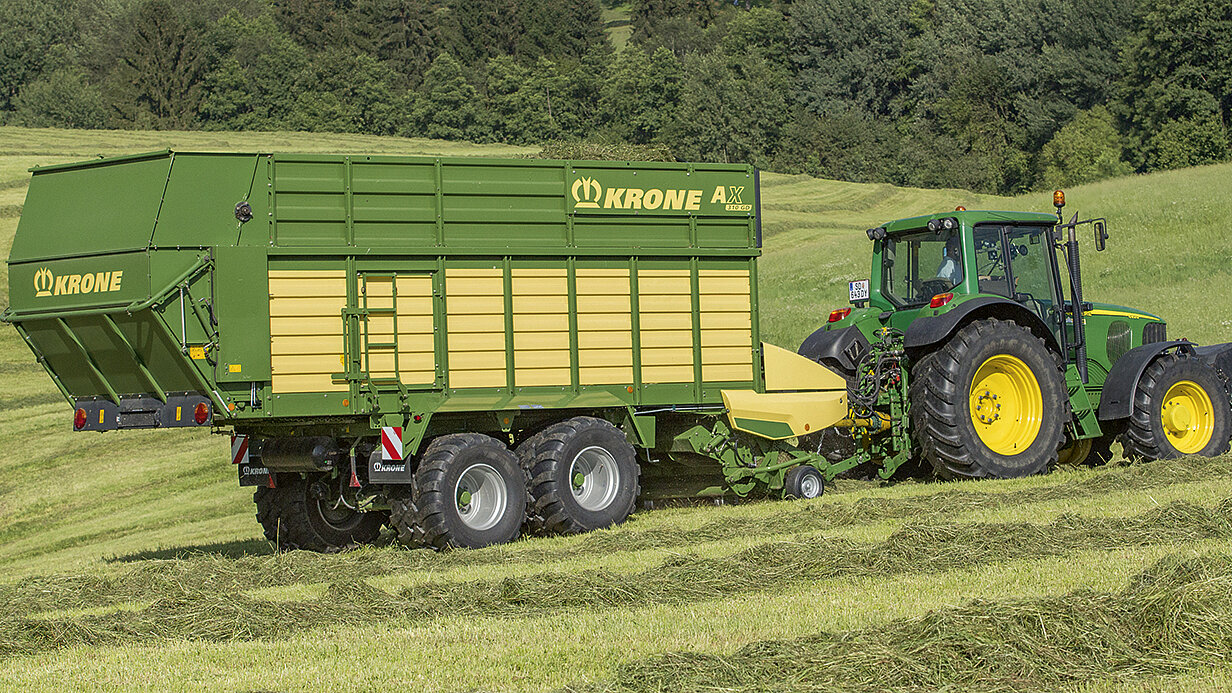

KRONE AX – Self-loading and forager-filled forage wagons

AX defines our range of forage wagons that offer capacities from 25 m³ to 31 m³ and which are available with different extensions that give users the flexibility to use them as self-loading forage wagons with and without discharge rollers but also as silage trailers in the maize harvest chain. AX suggests maximum reliability, efficiency and flexibility.

Product features

Self-loading and forager-filled forage wagons AX
Self-loading and forager-filled forage wagons AX
Self-loading and forager-filled forage wagons AX
Self-loading and forager-filled forage wagons AX

AX defines our range of forage wagons that offer capacities from 25 m³ to 31 m³ and which are available with different extensions that give users the flexibility to use them as self-loading forage wagons with and without discharge rollers but also as silage trailers in the maize harvest chain. AX suggests maximum reliability, efficiency and flexibility.

    • Camless pick-up for very quiet running and hard wearing
    • Tines in W-arrangement for optimum crop flow
    • Wide and large-diameter rotor for high intake rates
    • Central blade group control system for 0, 16, 16, 32 blades
    • Sloping floor enhances crop feed efficiencies
    • Articulated drawbar for high ground clearance
    • Drawbar suspension for comfortable rides
    • Sprung or unsprung tandem axles with hydraulic levelling system
    • ISOBUS compatible

    AX defines our range of forage wagons that offer capacities from 25 m³ to 31 m³ and which are available with different extensions that give users the flexibility to use them as self-loading forage wagons with and without discharge rollers but also as silage trailers in the maize harvest chain. AX suggests maximum reliability, efficiency and flexibility.

    AX 250 · 280 · 310 dual-purpose wagons
    AX 250 · 280 · 310 dual-purpose wagons
    • AX 250 self-loading forage wagons with discharge rollers: 25 m³ volume; collapsible or steel extensions
    • AX 280 self-loading forage wagons with discharge rollers: 28 m³ volume; collapsible or steel extensions or silage extensions
    • AX 310 self-loading forage wagons with discharge rollers: 31 m³ volume; steel extensions or silage extensions

    The new generation of AX self-loading forage wagon models score on their great diversity as they offer different extensions and capacities to adapt to many different conditions and applications. These extremely efficient machines serve as forager-filled but also as selfloading forage wagons with or without discharge rollers For maximum flexibility and utilization that earns you excellent returns on your investment.

    AX 310
    AX 310

    The AX 310 as the flagship of the range offers a capacity of 31m³. It has a rugged steel extensions as standard specification or silage extensions as an option. The AX 310 D is the model that features either two or three discharge rollers at the rear. The 1,800 mm wide pick-up feeds the material to the rotor cutter with 32 blades that chops the material in scissor-like cuts to 45 mm lengths.

    AX 280
    AX 280

    Offering a volume of 28 m³, the AX 280 self-loading forage wagon with discharge rollers is the most versatile machine in the AX range and can be specified with many different extensions – collapsible hay extensions, steel extensions or silage extensions. The AX 280 D model is specified with either two or three discharge rollers. The 1,800 mm wide pick-up feeds the material to the rotor cutter with 32 blades that chop the material in scissor-like cuts to 45 mm lengths.

    AX 250
    AX 250

    Offering a volume of 25 m³, the AX 250 self-loading forage wagons with discharge rollers is the most compact model in the AX range and is available with collapsible or steel extensions. The AX 250 D is the model that also has discharge rollers at the rear. The camless and 1,800 mm wide pick-up gathers the material effectively and feeds it to the rotor cutter which in turn lines up 32 blades that cut the material to 45 mm chops at a minimum tractor input.

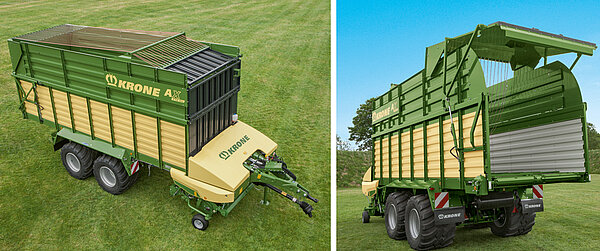

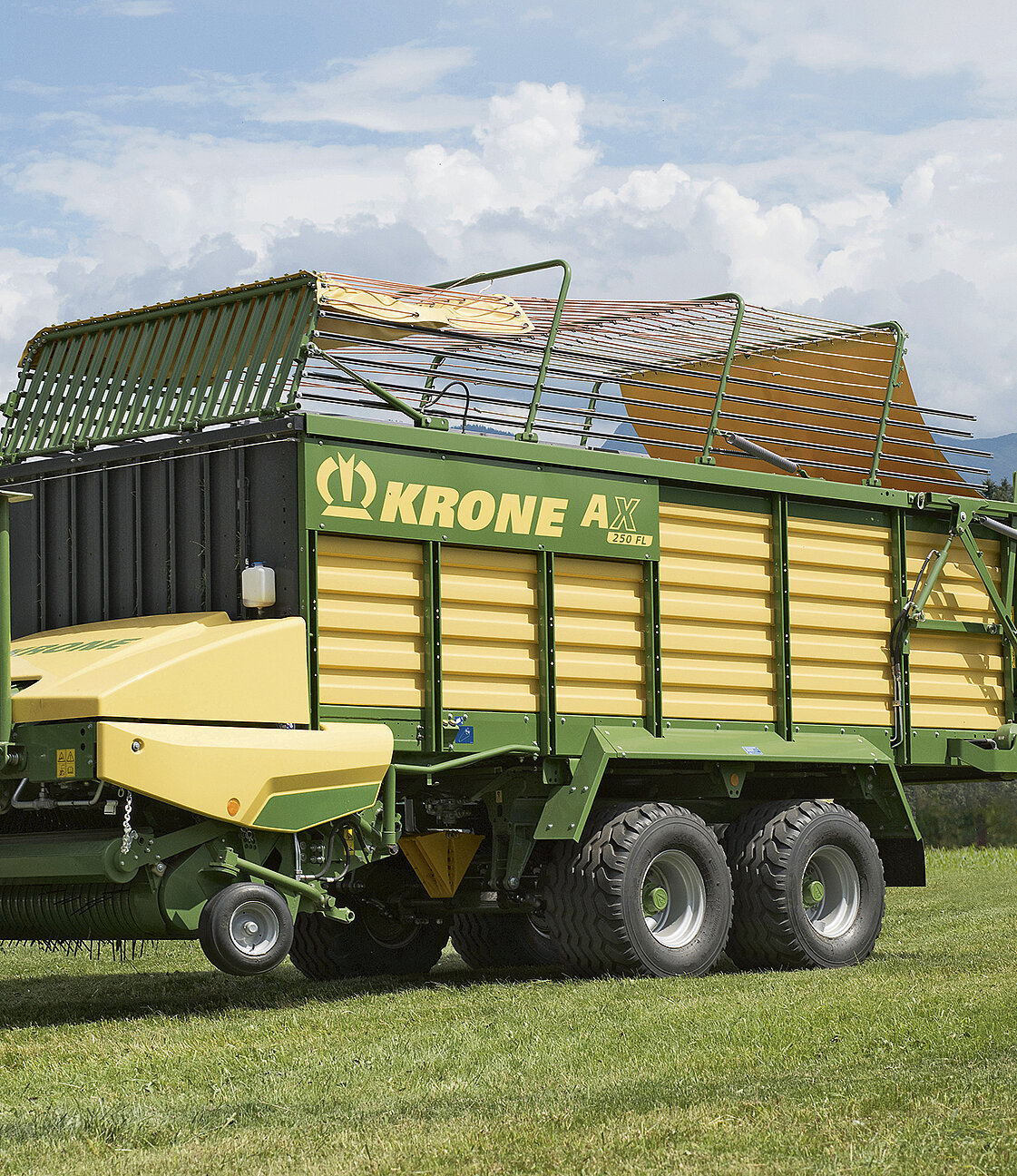

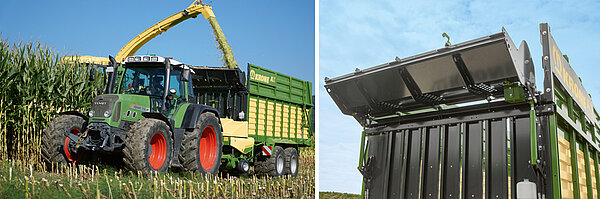

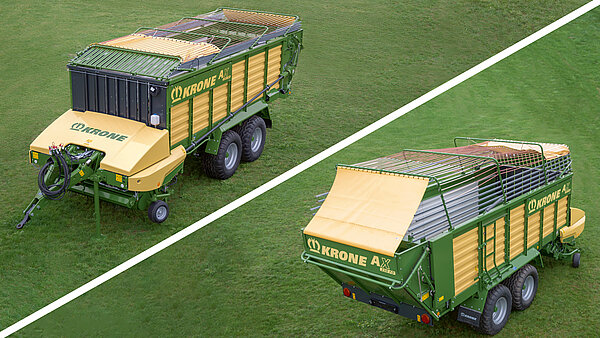

    AX extensions
    AX extensions
    • Collapsible folding grid are ideal in low buildings
    • Rugged steel extensions with tensioning ropes secure the crop for loss-free transport
    • Silage extensions with headboard hatch and no ropes for use as a silage trailer

    The large choice of available extensions makes the KRONE AX a universal forage wagon. Collapsible hay extensions allow the AX to enter low buildings or pass under low gates whereas steel extensions give it a head start as a self-loading forage wagon. But it can also take silage extensions including the headboard hatch, which make it the perfect dual-use forage wagon / silage trailer.

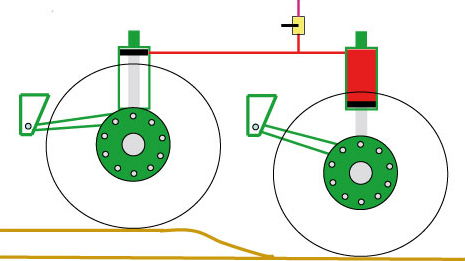

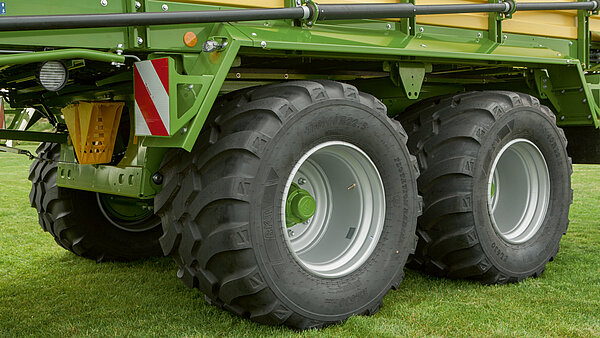

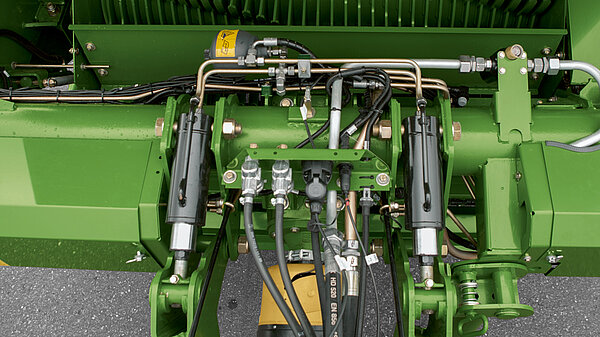

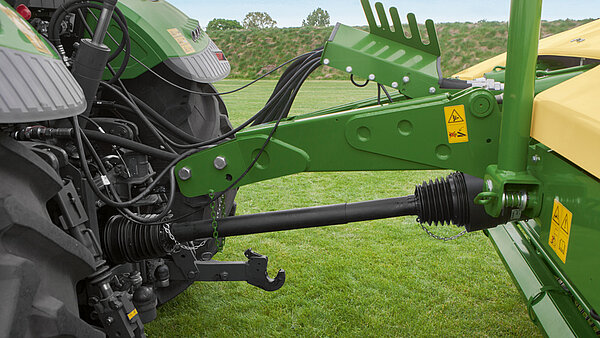

    Suspension system, drawbar and running gear
    Suspension system, drawbar and running gear

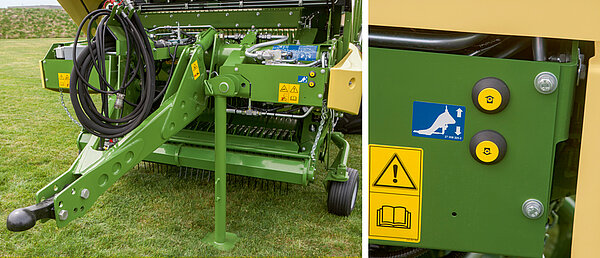

    • Bottom- or top-mount drawbar
    • Articulated drawbar for high ground clearance
    • Drawbar suspension for comfortable rides
    • Sprung or unsprung tandem axles with hydraulic levelling system

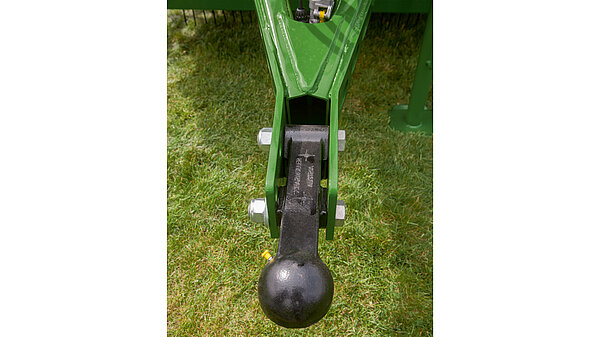

    Varying harvest conditions, difficult situations on the clamp, high payloads, and longdistance travel at speed call for a running gear and a drawbar that offer maximum strength and stability as well as superior operator comfort and safety. Choose between the top-mounting hitch ring, the bottom-mount pivoting drawbar, the ball hitch or the articulated drawbar. This and the caster-steer tandem axles with either mechanical or hydraulic suspension allow you to specify your machine to your individual needs.

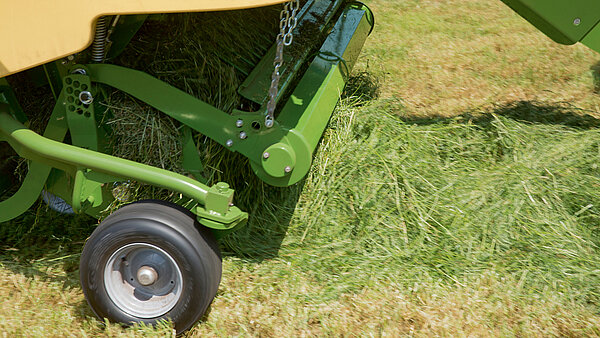

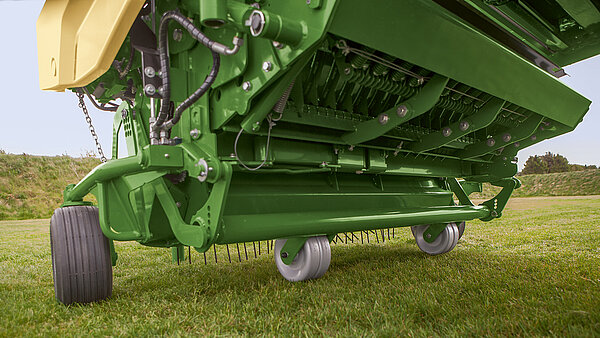

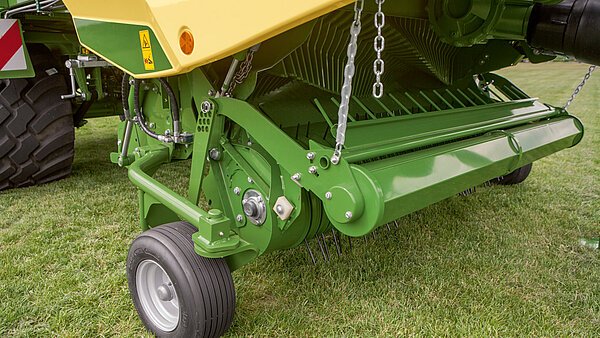

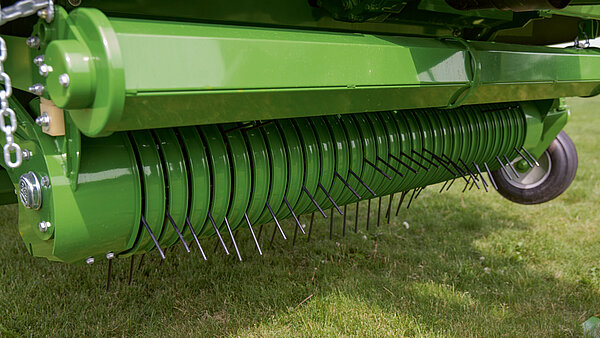

    The KRONE EasyFlow pick-up
    The KRONE EasyFlow pick-up
    • Wide pick-up for clean and comprehensive gathering
    • Camless pick-up for very quiet running and hard wearing
    • Tines in W-arrangement for optimum crop flow
    • Optimum ground contouring by gauge wheels and side pivot

    The camless EasyFlow pick-up has only few moving parts and therefore runs extremely quietly, causing little wear. Boasting a wide work width, it gathers wide swaths tidily also in bends. Undulations are no problem at all, thanks to the pivoting suspension along with the gauge wheels.

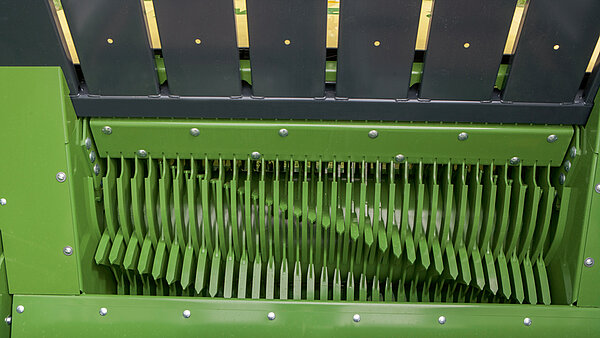

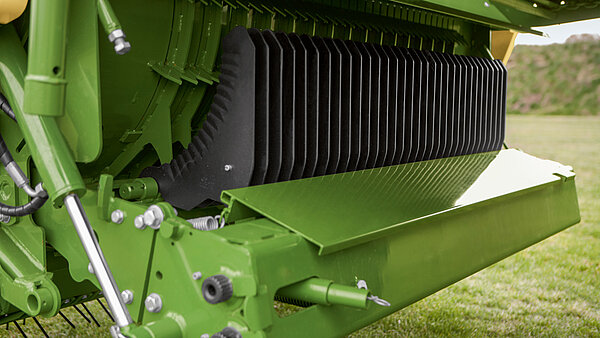

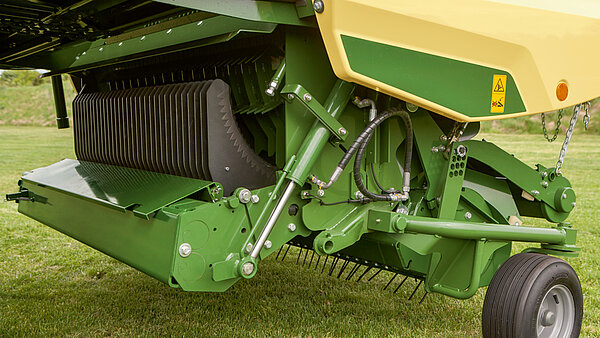

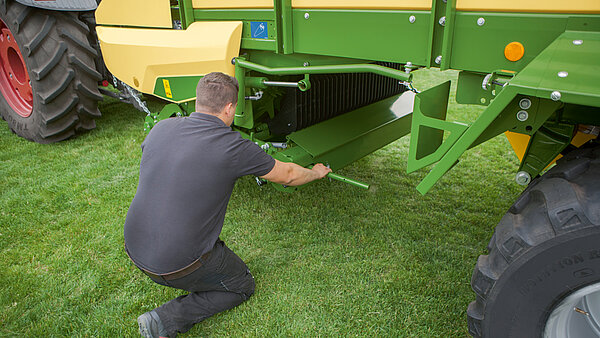

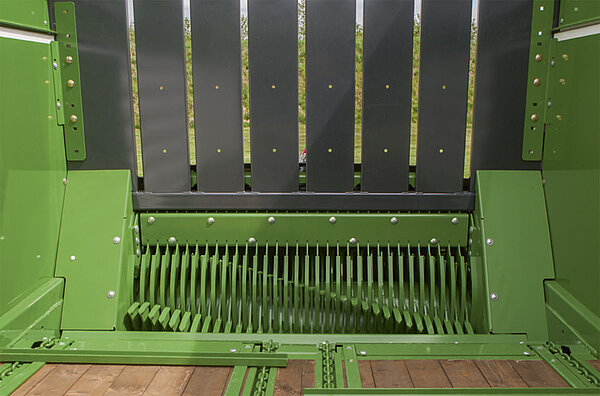

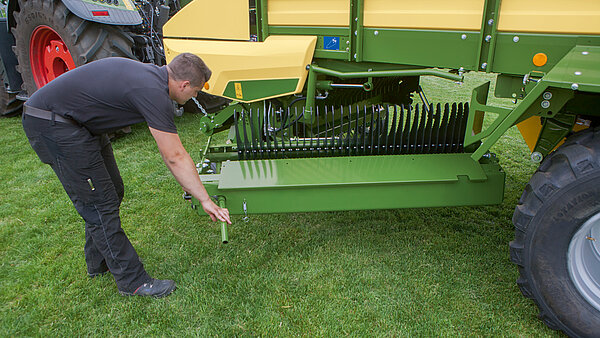

    The KRONE rotor cutter
    The KRONE rotor cutter
    • Wide and large-diameter rotor for high intake rates
    • Helical tine arrangement for quiet running

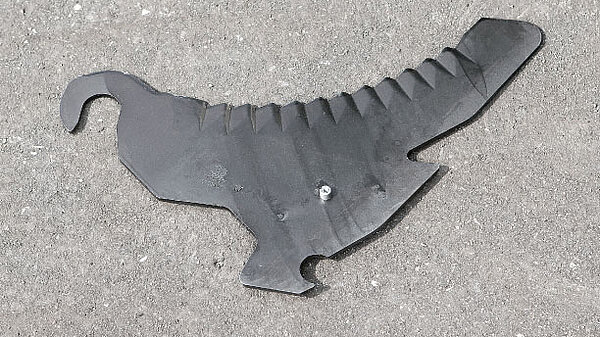

    • Easy pulling blades for exact and scissor-like cuts

    Powerful and low-maintenance, the AX rotor cutter operates very smoothly and gently. The blades give exact cuts, stay sharp for a long time and are very easy to replace.

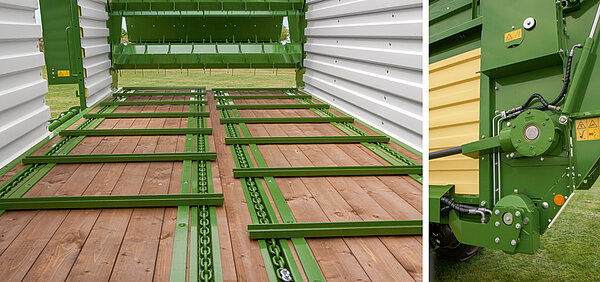

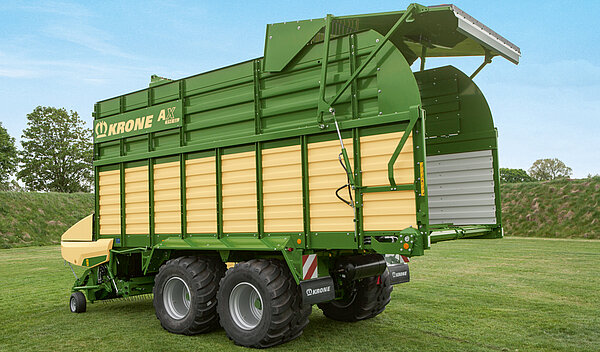

    The load area
    The load area
    • Wide and sturdy channel-steel frame
    • Sloping floor enhances crop feed efficiencies
    • Strong chains and infinitely variable advance speed

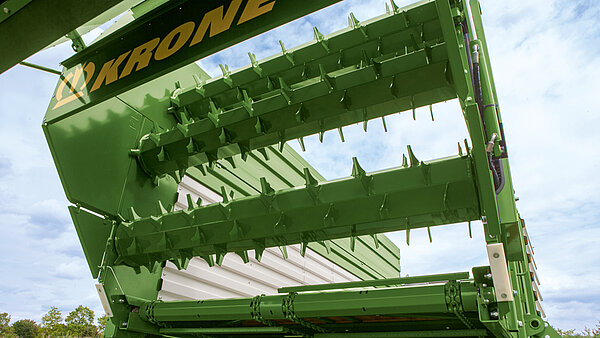

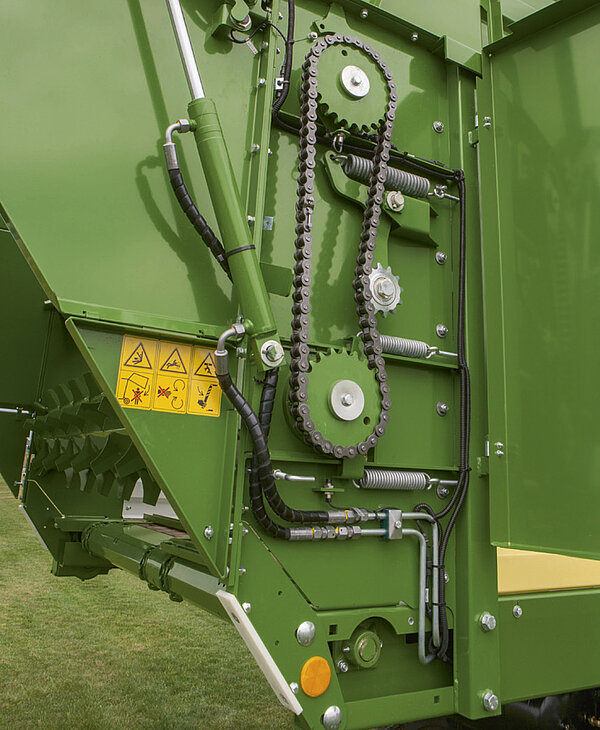

    • Discharge rollers with V-shaped tines distribute the material uniformly

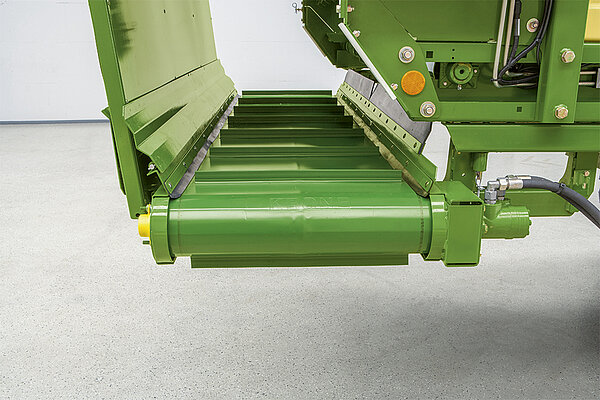

    • The optional cross conveyor belt unloads fresh forage directly on to the feed passage

    The sloping floor on AX increases its throughput rates and minimizes tractor input. The extremely robust chain-and-slat floor offers stepless adjustment of its advancing speed, a feature that has been asked for by many farmers.

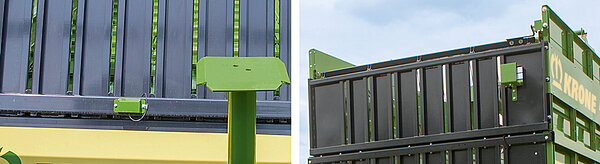

    The KRONE automatic loading system
    The KRONE automatic loading system
    • Entry-level floor advance control
    • Shuts off the floor chains automatically on machines with discharge rollers
    • PowerLoad auto loading system for forage wagons with steel extensions

    No matter whether your AX self-loading wagon has the entry-level auto loading or the
    optional PowerLoad system, each system ensures the machine is filled to capacity
    whilst maintaining compression at optimum levels. With the wagon filled to capacity in
    each haul, you are cutting down on your transport costs.

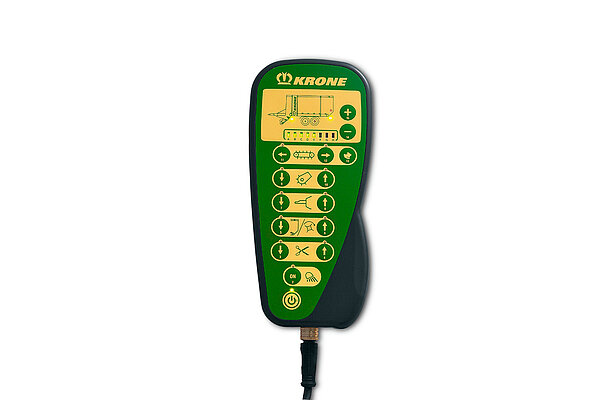

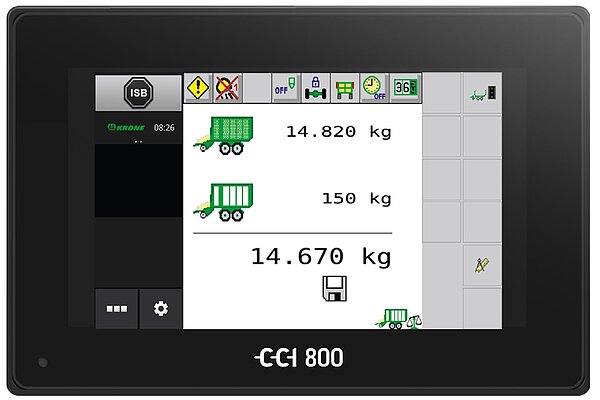

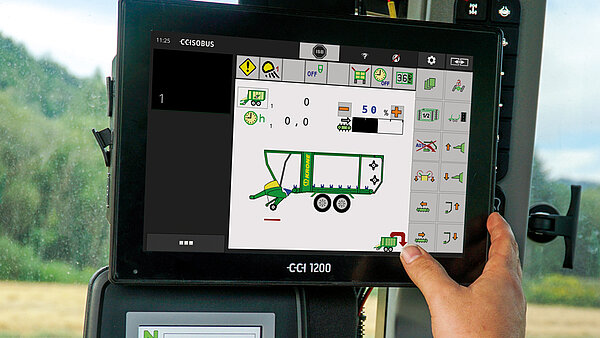

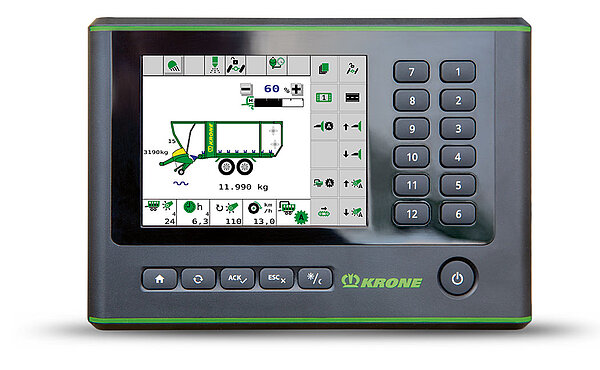

    The KRONE on-board electronic system & operating terminals
    The KRONE on-board electronic system & operating terminals
    • Clear and convenient
    • Easy and user friendly
    • ISOBUS compatible

    The KRONE on-board electronic system clearly enhances the operation of the AX forage
    wagon. Available in Medium and Comfort specification, the system is operated from
    various terminals, each catering for different applications and needs.

    Models

    AX
    AX 280 GL AX 310 GL
    Designation loading and forage wagon loading and forage wagon configure
    Capacity (m³) 28 31 configure
    Pick-up working width (m) 1.80 1.80 configure
    45 45 configure
    No. of discharge rollers - - configure
    Power requirement (kW/hp) 66 / 91 74 / 98 configure
    configure configure

    Forage wagons with capacities from 25 m³ to 31 m³
